![Daikin RXQ26MAY1 [275/344] Refrigerant pipe connection port diameters](/img/pdf.png)
Daikin RXQ26MAY1 [275/344] Refrigerant pipe connection port diameters
![Daikin RXQ26MAY1 [275/344] Refrigerant pipe connection port diameters](/views2/1707036/page275/bg113.png)
Piping Diagrams Si39-501
264 Appendix
FXMQ125MFV1/200MFV1/250MFV1

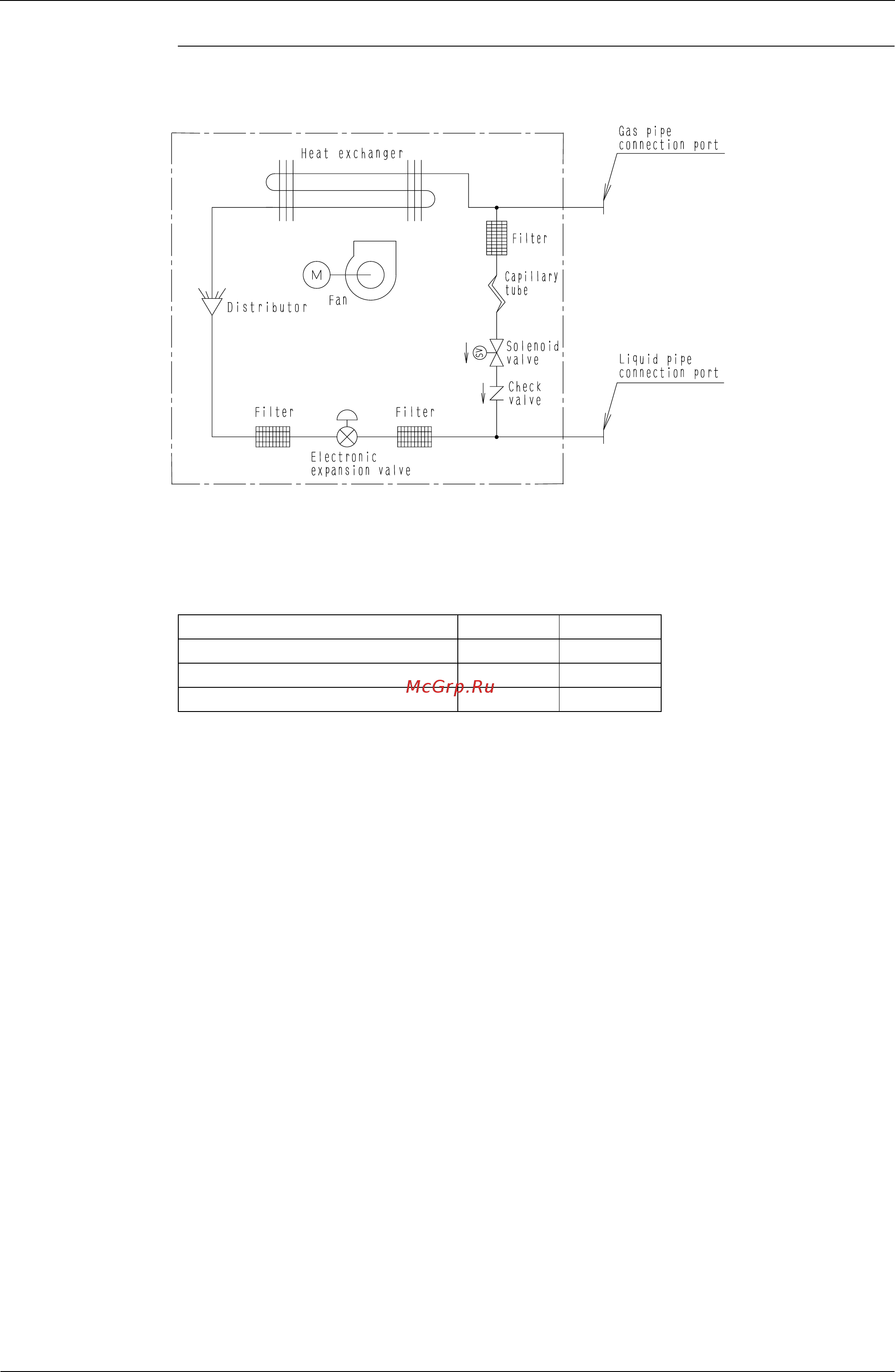

Refrigerant pipe connection port diameters
4D018650B
(mm)
Model Gas Liquid
FXMQ125MFV1 φ15.9 φ9.5
FXMQ200MFV1 φ19.1 φ9.5
FXMQ250MFV1 φ22.2 φ9.5
