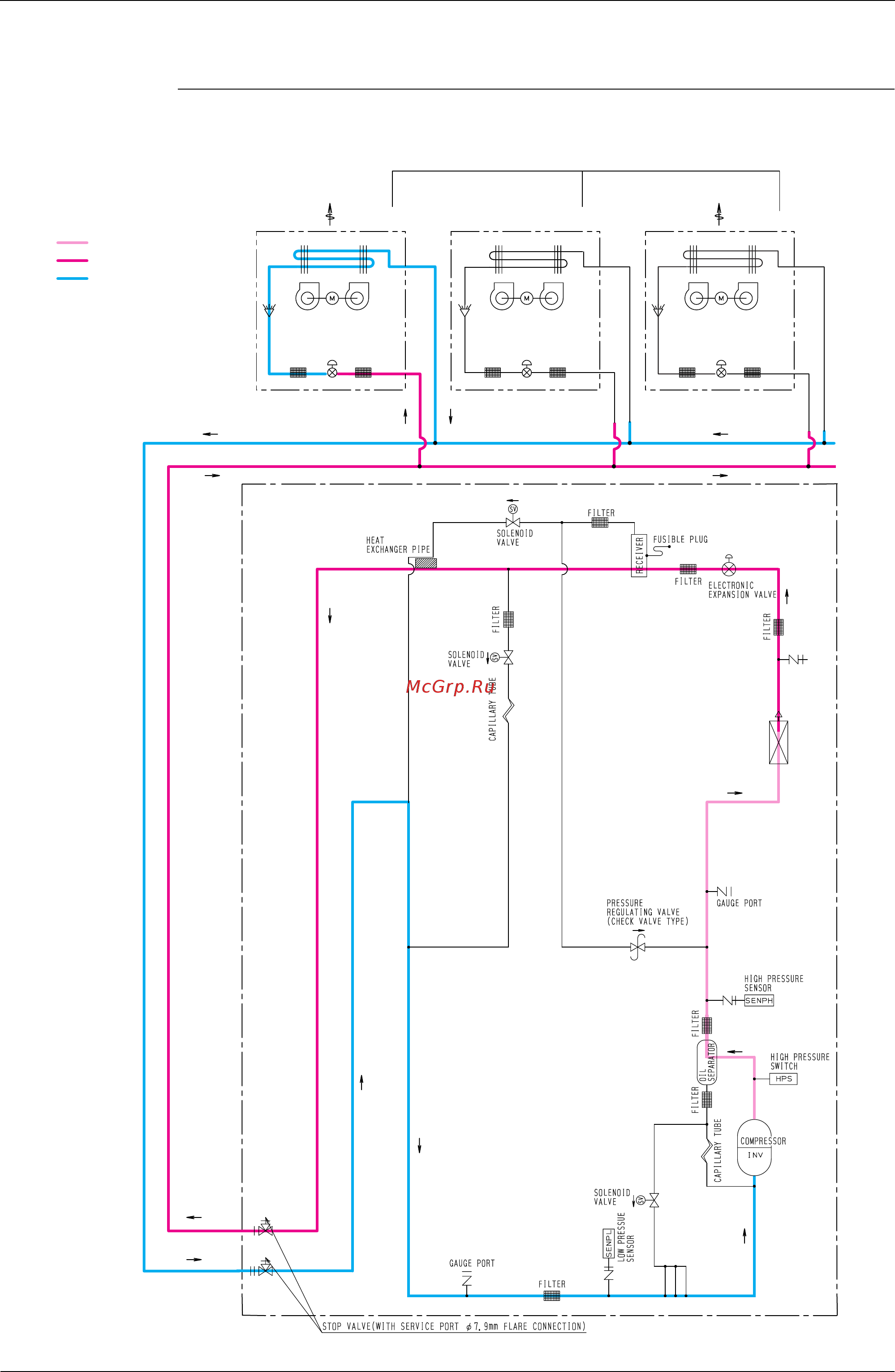

Refrigerant Flow for Each Operation Mode Si39-501
64 Refirgerant Circuit
3. Refrigerant Flow for Each Operation Mode
RXQ5MA
Cooling Operation
" ON "
FanFan
Indoor unit operation
Fan ON
Thermostat "OFF"
Indoor unit
Electronic expansion valve
EV:0pls
FilterFilter
Heat exchanger
Fan OFF
Indoor unit
" OFF "
Electronic expansion valve
EV:0pls
FilterFilter
Heat exchanger
Fan ON
Thermostat "ON"
Indoor unit
" ON "
"High temperature, high pressure gas"
"High temperature, high pressure liquid"
"Low temperature, low pressure"
Heat exchanger
Electronic expansion valve
EV:Nomal
control
FilterFilter
Fan
