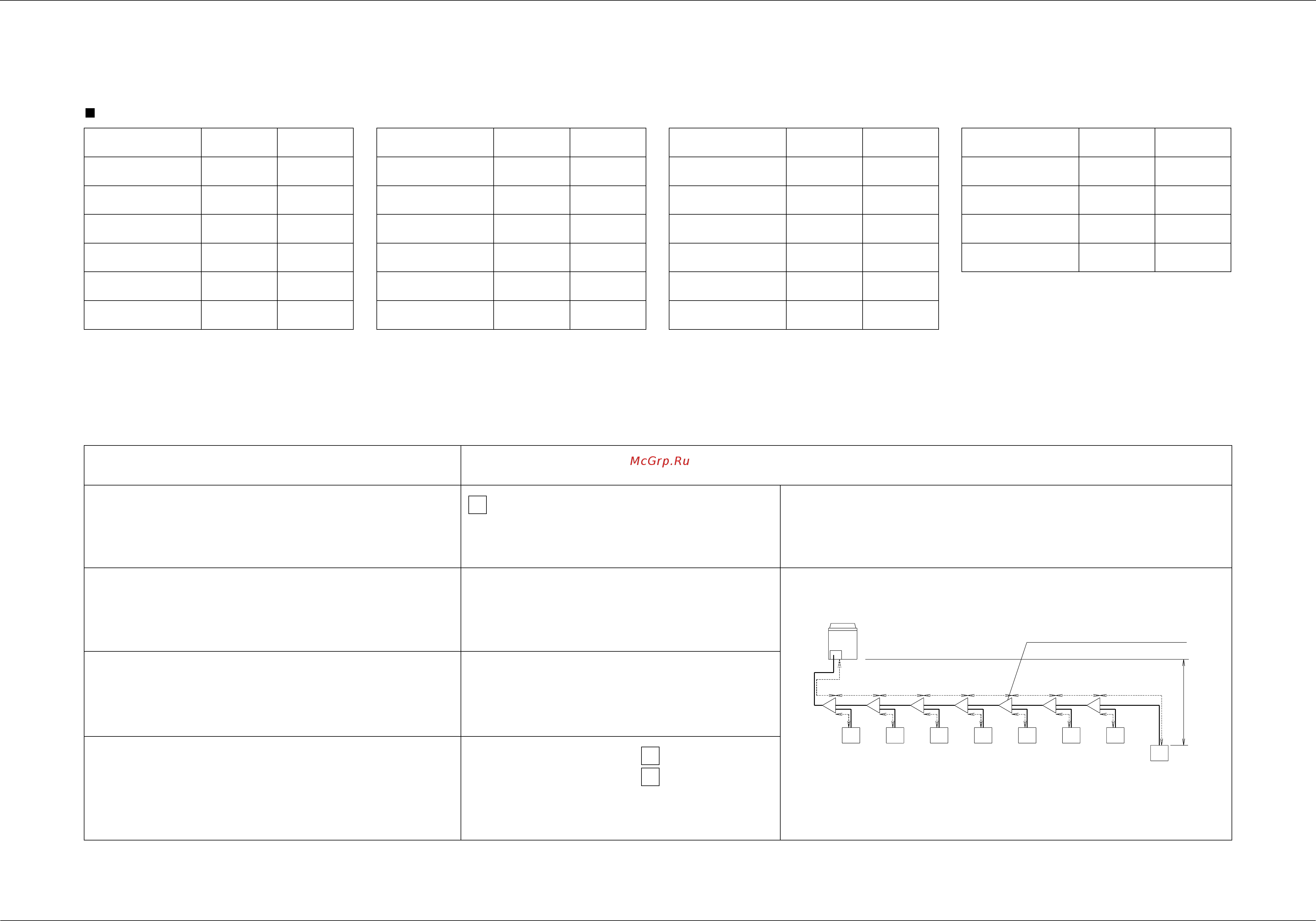

Example of Connection (R-410A Type) Si39-501
306 Appendix
∗Note 1
When overall equivalent pipe length is 90 m or more, the size of the main gas and liquid pipes (Outdoor unit-first branch kit) must be increased.
∗Note 2
Allowable length after the first refrigerant branch kit to indoor units is 40 m or less, however it can be extended up to 90 m
if all the following conditions are satisfied. (In case of " Branch with refnet joint ")
Diameter of above case
*If available on the site, use this size.
Otherwise it can not be increased.
Model
RXQ5MAY1
RXQ8MAY1
RXQ10MAY1
RXQ12MAY1
RXQ14MAY1
RXQ16MAY1
Gas
φ19.1
φ22.2
φ25.4*
φ25.4*
Not
Increased
φ31.8
Liquid
Not
Increased
φ12.7
φ12.7
φ12.7
φ15.9
φ15.9
Model
RXQ18MAY1
RXQ20MAY1
RXQ22MAY1
RXQ24MAY1
RXQ26MAY1
RXQ28MAY1
Gas
φ31.8
φ31.8
φ31.8
φ31.8
φ38.1*
φ38.1*
Liquid
φ19.1
φ19.1
φ19.1
φ19.1
φ22.2
φ22.2
Model
RXQ30MAY1
RXQ32MAY1
RXQ34MAY1
RXQ36MAY1
RXQ38MAY1
RXQ40MAY1
Gas
φ38.1*
φ38.1*
φ38.1*
φ38.1*
Not
Increased
Not
Increased
Liquid
φ22.2
φ22.2
φ22.2
φ22.2
φ22.2
φ22.2
Model
RXQ42MAY1
RXQ44MAY1
RXQ46MAY1
RXQ48MAY1
Gas
Not
Increased
Not
Increased
Not
Increased
Not
Increased
Liquid
φ22.2
φ22.2
φ22.2
φ22.2
a
ABCDEFG
bcdef
g
hi j kl mn
1234567
8
H1
P
Outdoor unit
REFNET joint (A-G)
Indoor units (1-8)
Required Conditions
1. It is necessary to increase the pipe size
between the first branch kit and the final branch
kit. (Reducers must be procured on site)
2. For calculation of Total extension length,
the actual length of above pipes must be
doubled. (except main pipe)
3. Indoor unit to the nearest branch kit
≤ 40 m
4. The difference between
[Outdoor unit to the farthest indoor unit] and
[Outdoor unit to the nearest indoor unit]
≤ 40 m
Example Drawings
8 b+c+d+e+f+g+p ≤ 90 m
increase the pipe size of b, c, d, e, f, g
a+b× 2+c× 2+d× 2+e× 2+f× 2+g× 2
+h+i+j+k+l+m+n+p ≤ 510 m
h, i, j ....... p ≤ 40 m
The farthest indoor unit 8
The nearest indoor unit 1
(a+b+c+d+e+f+g+p) - (a+h) ≤ 40 m
Increase the pipe size as follows
φ 6.4 →φ 9.5 φ12.7 →φ15.9 φ19.1 →φ22.2 φ34.9 →φ38.1
φ 9.5 →φ12.7 φ15.9 →φ19.1 φ28.6 →φ31.8
