Si39-501 Function general
Function 75

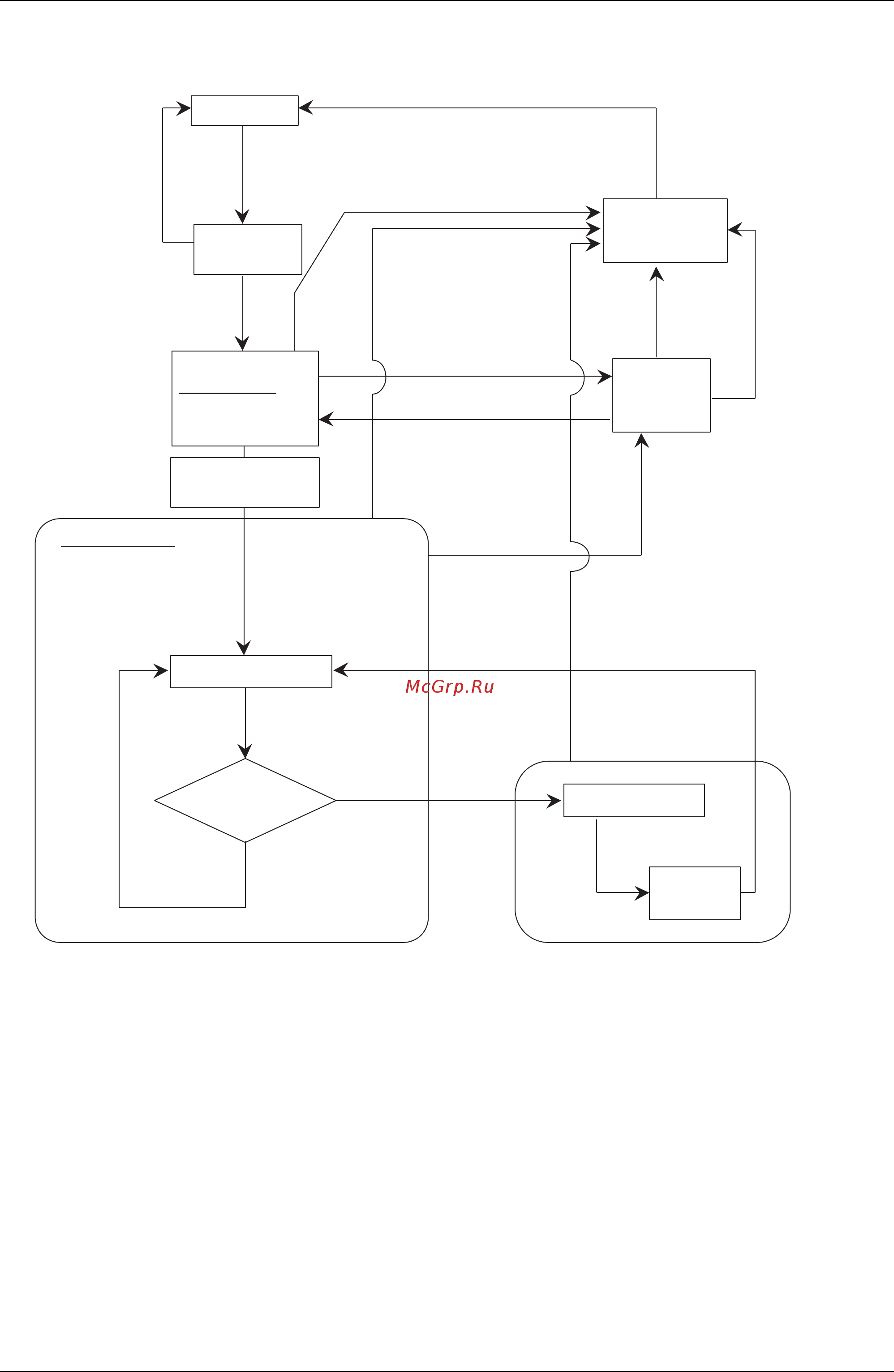

1.2 Operation Mode
Operation in
stop mode
Pressure
equalization
prior to startup
Startup control
• Cooling startup
control
Oil return IN
conditions are met.
Oil return operation
Pump-down
residual
operation
Restart standby
(Compressor stop)
Yes
No
Malfunction/Standby
Indoor unit stop or
thermostat OFF
Normal operation
• Compressor PI control
• Motorized valve PI control
• Protection control
Indoor unit thermostat ON
Cooling operation
Outdoor unit
rotation
Indoor unit thermostat ON
Indoor unit stop or
thermostat OFF
Indoor unit stop or
thermostat OFF
Malfunction/
Standby
Malfunction/
Standby
*)
In the event indoor unit stops or the thermostat
turns OFF while in oil return operation
pump-down residual operation is performed
on completion of the oil return operation.
Malfunction/Standby
Outdoor unit
rotation
