2.5 Expansion Slots

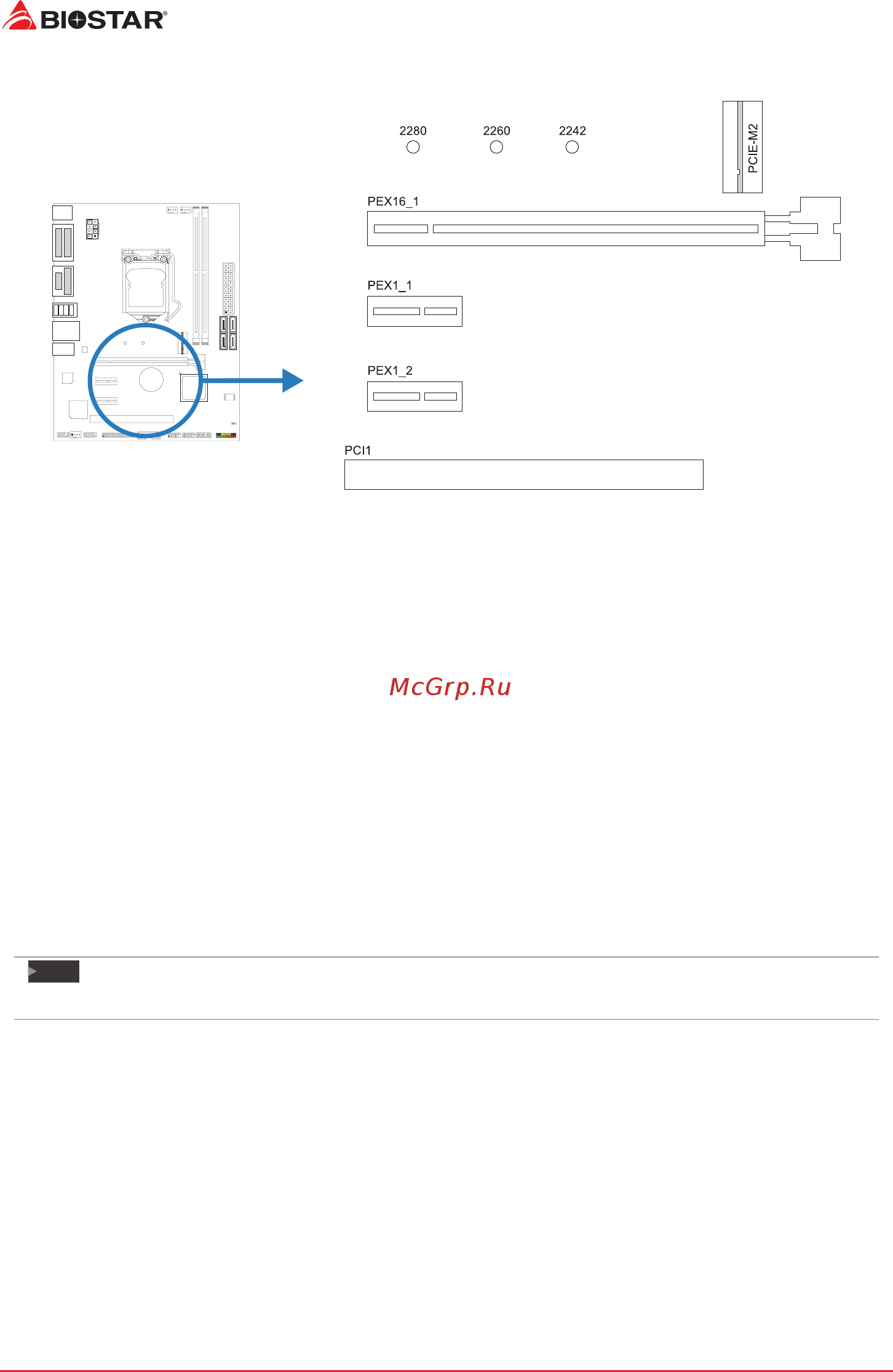

PCI1: Peripheral Component Interconnect Slots

• The PCI slots support cards used in PCs include: LAN cards, sound cards, modems, TV

tuner cards and other cards that comply with PCI standard.

PEX16_1: PCI-Express Gen3 x16 Slot

• PCI-Express 3.0 compliant.

• Theorecal maximum bandwidth using two slots simultaneously is 16GB/s for each slot,

a total of 32GB/s.

PEX1_1/ PEX1_2: PCI-Express Gen2 x1 Slots

• PCI-Express 2.0 compliant.

• Data transfer bandwidth up to 500MB/s per direcon; 1GB/s in total

PCIE-M2: M.2 (M Key) Socket

• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD

module, please place the screw and hex pillar to correct posion.

• Supports M.2 SATA III (6Gb/s) module and M.2 PCI Express module up to

Gen2 x2 (10Gb/s) - NVMe/ AHCI SSD.

Note



WhenusingSATASSDmoduleonPCIE-M2slot,theSATA_1connectorwillbedisabled.
