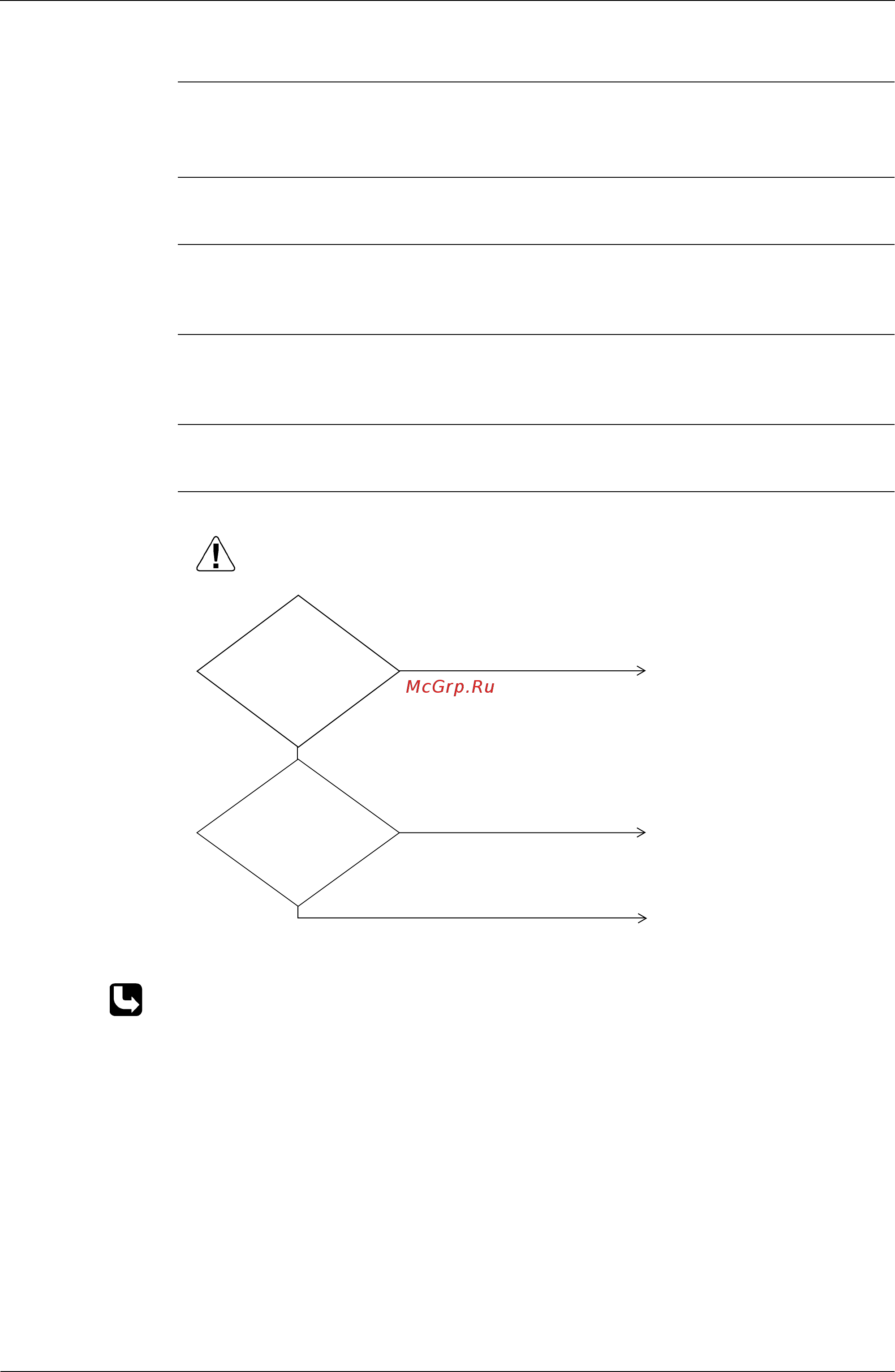

Troubleshooting by Indication on the Remote Controller Si39-302
188 Troubleshooting
2.28
“
J9
”
Malfunction of Receiver Gas Pipe Thermistor (R5T)
Remote
Controller
Display
J9
Applicable
Models
RXYQ5~48M
Method of
Malfunction
Detection
Malfunction is detected according to the temperature detected by receiver gas pipe thermistor.
Malfunction
Decision
Conditions
When the receiver gas pipe thermistor is short circuited or open.
Supposed
Causes
!
Faulty receiver gas pipe thermistor (R5T)
!
Faulty outdoor unit PC board
Troubleshooting
∗
2: Refer to thermistor resistance / temperature characteristics table on P280.
(V3075)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Is the
resistance
measured after
removing the thermistor
(R5T) from outdoor unit PC
board normal?
(3.5 kΩ to
360 kΩ)
Replace outdoor unit PC board
(A1P).
Connect thermistor and operate
unit again.
NO
NO
Replace thermistor (R5T).
YES
YES
Is
the connector
for receiver
gas pipe thermistor
connected to X37A on
outdoor unit PC
board (A1P)?
