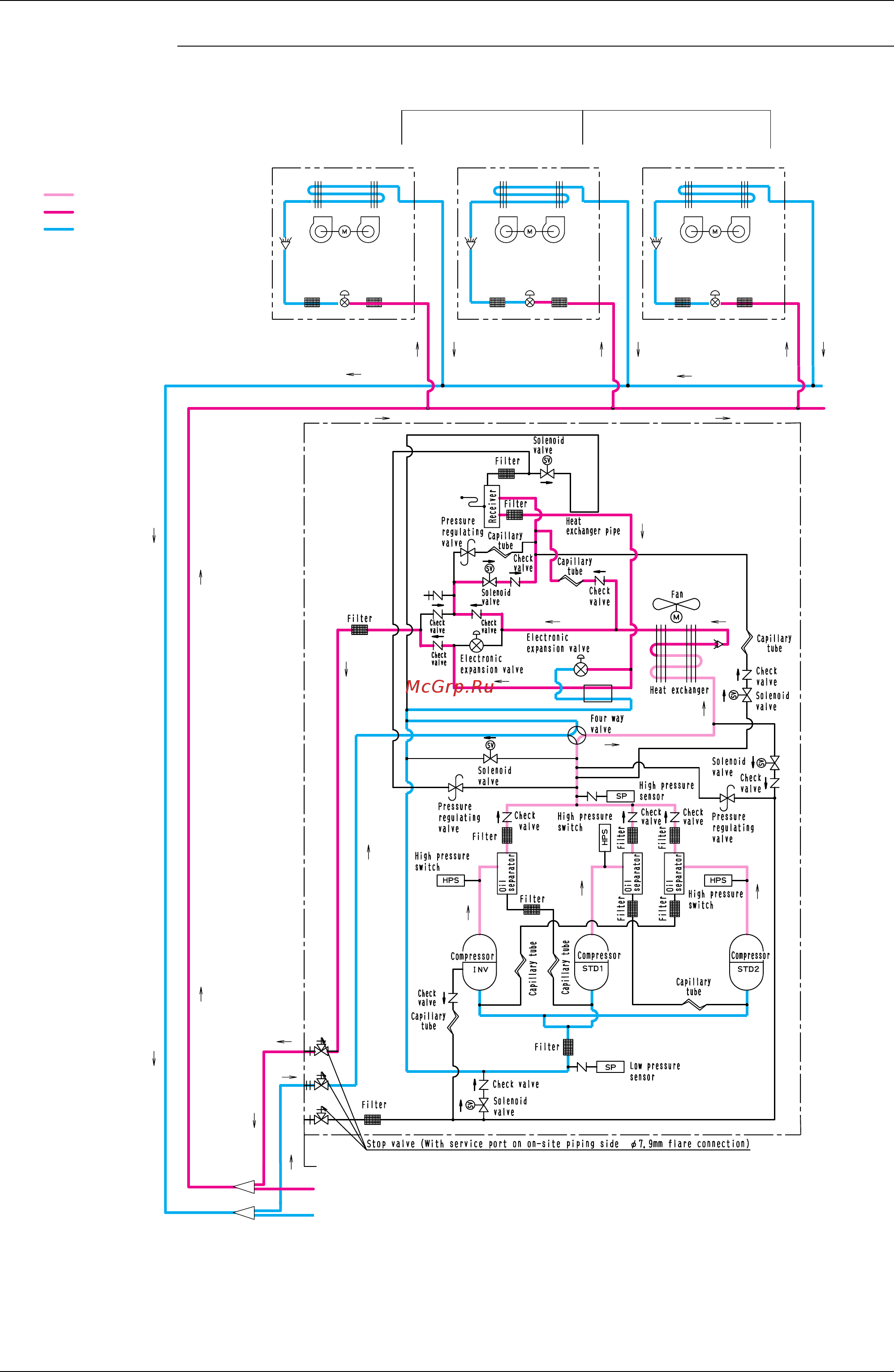

Si39-302 Refrigerant Flow for Each Operation Mode
Refirgerant Circuit 61
Heating Oil Return & Defrost Operation
4D040339A
Fan OFFFan OFF
Indoor unit
Indoor unit Indoor unit
Fan OFF
Thermostat "ON" Thermostat "OFF"
" OFF " " ON "" ON "
High temperature, high pressure gas
High temperature, high pressure liquid
Low temperature, low pressure
Indoor unit operation
Heat exchanger Heat exchanger Heat exchanger
Fan Fan Fan
Filter Filter Filter Filter Filter Filter
S
Oil equalizing pipe to other outdoor units
Liquid piping to other outdoor units
Gas piping to other outdoor units
S
S
EXV : 512 pls EXV : 512 pls EXV : 512 pls
