![Daikin REYQ48MY1B [64/312] Heating oil return defrost operation](/img/pdf.png)
Daikin REYQ48MY1B [64/312] Heating oil return defrost operation
![Daikin FXNQ32MVE [64/312] Heating oil return defrost operation](/views2/1699320/page64/bg40.png)
Si39-302 Refrigerant Flow for Each Operation Mode
Refirgerant Circuit 53

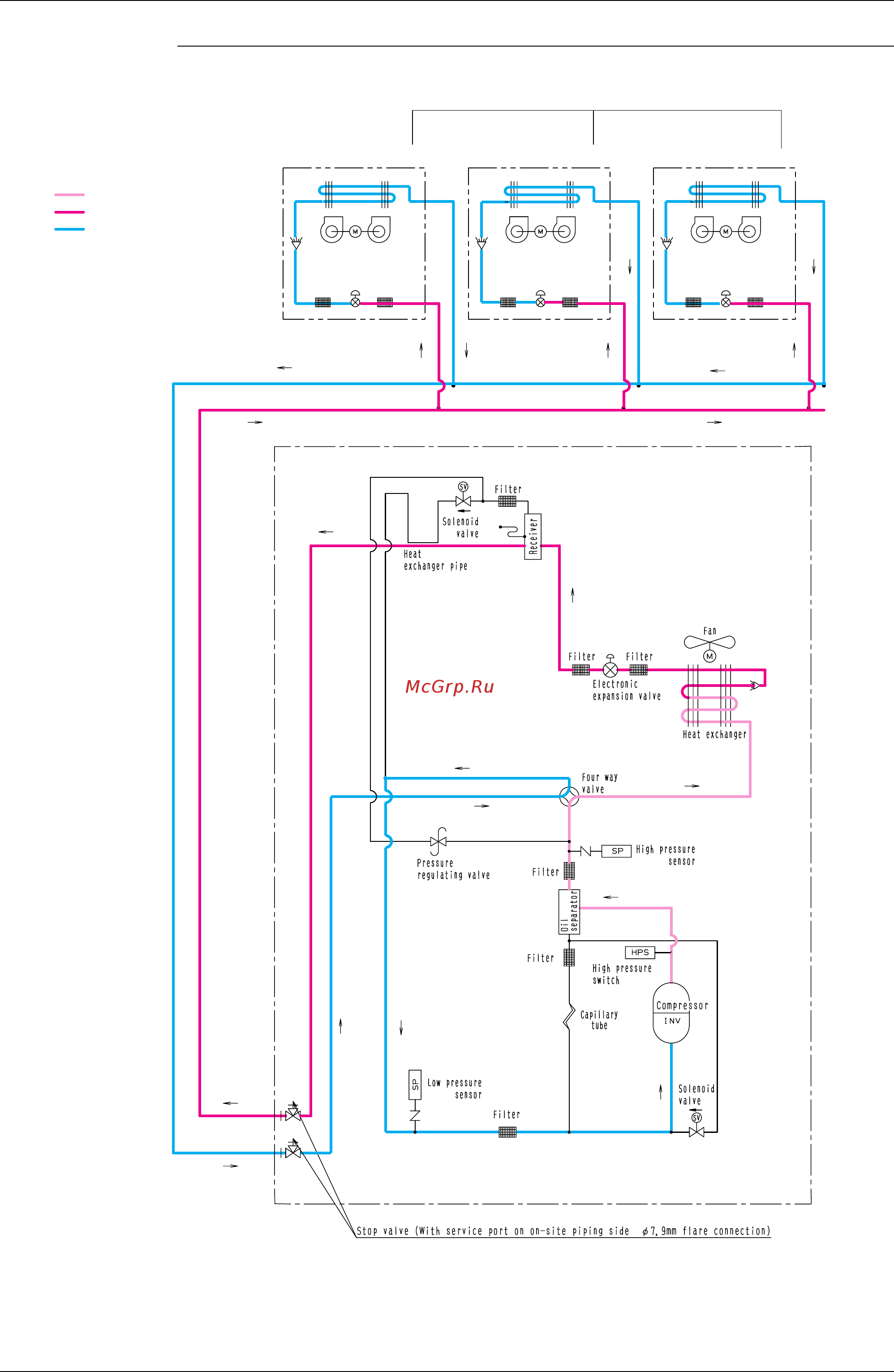

Heating Oil Return & Defrost Operation
Fan OFF
Fan OFF
Indoor unit
Indoor unit Indoor unit
Fan OFF
" OFF " " ON "" ON "
High temperature, high pressure gas
High temperature, high pressure liquid
Low temperature, low pressure
Indoor unit operation
Heat exchanger Heat exchanger Heat exchanger
Fan Fan Fan
Filter Filter Filter Filter Filter Filter
Thermostat "ON" Thermostat "OFF"
EXV : 512 pls
EXV : 512 pls EXV : 512 pls
4D040337A
