![Daikin REYQ48MY1B [70/312] Rxyq14 16m cooling operation](/img/pdf.png)
Daikin REYQ48MY1B [70/312] Rxyq14 16m cooling operation
![Daikin FXFQ40MVE [70/312] Rxyq14 16m cooling operation](/views2/1699320/page70/bg46.png)

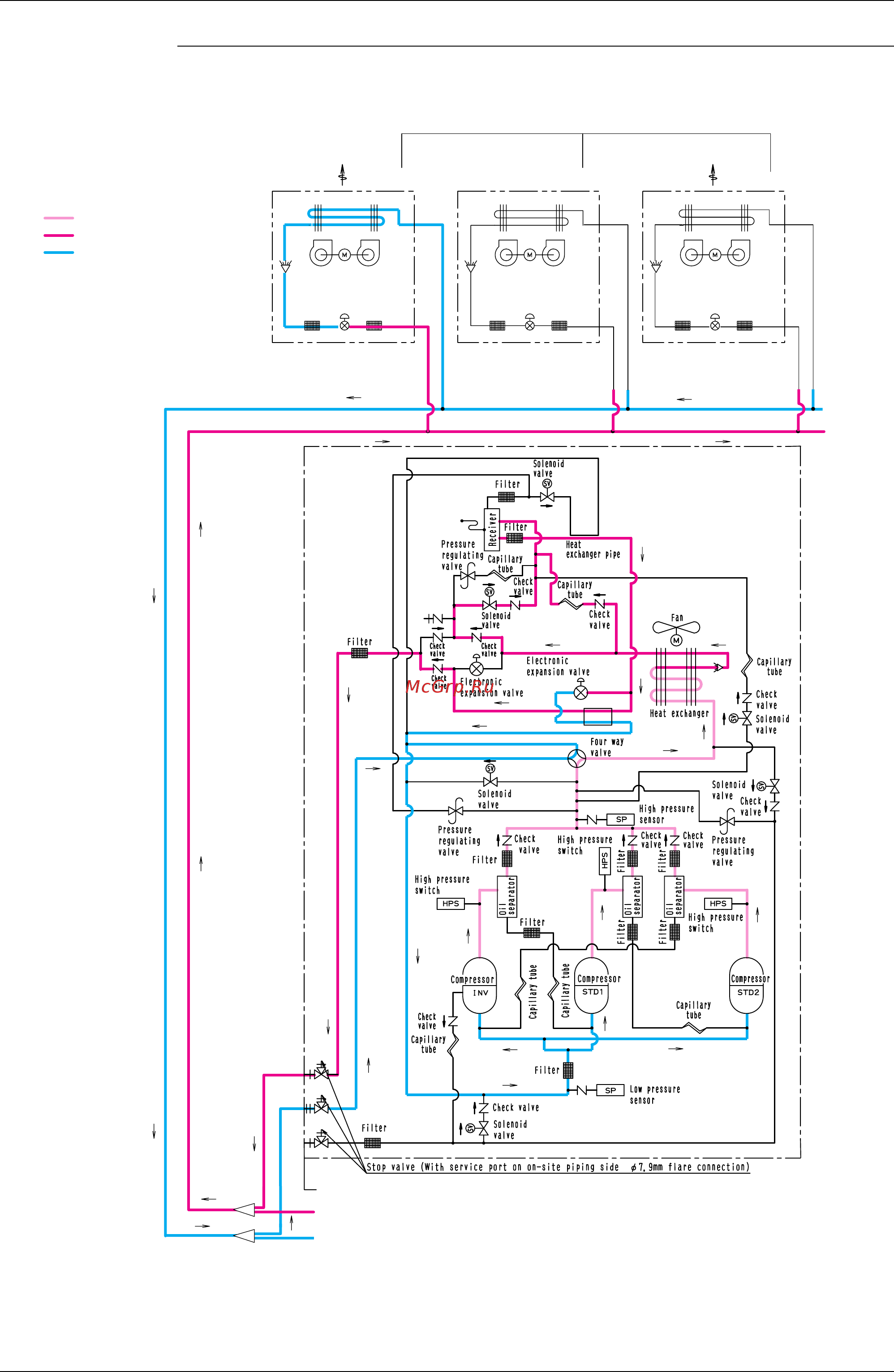

Si39-302 Refrigerant Flow for Each Operation Mode
Refirgerant Circuit 59
RXYQ14, 16M
Cooling Operation
4D040339A
Fan ON
Fan OFF
Indoor unit
Indoor unit Indoor unit
Fan ON
Thermostat "ON" Thermostat "OFF"
" OFF " " ON "" ON "
High temperature, high pressure gas
High temperature, high pressure liquid
Low temperature, low pressure
Indoor unit operation
Heat exchanger Heat exchanger Heat exchanger
Fan Fan Fan
Filter Filter Filter Filter Filter Filter
S
Oil equalizing pipe to other outdoor units
Liquid piping to other outdoor units
Gas piping to other outdoor units
S
S
Electronic
expansion
valve
Electronic
expansion
valve
Electronic
expansion
valve
