K8M800-M7A

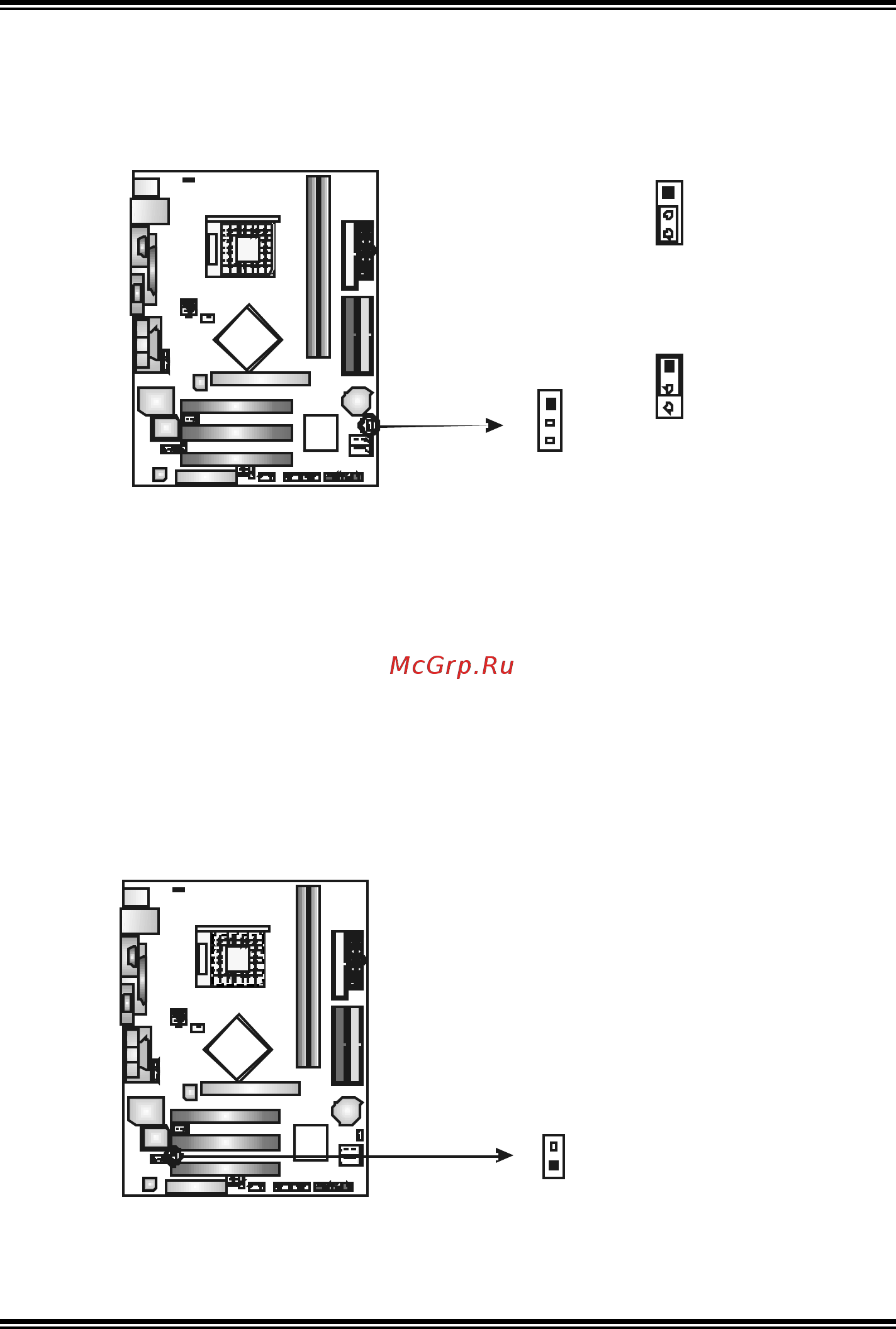

JCMOS1: Clear CMOS Header

By placing the jumper on pin2-3, it allows user to restore the BIOS saf e setting

and the CMOS data, please carefully f ollow the procedures to avoid damaging

the motherboard.

Pin 1-2 Close:

Normal Operation (default).

Pin 2-3 Close:

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remov e AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wait for five seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset y our desired password or clear the CMOS data.

JCI1: Chassis O pen Header

This connector allows system to monitor PC case open status. If the signal has

been triggered, it will record to the CMOS and show the message on next

boot-up.

Assignment

1 Case open signal

2 Ground
