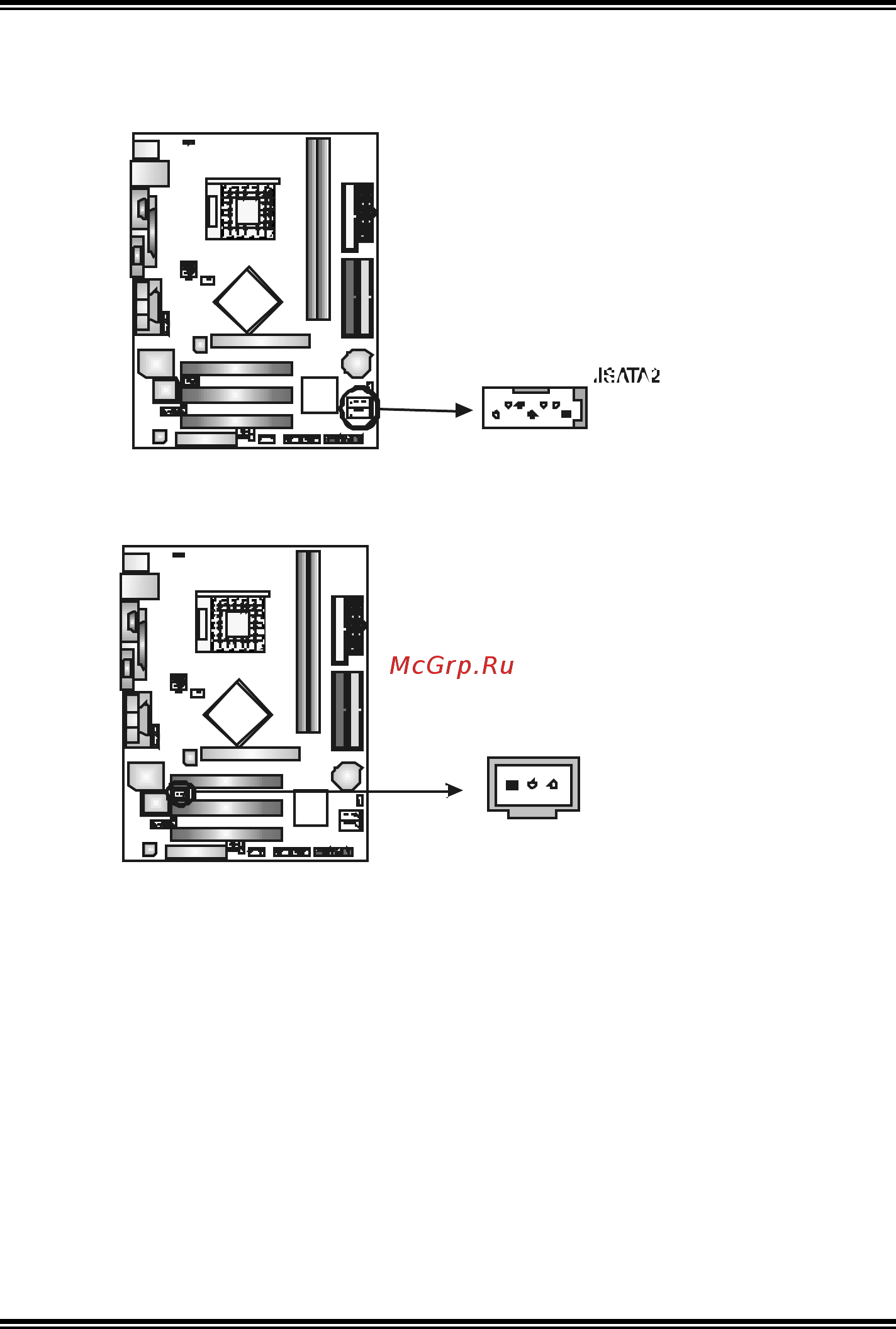

JSATA1~JSATA2: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 2 channels SATA interface,

it satisfies the SATA 1.0 spec and with transfer rate of 1.5GB/s.

Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

JSATA1

714

7 Ground

JSPDIF_O UT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V

2 SPDIF_OUT

3 Ground
