K8M800-M7A BIOS Setup
34
7 PnP/PCI Configurations
This section describes configuring the PCI bus system. PCI, or Personal Computer
Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed
of the CPU itself uses when communicating with its own special components. This section
covers some very technical items and it is strongly recommended that only experienced
users should make any changes to the default settings.

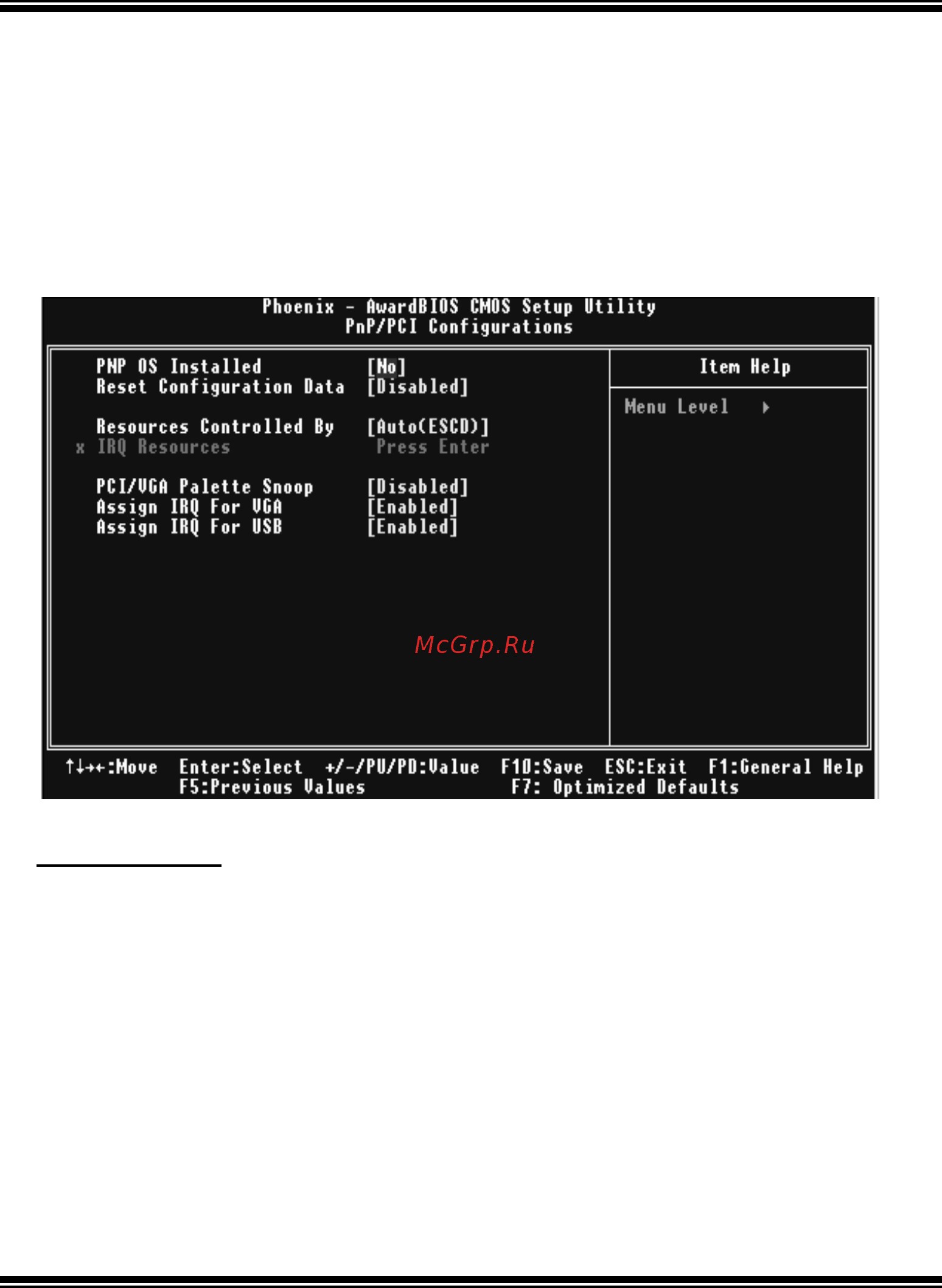

Figure 7: PnP/PCI Configurations
PNP OS Installed
When s et to Y E S, BIO S wi ll on ly i ni ti alize th e P nP cards us ed for t h e b oo t s equ en ce
(VGA, IDE, SCSI). The rest of the cards will be initialized by the PnP operating system
like Window™ 95. When set to NO, BIOS will initialize all the PnP cards. For non-PnP
operating systems (DOS, Netware™), this option must set to NO.
The Choices: No (default), Yes.
