K8M800-M7A BIOS Setup

8 PC Health Status

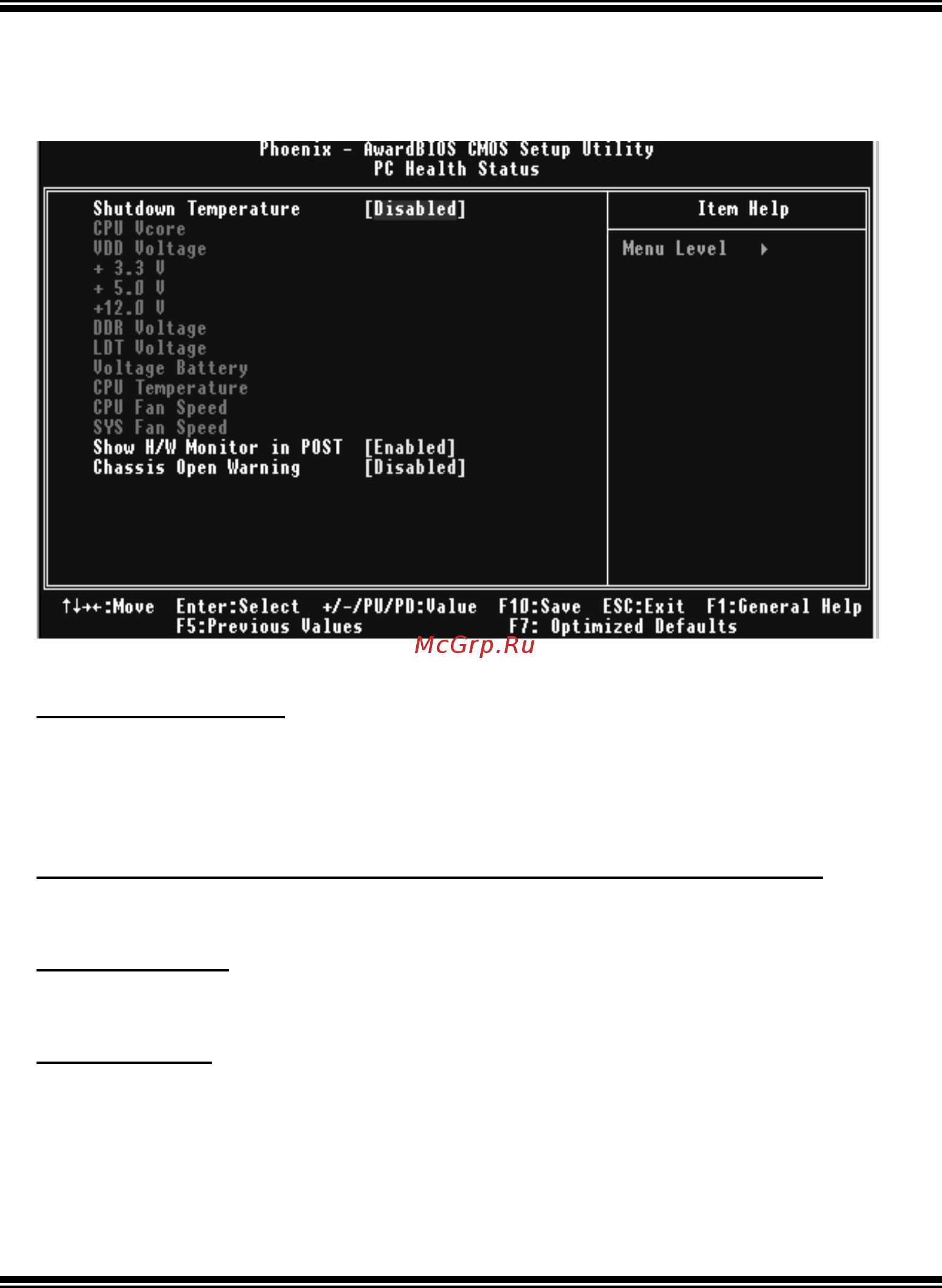

 Figure 8: PC Health Status

Shutdown Temperature

This item allows you to set up the CPU shutdown Temperature. This item only effective

under Windows 98 ACPI mode.

The Choices: Disabled (default) , 60℃/ 140℉ , 65℃/ 149℉ , 70℃/ 158℉ .

CPU Vcore/ 3.3V/ +5.0V/ +12V/DDR Voltage/ LDT Voltage/Voltage Battery

Detect the system’s voltage and battery status automatically.

CPU Temperature

Show you the CPU temperature.

CPU FAN Speed

This field displays the CPU FAN speed.
