K8M800-M7A BIOS Setup

Cache Setup

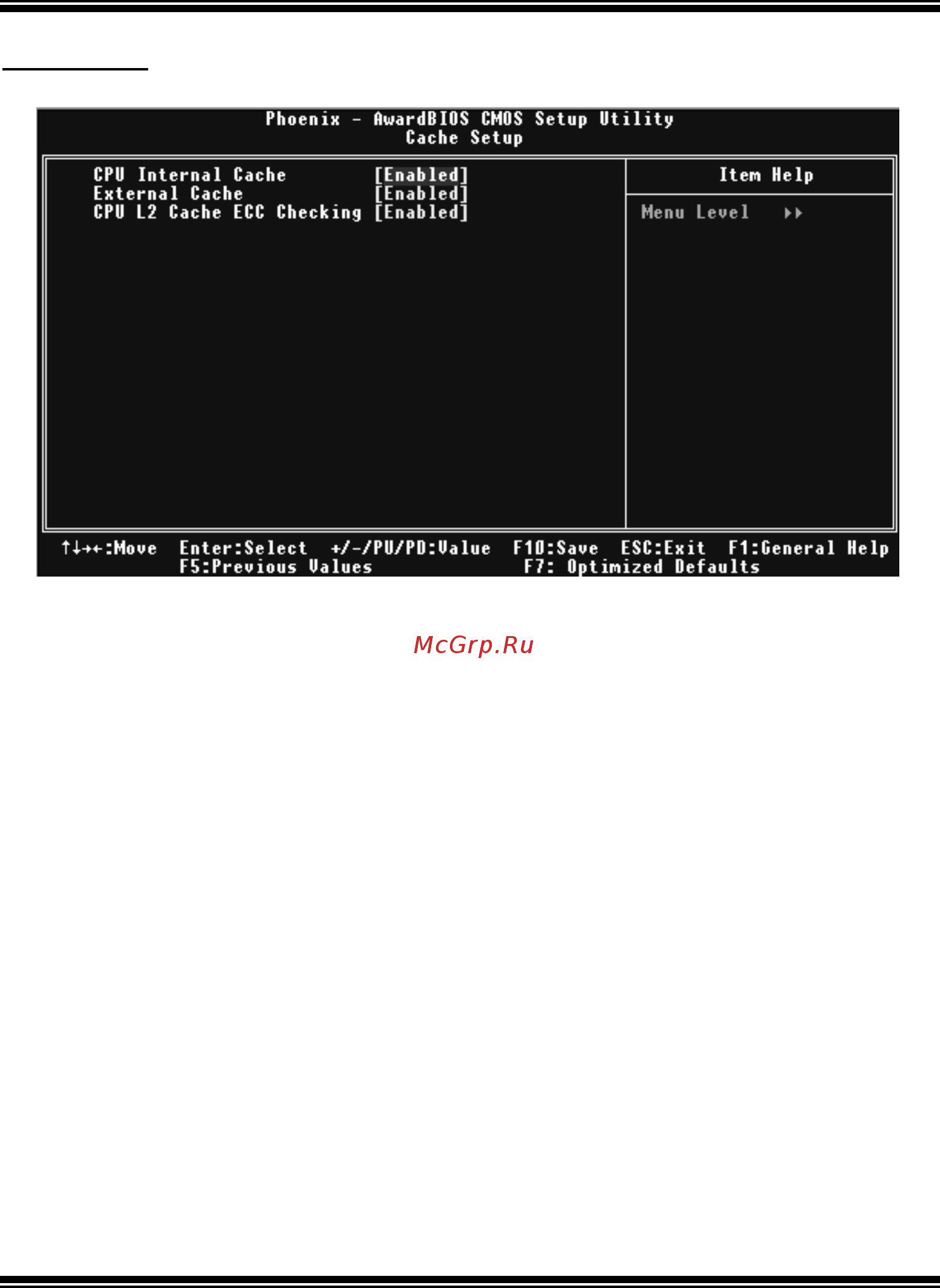

 Figu re 3.3: Cache Setup

CPU Internal Cache

Depending on the CPU/chipset in use, you may be able to increase memory

access time with this option.

Enabled (default) Enable cache.

Disabled Disable cache.

External Cache

This option enables or disables “ Level 2” secondary cache on the CP U, which

may improve performance.

Enabled (default) Enable cache.

Disabled Disable cache.

CPU L2 Cache ECC Checking

This item allows you to enable/disable CPU L2 Cache ECC Checking.

The Choices: Enabled (default), Disabled.
