K8M800-M7A BIOS Setup

VIA OnChip PCI Device

If you highlight the literal “Press Enter” next to the “ VIA OnChip PCI Device” label and then

press the enter key, it will take you a submenu with the following options:



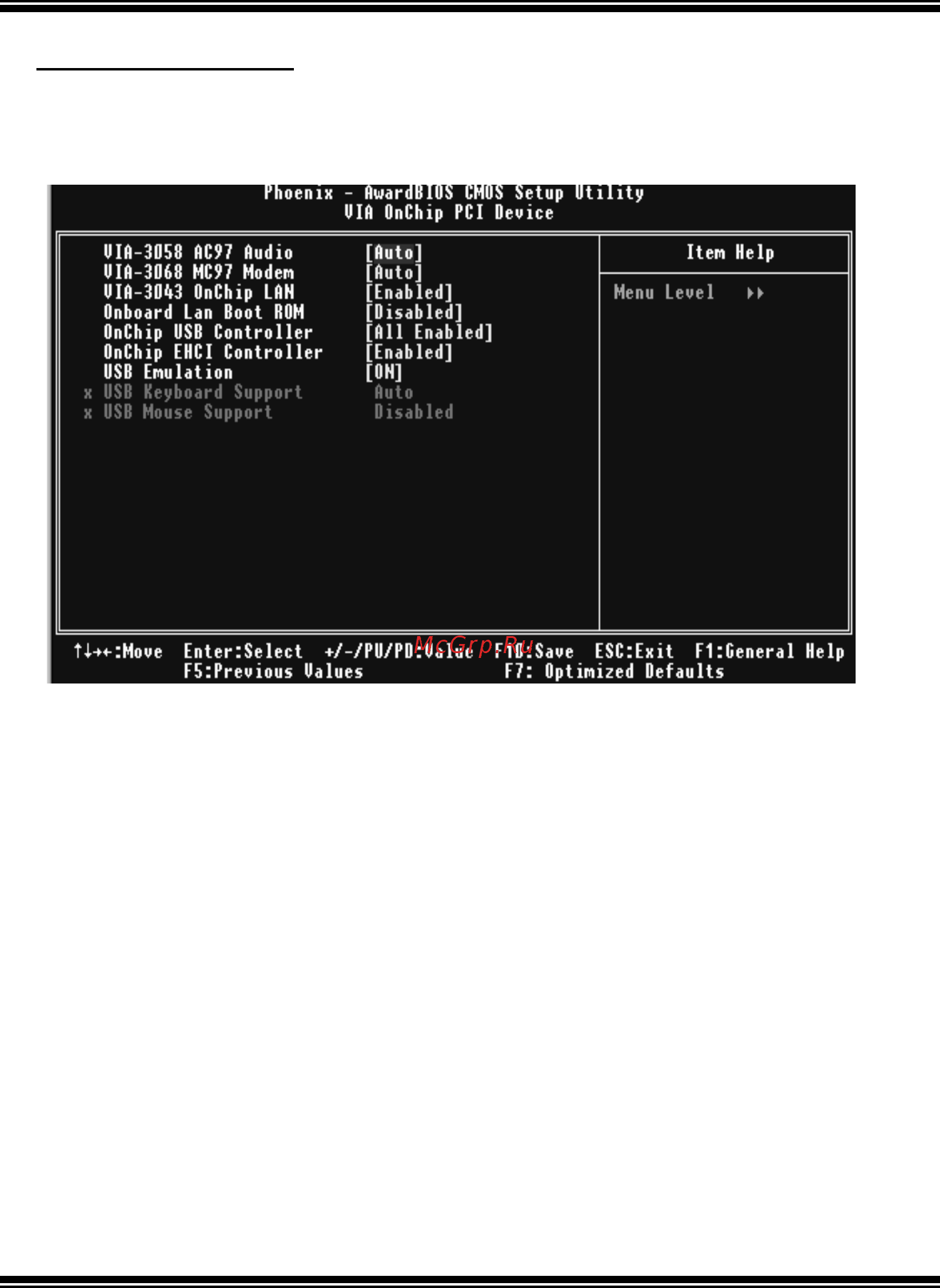

Figure 5.2: VIA OnChip PCI Device

VIA-3058 AC97 Audio

Thi s op tion al lows you to con t ro l the on bo ard AC97 au dio .

The Choices: Auto (default), Disabled.

VIA-3068 MC97 Modem

Thi s op tion al lows you to con t ro l the on bo ard MC97 Mo dem

The Choices: Auto (default), Disabled.

VIA-3043 MC97 Onchip LAN

Thi s op tion al lows you to con t ro l the on bo ard LAN

The Choices: Enabled (default), Disabled.

Onboard Lan Boot ROM

Decide whether to invoke the boot ROM of the onboard LAN chip.

The Choices: Enabled, Disabled (default).
