K8M800-M7A

6. About Panel

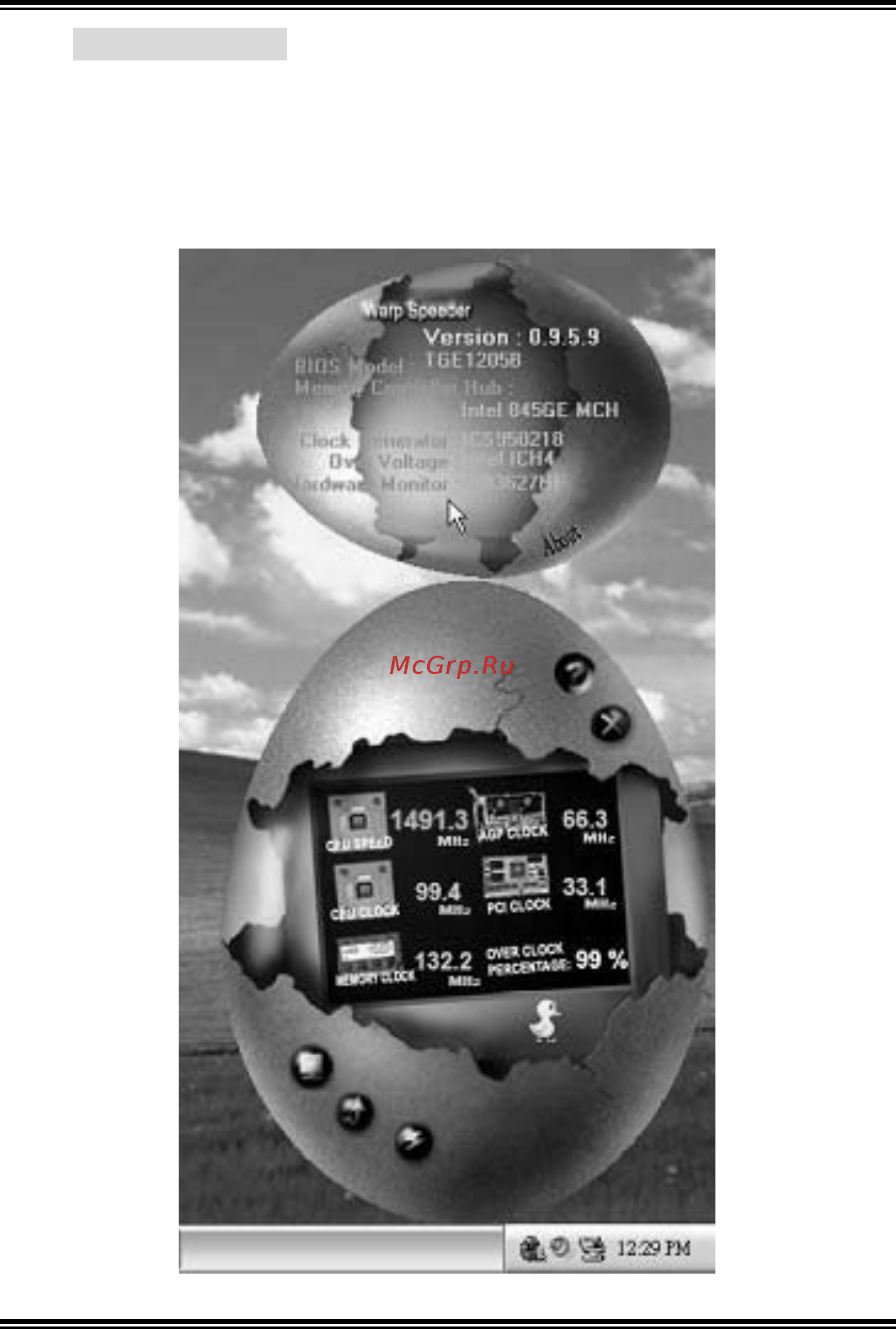

Click the “about” button in Main Panel, the button will be highlighted

and the About Panel will slide out to up as the following figure.

In this panel, you can get model name and detail information in hints

of all the chipset that are related to overclocking. You can also get

the mainboard’s BIOS model and the Version number of

[WarpSpeeder™] utility.
