K8M800-M7A BIOS Setup
22
VIA OnChip IDE Device
If you highlight the literal “Press Enter” next to the “ VIA OnChip IDE Device” label and then
press the enter key, it will take you a submenu with the following options:

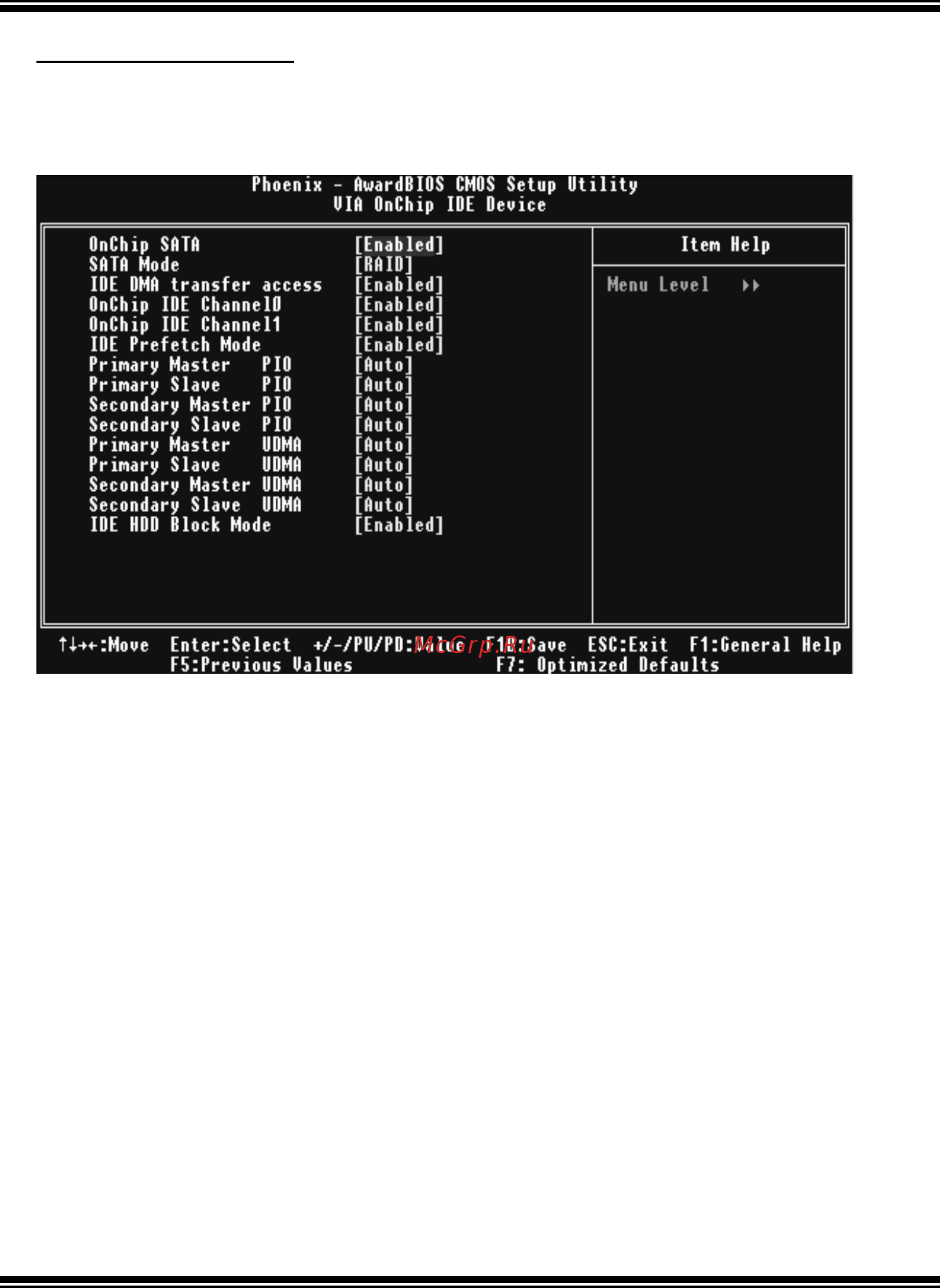

Figure 5.1: VIA OnChip IDE Device
OnChip SATA
Thi s op ti on al lo ws yo u to en abl e the on chi p Serial A TA .
The Choices: Enabled (default), Disabled.
SATA Mode
Thi s op ti on al lo ws yo u to sel ect SA TA Mo d e.
The Choices: IDE, RAID (default).
IDE DMA Transfer Access
This option allows you to select IDE DMA Transfer Access.
The Choices: Enabled (default), Disabled.
OnChip IDE Channel 0/1
The motherboard chipset contains a P CI IDE interface with support for
two IDE channels. Select “ Enabled” to activate the first and/or second IDE
interface. Select “Disabled” to deactivate an interface if you are going to install a
primary and/or secondary add-in IDE interface.
The Choices: Enabled (default), Disabled.
