Biostar K8M800-M7A [8/71] K8m800 m7a

K8M800-M7A

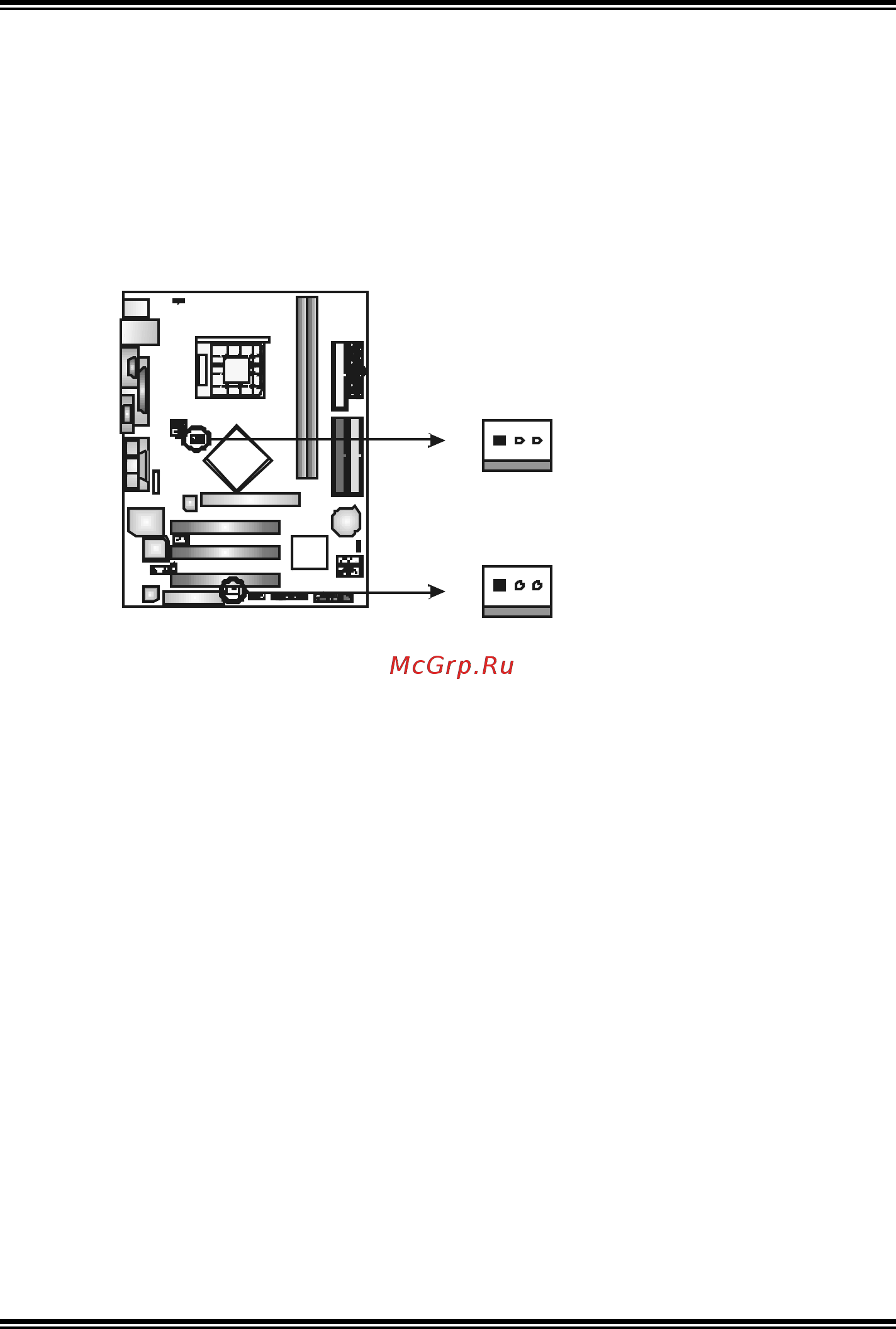

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different according to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

JCFAN1: CPU Fan Header

JSFAN1: System Fan Header

Assignment

1 Ground

2 +12V

JSFAN1

JCFAN1

3 FAN RPM rate

sense

Note:

The JCFAN1 and JSFAN1 s upport 3-pin head c onnect or. When c onnecti ng with wires

onto connec tors, pleas e note that the red wire is the positive and s hould be connect ed to

pin#2, and the bl ac k wire is Ground and s hould be c onnect ed to GND.
