Biostar K8M800-M7A [59/71] K8m800 m7a bios setup

K8M800-M7A BIOS Setup

6 Power Management Setup

The Power Management Setup Menu allows you to configure your system to utilize

energy conservation and power up/power down features.



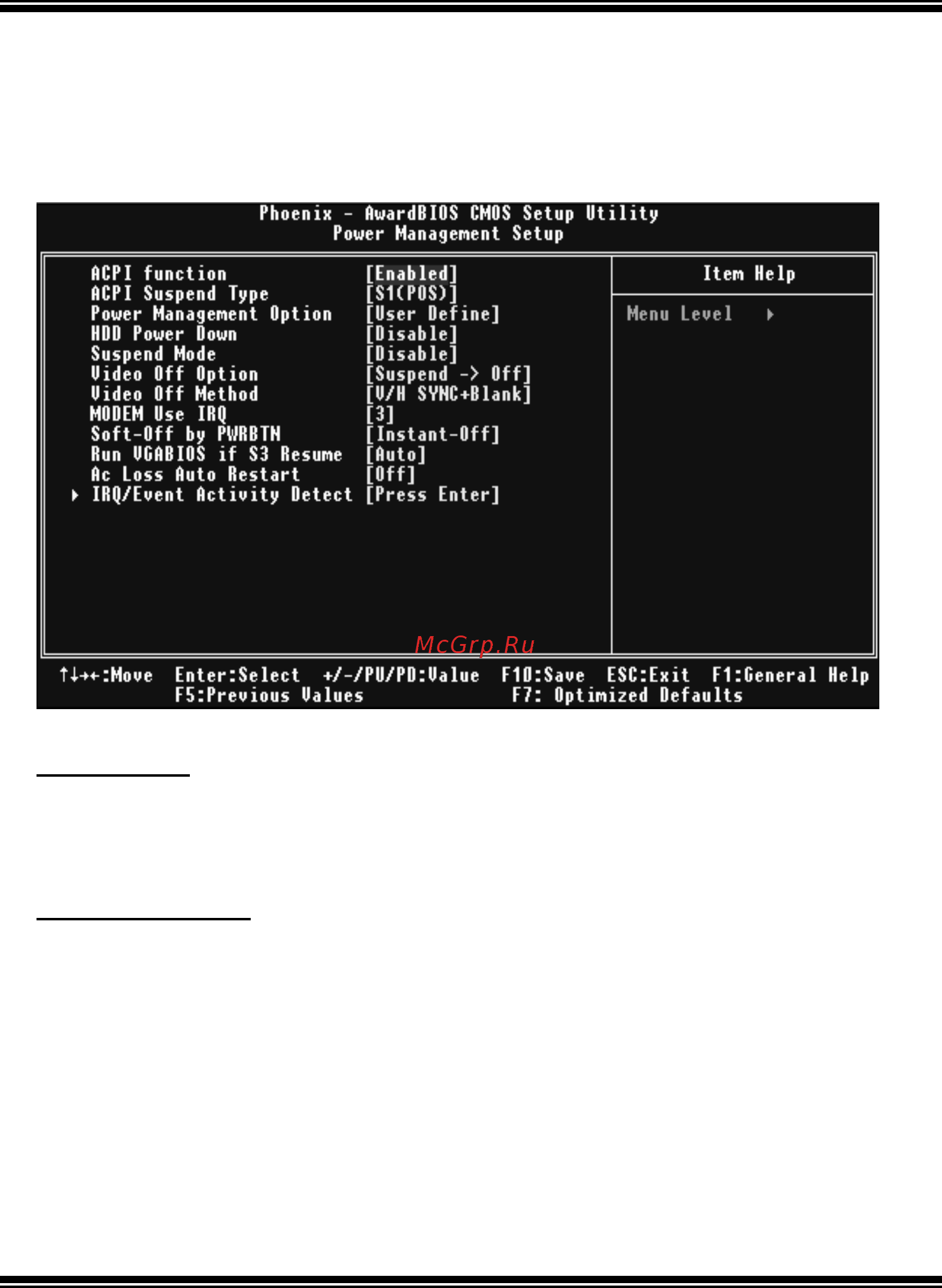

Figure 6: Power Managem ent Setup

ACPI function

This item displays the status of the Advanced Configuration and Power Management

(ACPI).

The Choices: Enabled (default), Disabled.

ACPI Suspend Type

The item allows you to select the suspend type under the ACPI operating system.

The Choices: S1 (POS) (default) Power on Suspend

S3 (STR) Suspend to RAM

S1+S3 POS+STR
