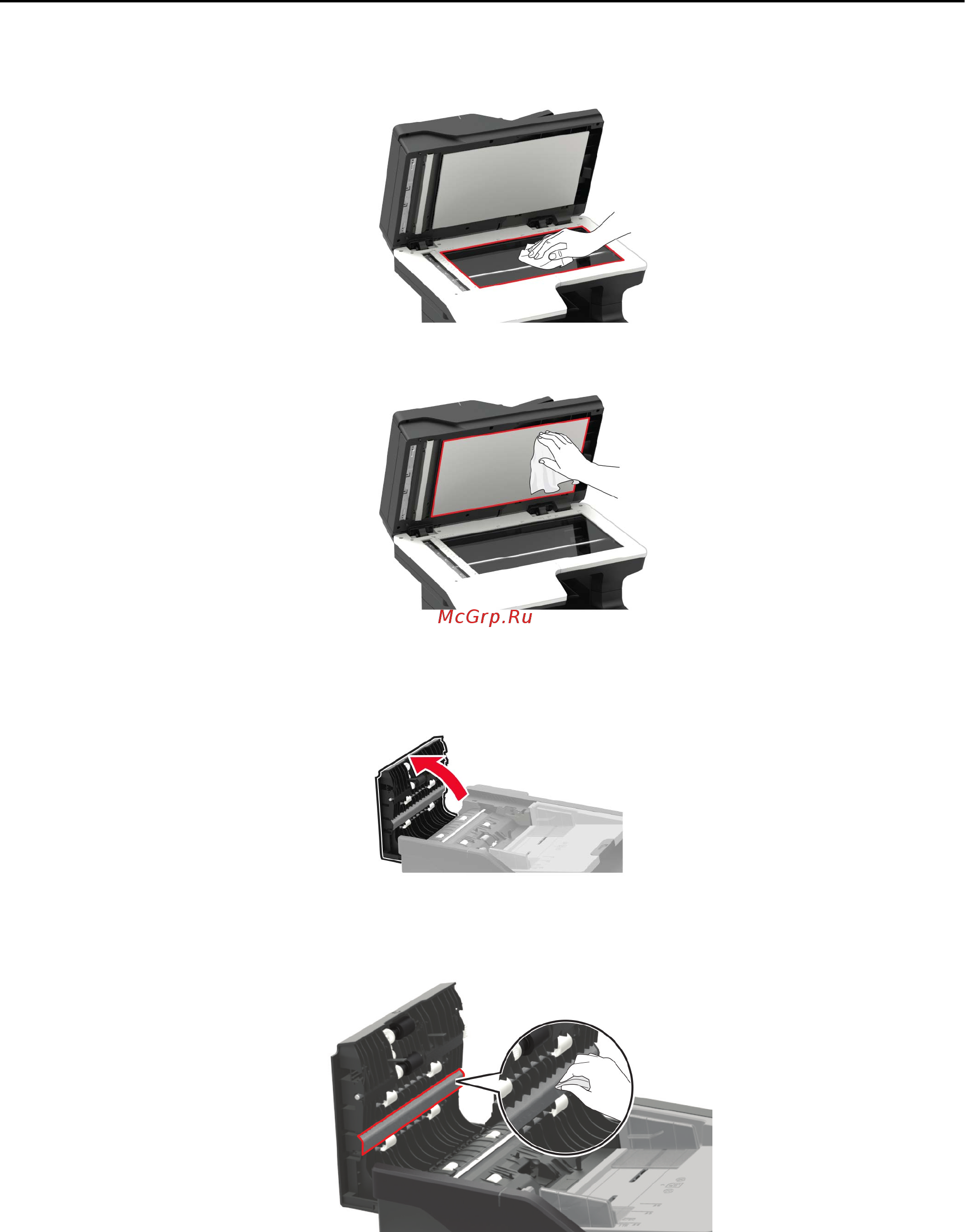

• Scanner glass
• Scanner glass pad
3 Close the scanner cover.
4 Open the ADF cover.
5 Using a damp, soft, lint-free cloth, wipe the following areas:
• ADF glass pad in the ADF cover
Maintaining the printer 137
