Konica Minolta BizHub 4422 [21/227] Loading the multipurpose feeder
![Konica Minolta BizHub 4422 [21/227] Loading the multipurpose feeder](/views2/1712903/page21/bg15.png)

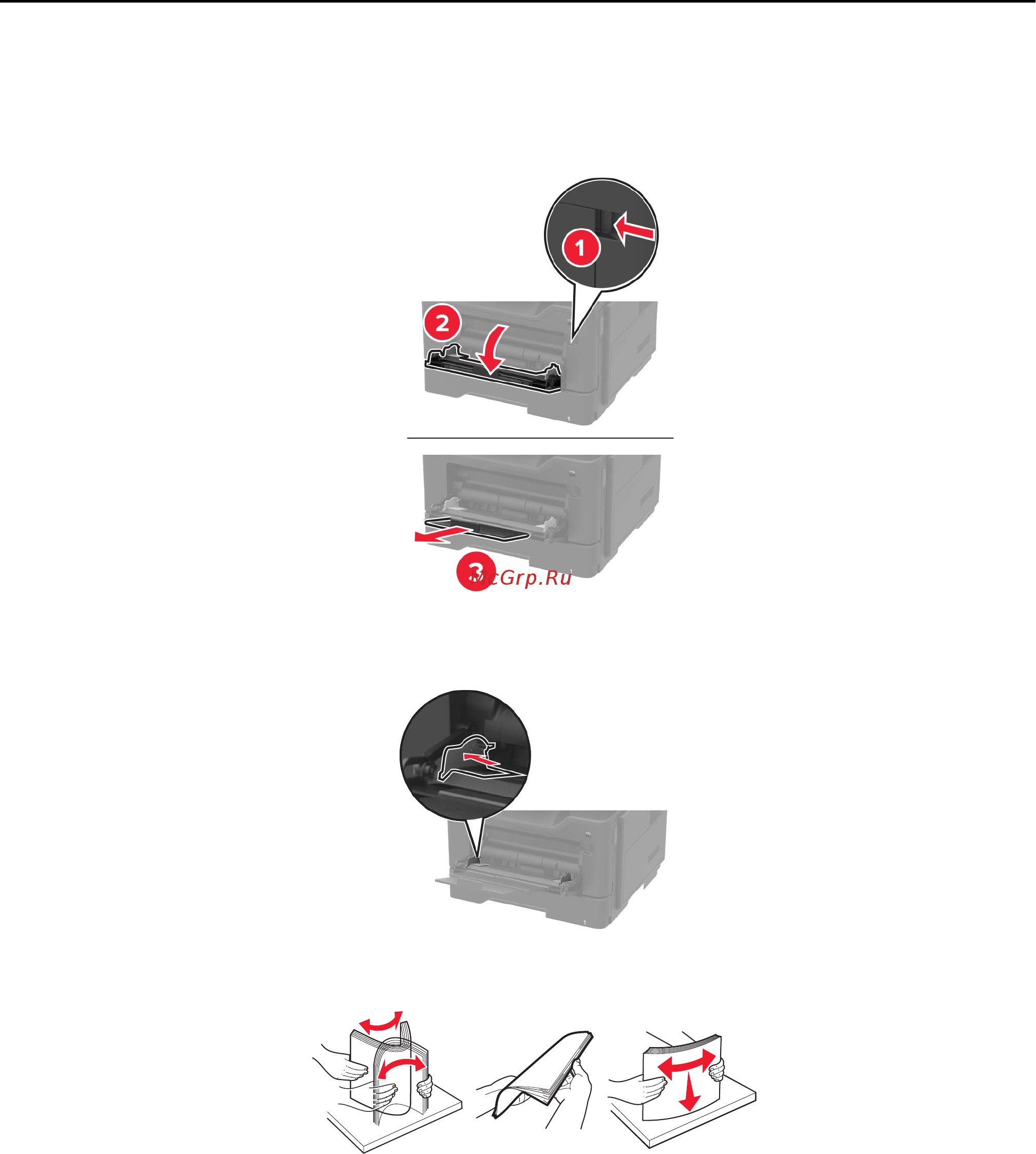

Loading the multipurpose feeder
1 Open the multipurpose feeder.
2 Adjust the guide to match the size of the paper that you are loading.
3 Flex, fan, and align the paper edges before loading.
4 Load paper with the printable side faceup.
Notes:
• Load letterhead faceup with the top edge of the sheet toward the front of the tray for one‑sided
printing.
• Load letterhead facedown with the bottom edge of the sheet toward the front of the tray for
two‑sided printing.
• Load envelopes with the
flap
facedown on the left side.
Loading paper and specialty media 21
