Konica Minolta BizHub 4422 [158/227] Paper jam in the rear door
![Konica Minolta BizHub 4422 [158/227] Paper jam in the rear door](/views2/1712903/page158/bg9e.png)

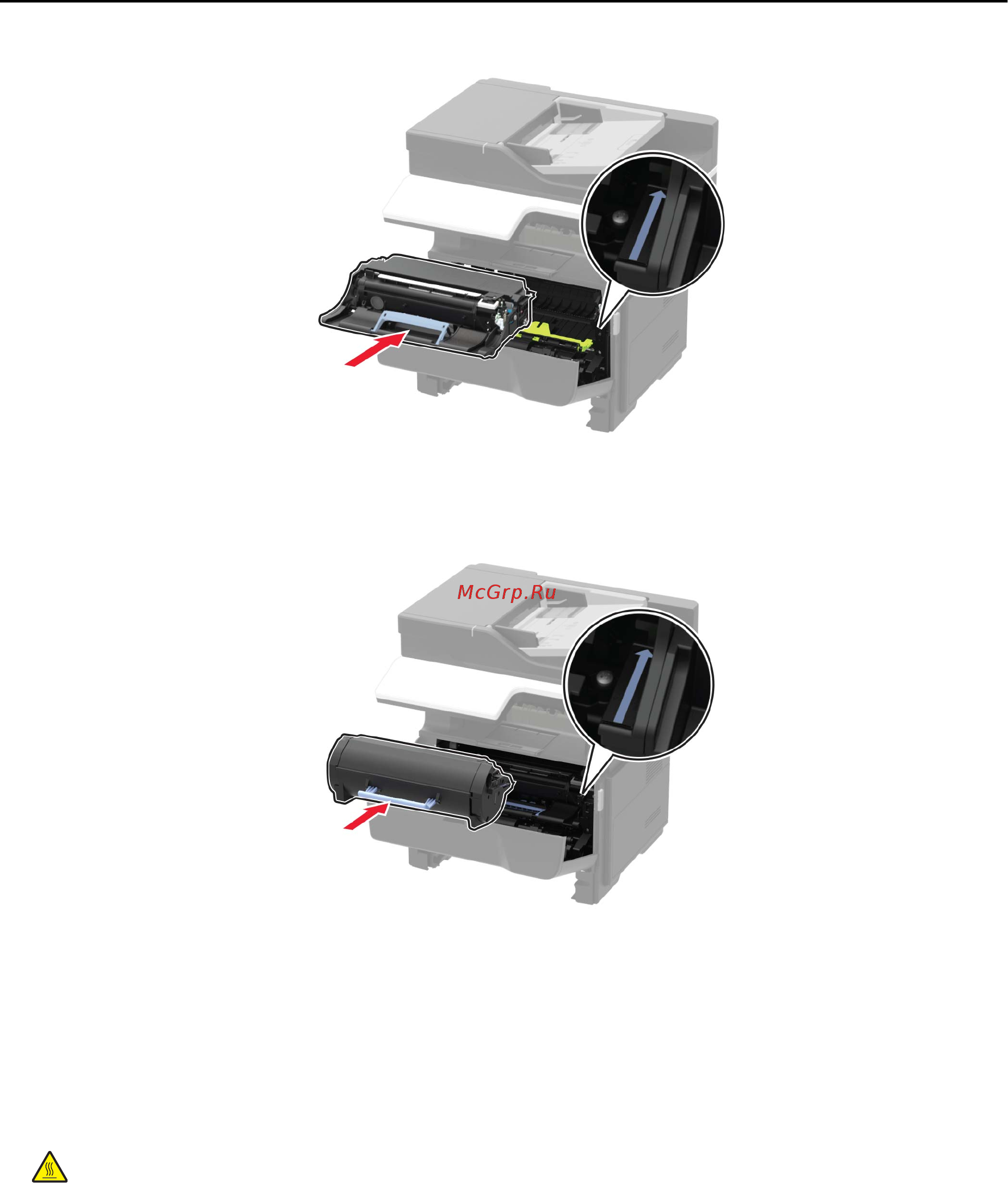

7 Insert the toner cartridge.
Note: Use the arrows inside the printer as guides.
8 Close the front door.
9 Insert the tray.
Paper jam in the rear door
1 Open the rear door.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a
hot component, allow the surface to cool before touching it.
Clearing jams 158
