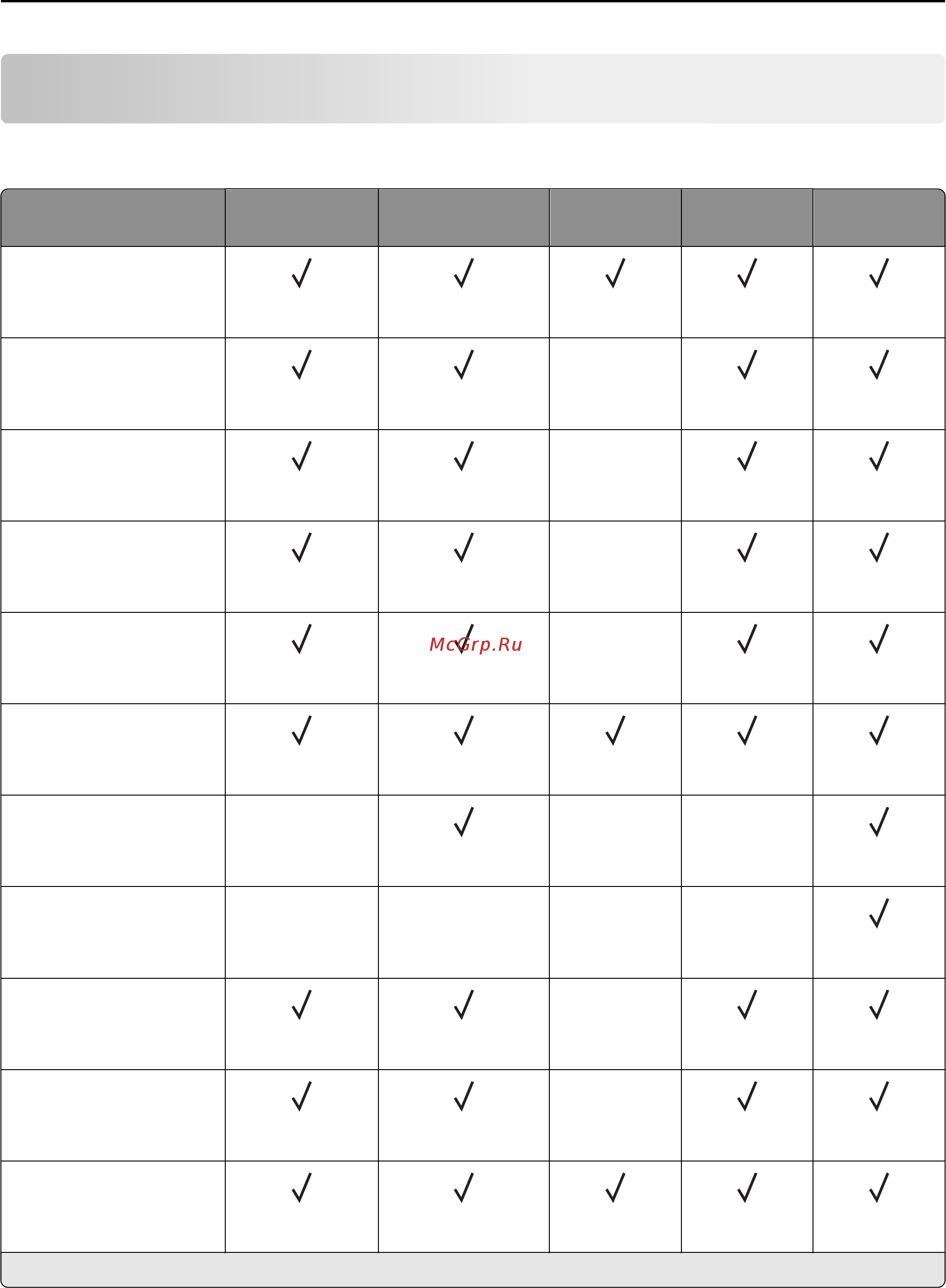

Supported paper
Supported paper sizes
Paper size Tray Multipurpose
feeder
Two‑sided
printing
ADF Scanner glass
A4
210 x 297 mm
(8.3 x 11.7 in.)
A5
210 x 148 mm
(5.8 x 8.3 in.)
X
A5 LEF*
148 x 210 mm
(5.8 x 8.3 in.)
X
A6*
105 x 148 mm
(4.1 x 5.8 in.)
X
JIS B5
182 x 257 mm
(7.2 x 10.1 in.)
X
Oficio (Mexico)
216 x 340 mm
(8.5 x 13.4 in.)
Hagaki
100 x 148 mm
(3.9 x 5.8 in.)
X XX
Business card
50.8 x 88.9 mm
(2 x 3.5 in.)
XXXX
Statement
140 x 216 mm
(5.5 x 8.5 in.)
X
Executive
184 x 267 mm
(7.3 x 10.5 in.)
X
Letter
216 x 279 mm
(8.5 x 11 in.)
* This paper size is not supported in the optional tray.
