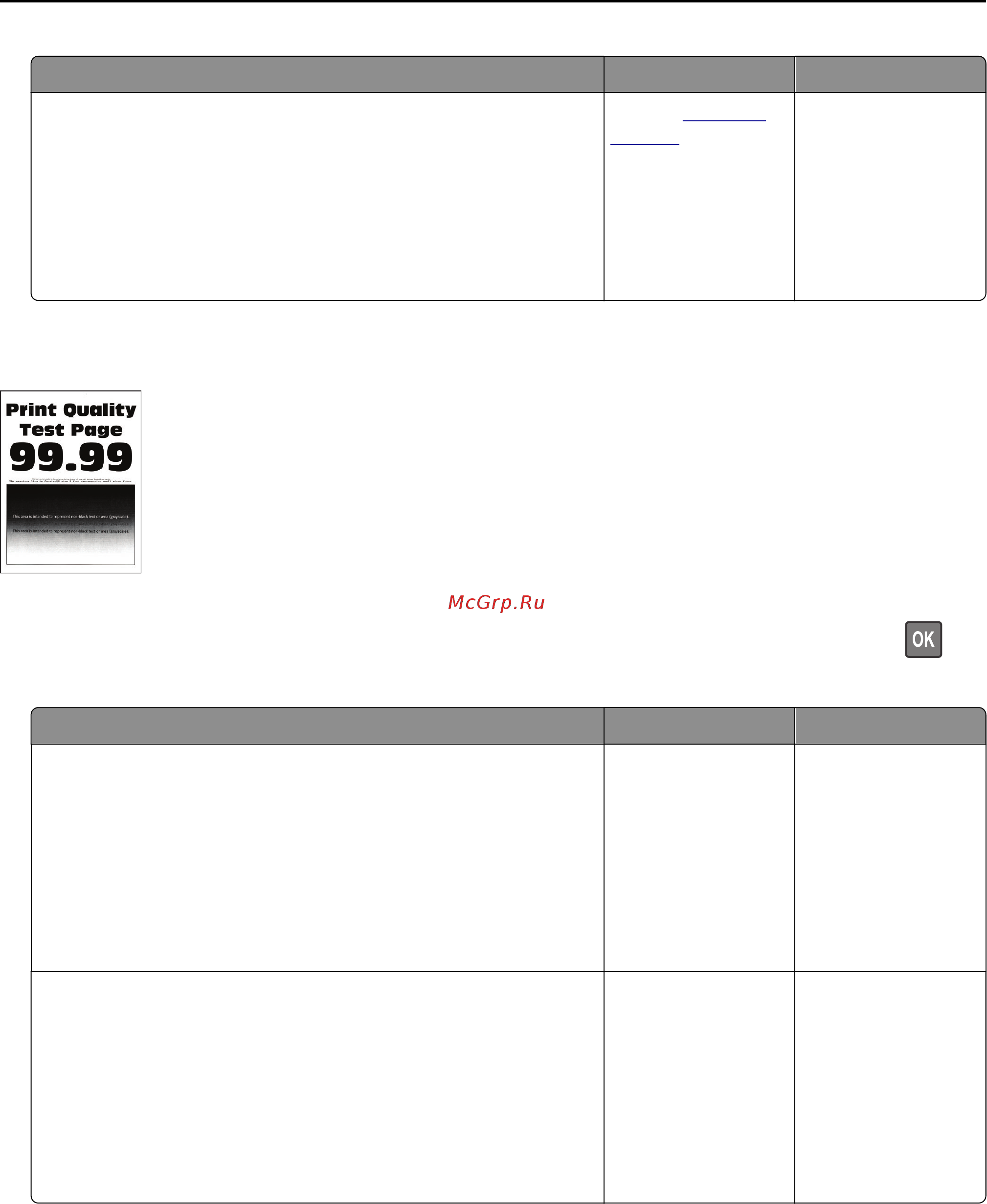

Konica Minolta BizHub 4422 [174/227] Dark print
![Konica Minolta BizHub 4422 [174/227] Dark print](/views2/1712903/page174/bgae.png)
Action Yes No
Step 3
Check the status of the toner cartridge, and replace if necessary.
a From the control panel, navigate to:
Status/Supplies > Supplies
b Print the document.
Is the printer printing blank or white pages?
Contact
customer
support.
The problem is
solved.
Dark print
Note: Before solving the problem, print the Print Quality Test Pages. From the control panel, navigate to
Settings > Troubleshooting > Print Quality Test Pages. For non‑touch‑screen printer models, press
to
navigate through the settings.
Action Yes No
Step 1
a Check if the printer is using a genuine and supported toner
cartridge.
Note: If the cartridge is not supported, then install a
supported one.
b Print the document.
Is the print dark?
Go to step 2. The problem is
solved.
Step 2
a Turn o the printer, wait for about 10 seconds, and then turn on
the printer.
b Reduce toner darkness. From the control panel, navigate to:
Settings > Print > Quality
c Print the document.
Is the print dark?
Go to step 3. The problem is
solved.
Troubleshooting 174
