Konica Minolta BizHub 4422 [141/227] Replacing the imaging unit
![Konica Minolta BizHub 4422 [141/227] Replacing the imaging unit](/views2/1712903/page141/bg8d.png)

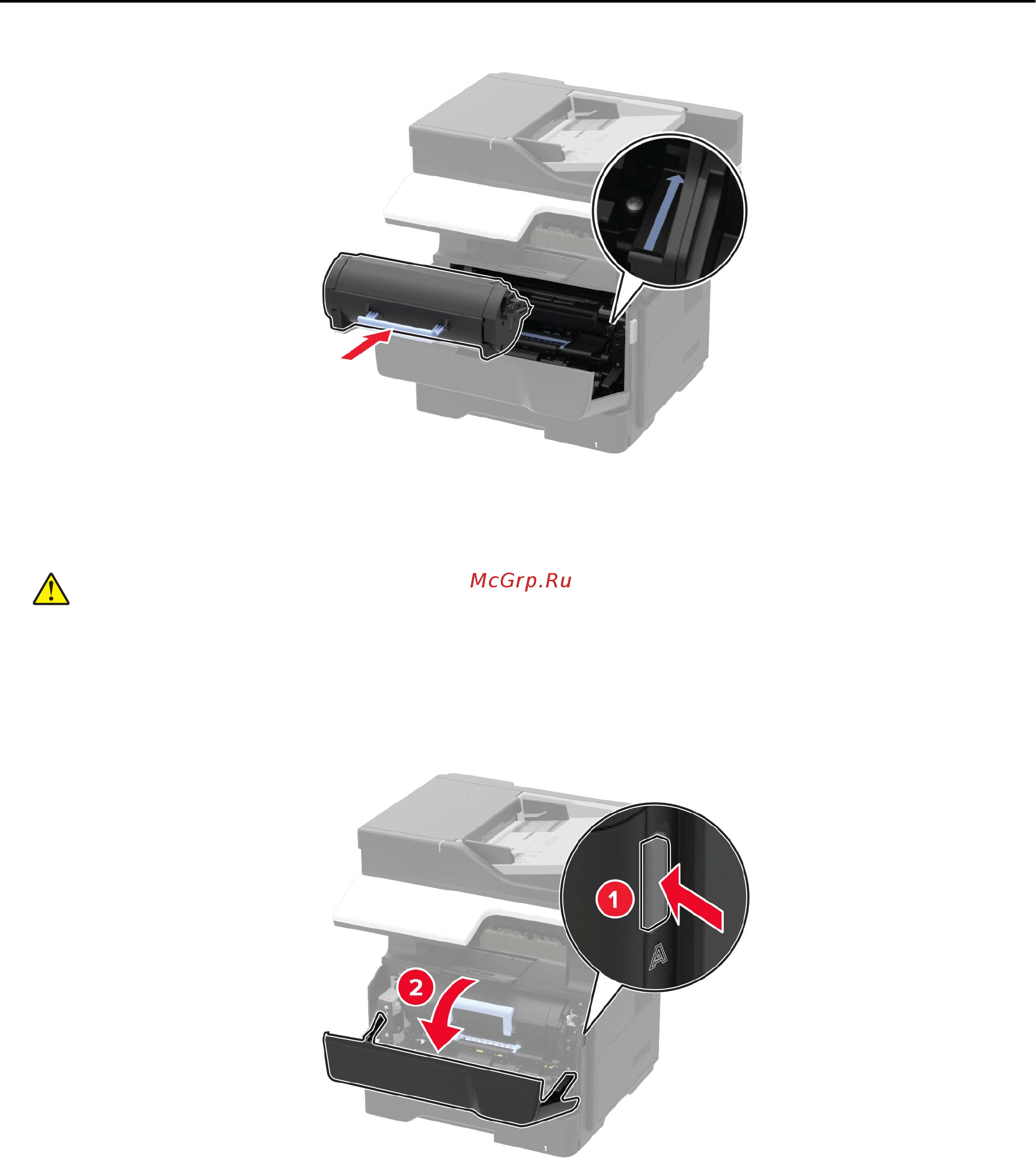

5 Close the front door.
Note: Dispose of the empty toner cartridge according to your local regulations. Do not burn the cartridge.
CAUTION—POTENTIAL INJURY: If you get toner in your eyes, wash it out immediately with cool
water and consult a doctor.
Replacing the imaging unit
1 Open the front door.
Maintaining the printer 141
