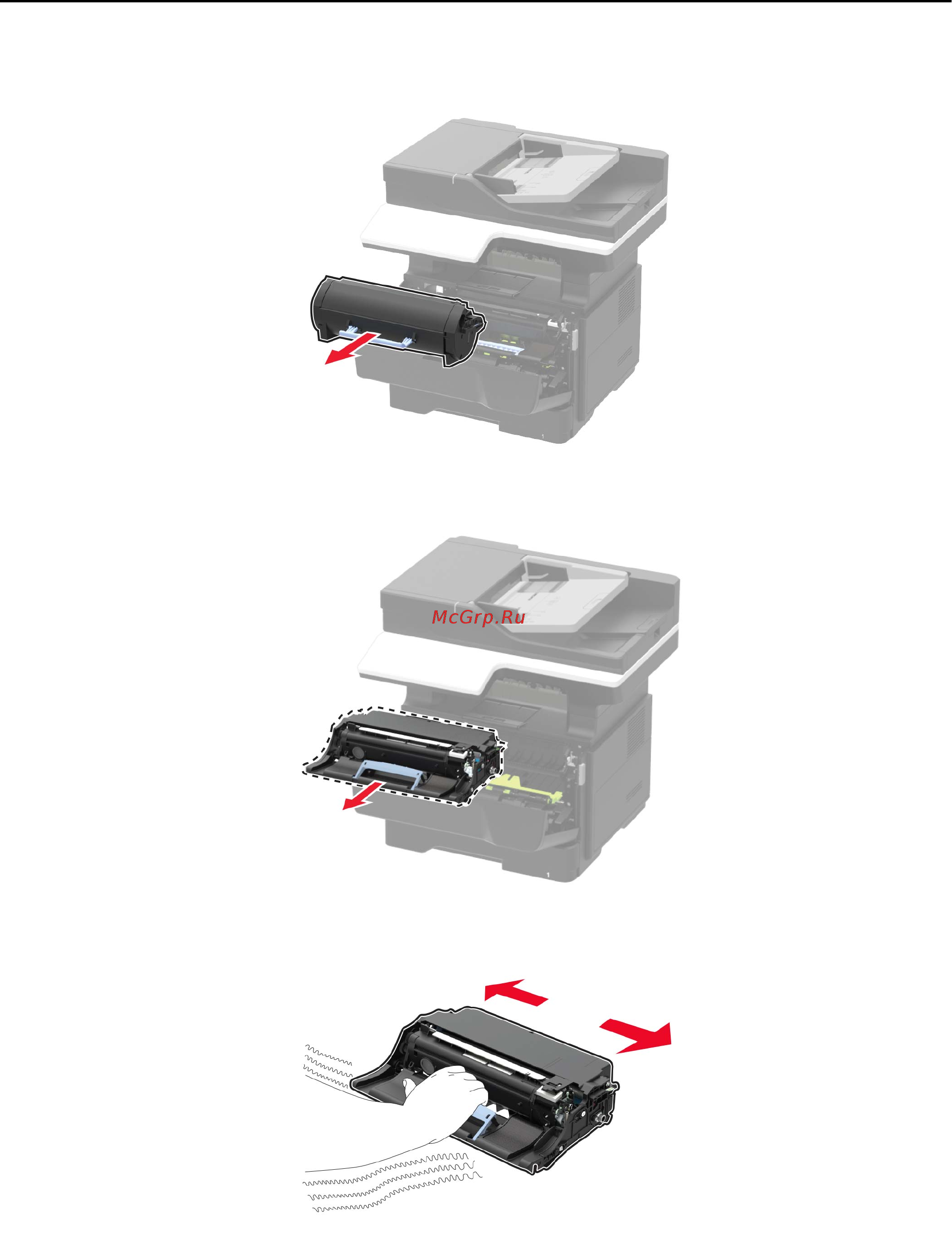

2 Remove the toner cartridge.
3 Remove the used imaging unit.
4 Unpack the new imaging unit, and then shake it three times to redistribute the toner.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
