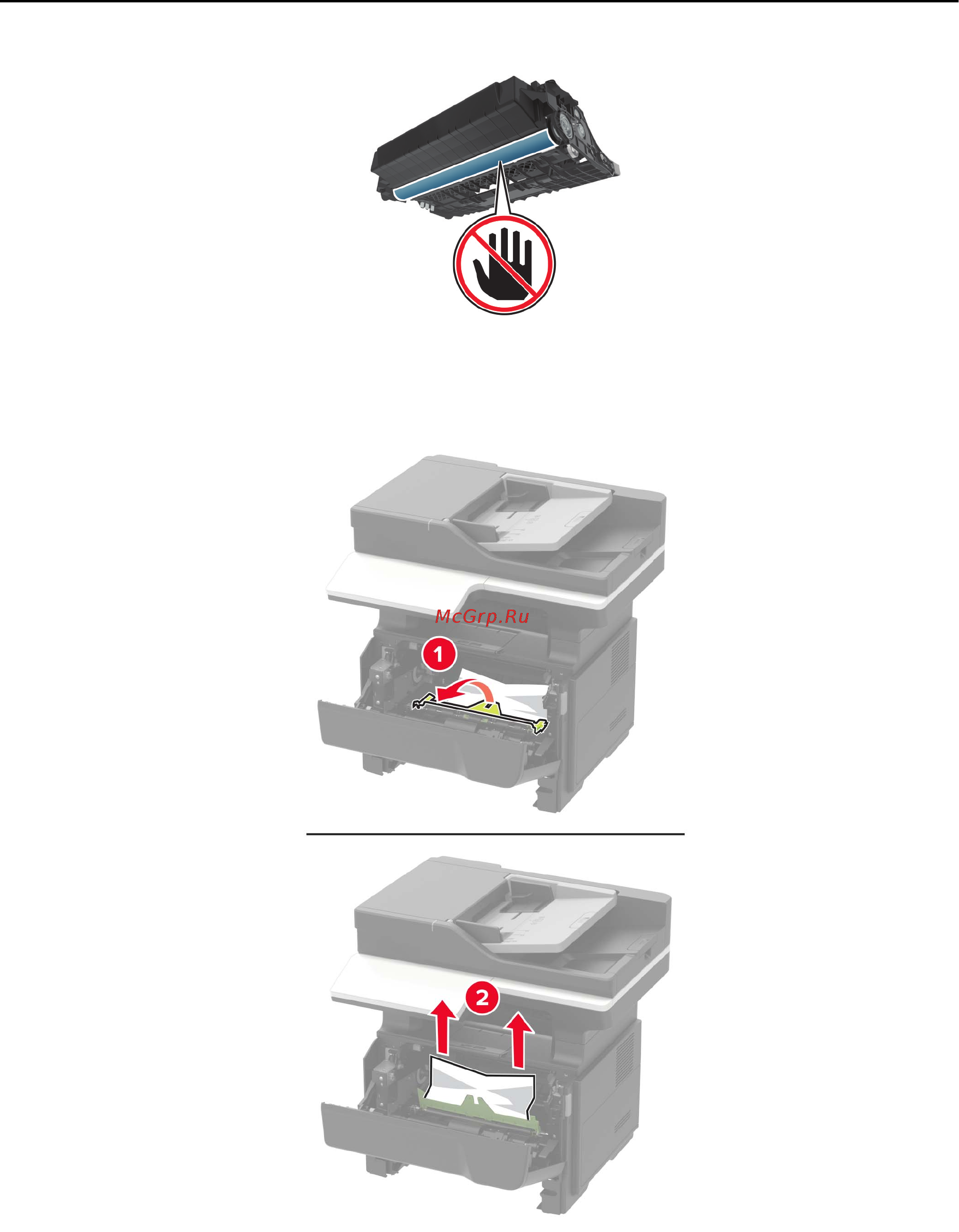

5 Remove the jammed paper.
Note: Make sure that all paper fragments are removed.
6 Insert the imaging unit.
Note: Use the arrows inside the printer as guides.
Clearing jams 157
