create a persistent passage through NAT. Port Mapping is only necessary for incoming connections,

not returning traffic.

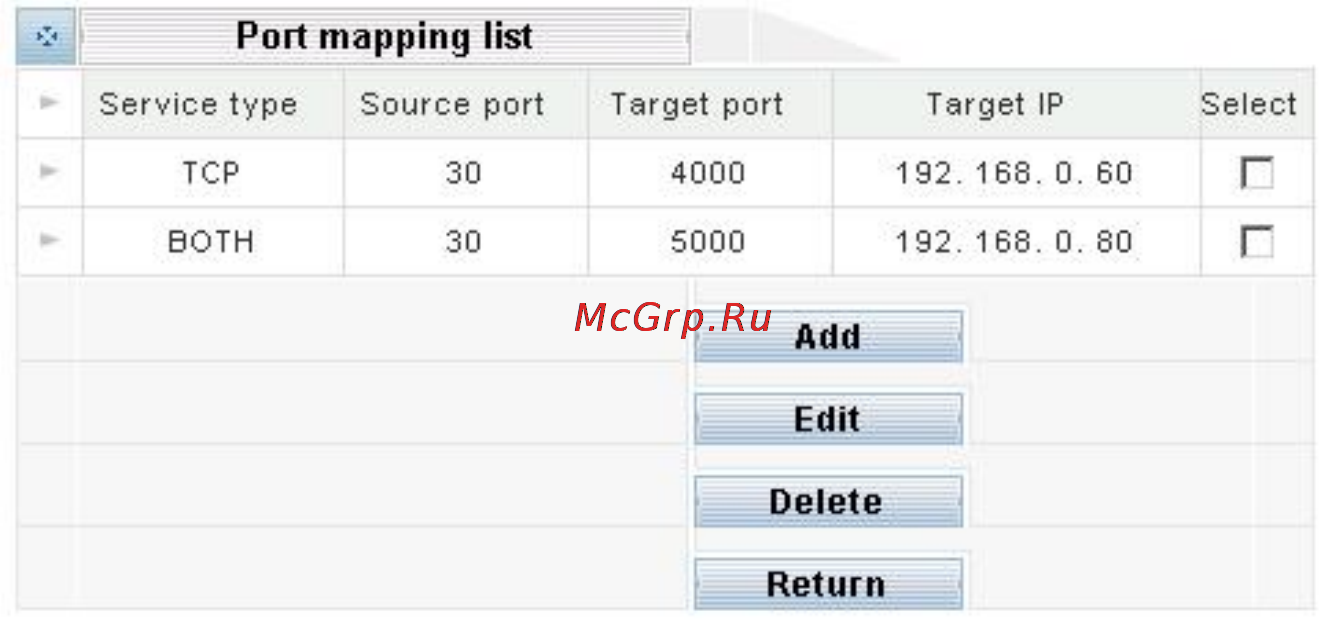

Please click Setting button to enter into Port mapping configuration:

Add：Clicking Add button to step up the machine the packet want to be transferred.

Service type: Please make sure the protocol type service use.

TCP(Transmission Control Protocol)，UDP(User Datagram Protocol) or BOTH

Source port: Please fill the port service using

Target port: Please fill the port service will be transferred to

Target IP: Please fill the IP Address of the responsible machine

Edit：Please select the service port transparent，clicking Edit to modify the port and IP Address.

Remember to save after changing.

Delete：Please select the service transparent，clicking delete to remove the service you don’t want to

transparent.

Return：Go back to the last page

Virtual DMZ

In certain situations, you may want to set up a virtual DMZ on one of the computers on your network.

When you establish a virtual DMZ, you open all inbound ports and direct the base station to forward

certain inbound data packets (those that are not in response to a transmission initiated by a local

networked computer and not handled through application-triggered or persistent port forwarding) to a

particular computer on your local network. This computer becomes the DMZ host.

A virtual DMZ, however, should be used only in very specific situations. The computer that hosts the

virtual DMZ is fully exposed to the Internet, and is thus susceptible to malicious attacks and

unauthorized access. If a hacker were to upload a virus to the virtual DMZ, the virus could spread to all

the computers on your network.

Please click Setting button to enter into Virtual DMZ configuration:
