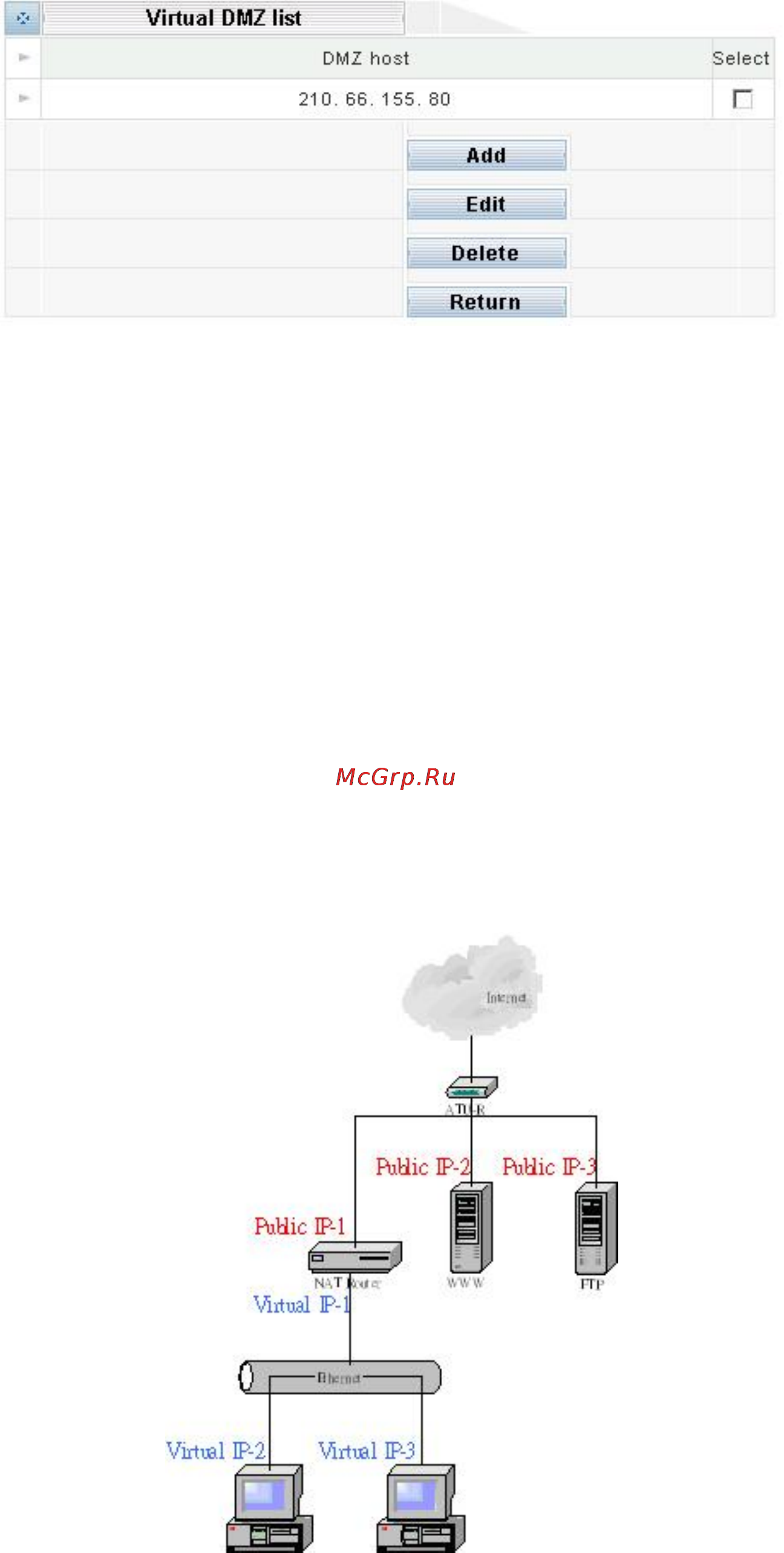

Add：Clicking Add button to step up the machine you want to transparent. The configuration will show

the place to let you fill the IP Address．

Note: The ping command can’t be used to call the machine set to transparent mode.

Edit：select the IP transparent，clicking Edit to modify the IP Address. Remember to save after

changing.

Delete：select the IP transparent，clicking delete to remove the machine you don’t want to transparent.

Return：Go back to the last page．

Address Mapping vs. Virtual DMZ

The standard framework of the Intranet

The figure below is the simplest way to construct the intranet. User can access the single server used

public IP address provided by enterprise

The IPX Virtual DMZ framework

Can change the intranet framework by using Virtual DMZ; can make use of Virtual DMZ to replace the

standard intranet structure without changing the any setting, including the setting of Public IP-2 and
