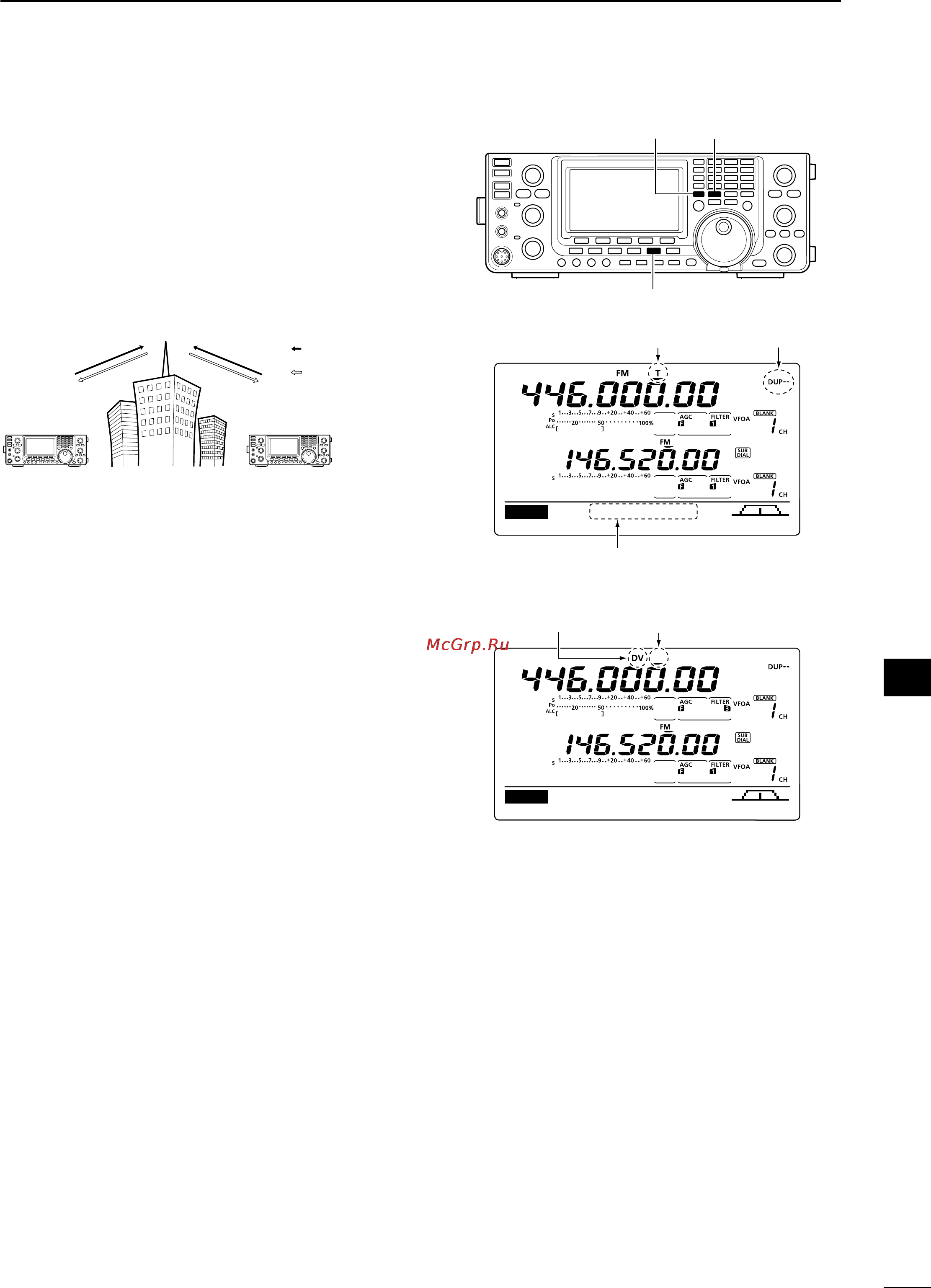

■ Receiving a D-STAR repeater
When the IC-9100 receives a signal from a D-STAR
repeater, it receives four call signs: the calling station’s
call sign, the called station’s call sign, the R1 repeater
call sign (the repeater that receives a signal from the
calling station on the uplink frequency), and the R2 re-
peater call sign (the repeater that transmits a signal
onthedownlinkfrequency).Youcancopythereceived
call signs into your radio, and reply to the call.
Station A Station B
Repeater
446.000 MHz
445.400 MHz
445.400 MHz
446.000 MHz
Uplink
Downlink
(Transmit frequency)
(Receive frequency)
• Presetting
q Select the desired frequency band. (p. 35)
w Push [VFO/MEMO] to select the VFO mode.
e Push [A/B] once or twice to select VFO A.
r Set the desired repeater transmit (downlink) fre-
quency. (p. 37)
•Adjusttheoutputpower,ifdesired.(p.46)
t
P
ush [MENU] to display the “M1” screen (Menu 1).
y Hold down [DUP](F-2) for 1 second to turn ON the
One-touch repeater function.
•“T”and“DUP–”appear.
•Therepeaterreceive(uplink)frequencyappearsatthe
bottom of the function display.
u Push [DUP](F-2) once or twice to switch the offset
to the desired direction.
•“DUP–”or“DUP+”appears.
•WhentheAutoRepeaterfunctionisinuse,thisselec-
tion is not necessary (Only U.S.A. and Korean versions).
(p. 67)
i Push [DV•DR] to select the DV mode. (p. 43)
•“DV” appears.
•“T”disappears.
o When a signal is received, the calling station’s call
sign is displayed on the LCD.
•Ifthecallingstationhasprogrammedanoteormes-
sage, it is displayed after the call sign.
See the next page to view the received call sign.
To reply to the calling station, see page 96.
[VFO/MEMO] [A/B]
[DV・DR]
“T” disappears
Appears
M1
DUPAGC AFC TON SCP
445.40000
M1
DUPAGC AFC DSQ SCP
445.40000
Appears
Uplink frequency
Appears
