GPS/GPS-A OPERATION
■ GPS operation (Continued)
D GPS message programming
Enter a GPS message of up to 20 characters to be
transmitted with the position data.

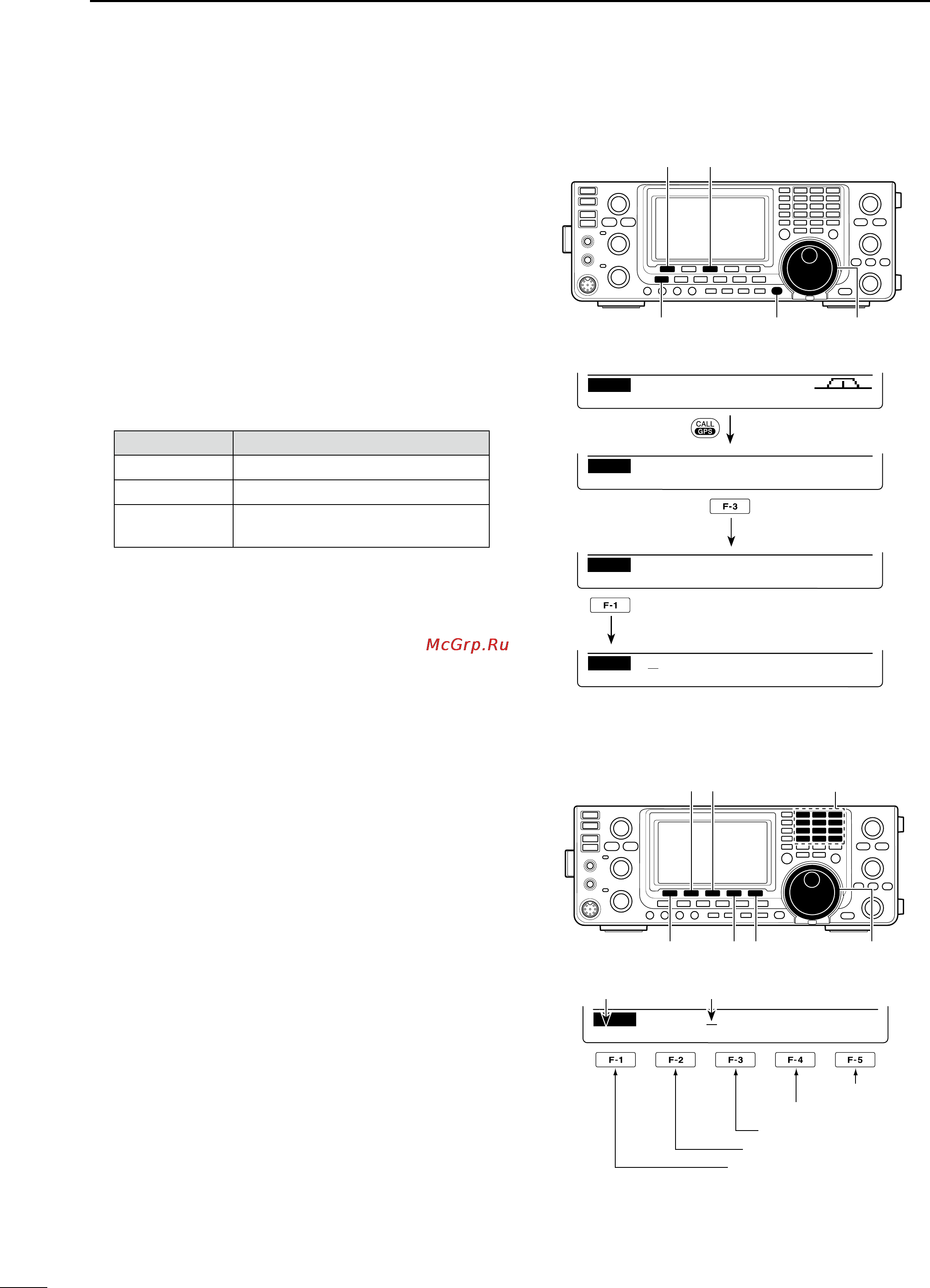

q Hold down [CALL/GPS] for 1 second to display the
“GPS” screen.
w Push [MSG](F-3) to display the “MSG” screen (GPS
Message).
e Push [TXM](F-1) to display the “TXM” screen (TX
Message Edit).
•Acursorappearsandblinks.
r Push [F-1] one or more times to select the desired
character type.
Character type Selectable characters
ABC A to Z
abc a to z
etc
!#$%&\?" ’ ` ^ + – ✱⁄.,:;=<>
( ) [ ] { } ¦ _ ¯ @
t Rotate [MAIN DIAL] to select the first character or
symbol to input.
When inputting numbers or a decimal point, push
the appropriate keypad key.
•Push[DEL](F-4)todeletetheselectedcharacter,sym-
bol or number.
•Push[SPC](F-5)toinputaspace.
•When all 20 characters have been programmed, an
error beep sounds. If you want to reprogram, push [Ω]
(F-2) or [≈](F-3) to select a character, then push [DEL]
(F-4) to delete it.
y Push [Ω](F-2) to move the cursor backward, or push
[≈](F-3) to move the cursor forward.
u Repeat steps r to y to program a message of up
to 20 characters.
i Push [MENU] to save the message, and return to
the “MSG” screen (GPS Message).
o Push [MENU] again to return to the “GPS” screen.
[MSG]
[CALL/GPS] [MAIN DIAL][MENU]
[TXM]
GPMPOS MSG SET
GPS
Push
ABC
Ω≈
DEL SPC
TXM
DUPAGC AFC TON SCP
M1
Hold down
[Ω][≈]
[F-1] [DEL][SPC]
[MAIN DIAL]
Keypad
• To program a message
ABC
Ω≈
DEL SPC
TXM
I ’ m
Character type Cursor
Input a space
Delete a character
Move cursor forward
Move cursor backward
Select the character type
RXMTXM
MSG
GPS Message
Push
