142
10
MEMORYOPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

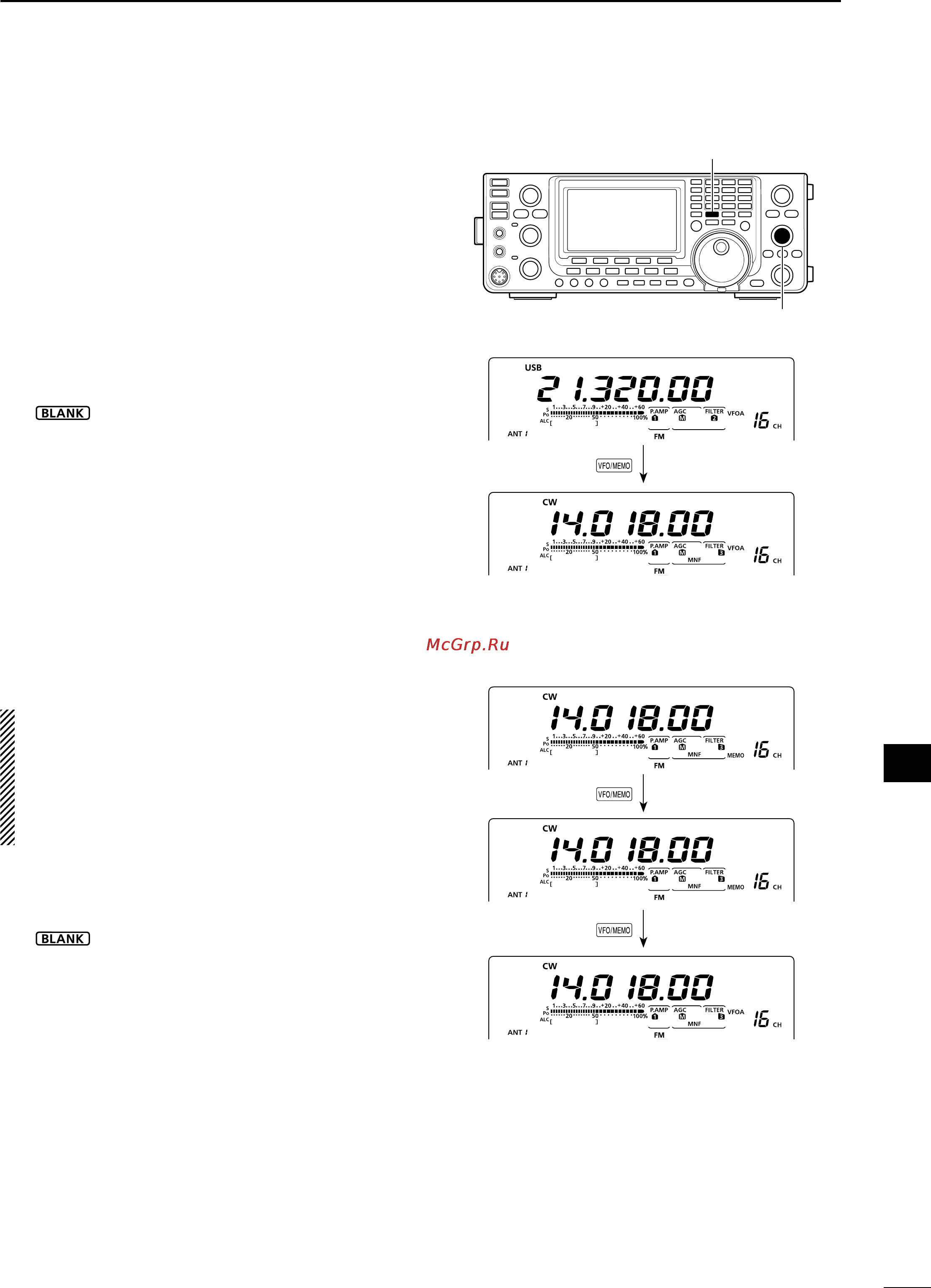

The Memory channel contents (frequency, operating
mode, etc.) can be copied to the VFO.
The copy can be performed in either the VFO mode or
the Memory mode.
D Copying in the VFO mode
This is useful for copying programmed contents to a
displayed VFO.
q Push [VFO/MEMO] to select the VFO mode.
w Rotate [M-CH] to select the Memory channel num-
ber to be copied.
•“ ” appears if the selected Memory channel is a
blank channel. In this case nothing can be copied.
e Hold down [VFO/MEMO] for 1 second to copy the
Memory channel contents into the VFO.
•Threebeepssoundwhenthecopyiscomplete.
D Copying in the Memory mode
This is useful for copying the Memory channel con-
tents while operating in the Memory mode.
When you have changed the displayed frequency,
operating mode, etc. in the selected Memory chan-
nel:
•Displayed data is copied.
•Programmed contents in the Memory channel are
not copied, but remain only in the Memory chan-
nel.
q Push [VFO/MEMO] to select the Memory mode.
w Rotate [M-CH] to select the Memory channel to be
copied.
•“ ” appears if the selected Memory channel is a
blank channel. In this case nothing can be copied.
•Setthefrequencyoroperatingmodeifrequired.
e Hold down [VFO/MEMO] for 1 second to copy the
Memory channel contents into the VFO.
•Threebeepssoundwhenthetransferiscomplete.
r Push [VFO/MEMO] to select the VFO mode.
[VFO/MEMO]
[M-CH]
AGC DUP COMP TBW SCP
M1
AGC DUP COMP TBW SCP
M1
Hold down
AGC DUP COMP TBW SCP
M1
Push
While in the Memory mode
The Memory channel contents are transferred
AGC DUP COMP TBW SCP
M1
Hold down
AGC DUP COMP TBW SCP
M1
While in the VFO mode
The Memory channel contents are transferred
■ Memory contents copying
