139
10
MEMORYOPERATION

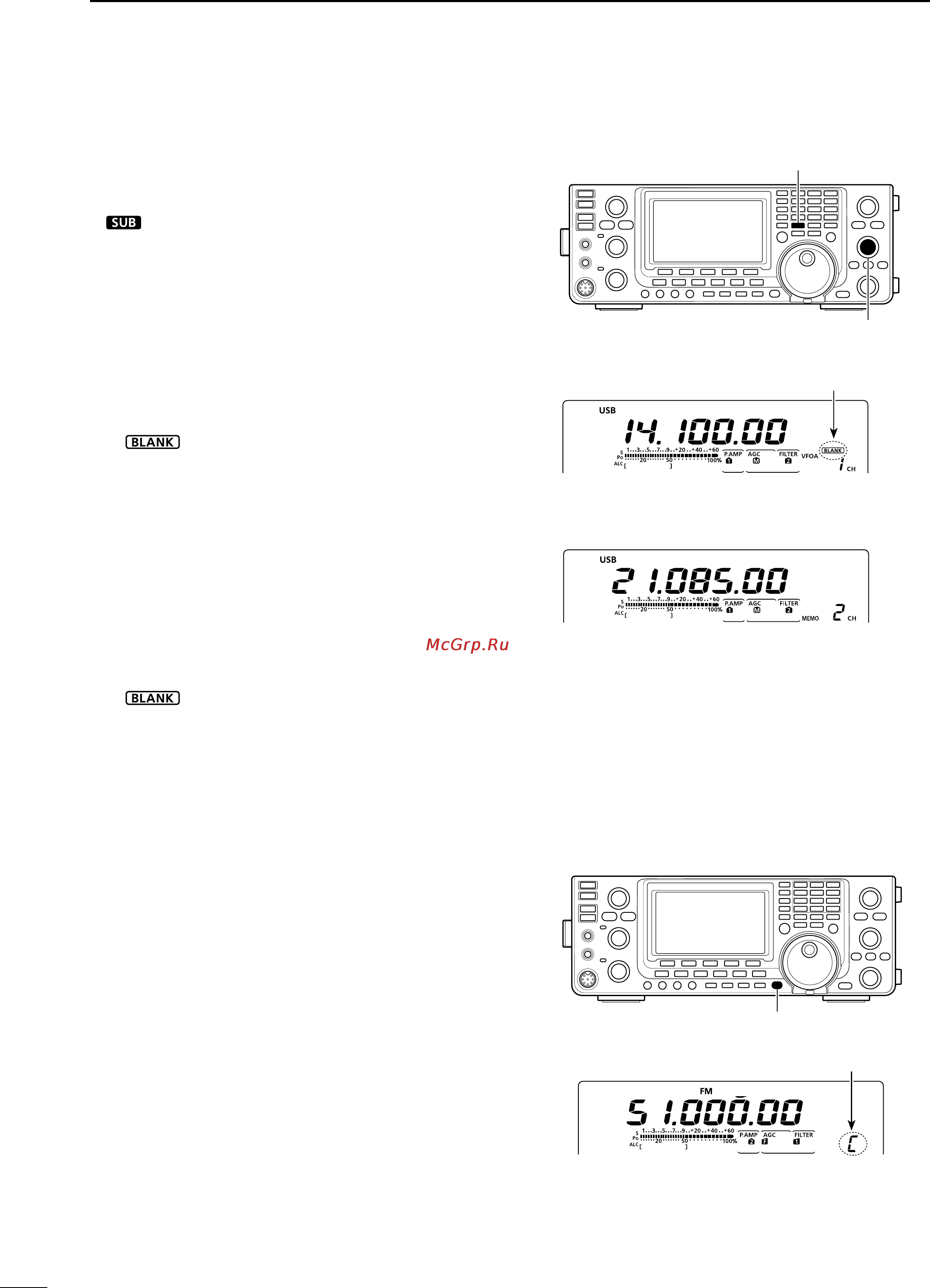

■ Memory channel selection
W
hen the SUB Band setting is turned ON, y
ou can se-
lect a Memory channel in the SUB Band as well as in
the MAIN Band
. (p. 33)
•“ ” appears when the SUB Band setting is ON.
D Selection in the VFO mode
q Push [VFO/MEMO] to select the VFO mode.
w Rotate [M-CH] to select a Memory channel num-
ber.
•RotateclockwisetoselectahigherMemorychannel
number;rotatecounterclockwisetoselectalowerMem-
ory channel number.
•AllMemorychannels,includingblankchannels,canbe
selected.
•“
” appears when no information has been pro-
grammed into the Memory channel. (Blank channel)
e Push [VFO/MEMO] to select the Memory mode.
•“MEMO”andcontentsoftheMemorychannelappear.
D Selection in the Memory mode
q Push [VFO/MEMO] to select the Memory mode.
w Rotate [M-CH] to select a Memory channel.
•RotateclockwisetoselectahigherMemorychannel
number;rotatecounterclockwisetoselectalowerMem-
ory channel number.
•AllMemorychannels,includingblankchannels,canbe
selected.
•“
” appears when no information has been pro-
grammed into the Memory channel. (Blank channel)
•Memorychannelscanalsobeselectedusingthemicro-
phone [UP]/[DN] keys. In such case, the blank channels
are skipped.
[VFO/MEMO]
[M-CH]
AGC DUP COMP TBW SCP
M1
While in the VFO mode
Appears if the selected Memory
channel has no information.
AGC DUP COMP TBW SCP
M1
While in the Memory mode
■Call channel selection
Each frequency band has its own Call channel. Fac-
tory default frequency and operating modes are pro-
grammed into the Call channel. Change these to suit
your operating needs. (see page 141)
qPush[CALL•GPS]toselecttheCallchannel.
•Acapital“C”appears.
w Push[CALL•GPS]againtoreturntotheprevious
screen display.
[CALL•GPS]
AGC DUP AFC TON SCP
M1
Appears
