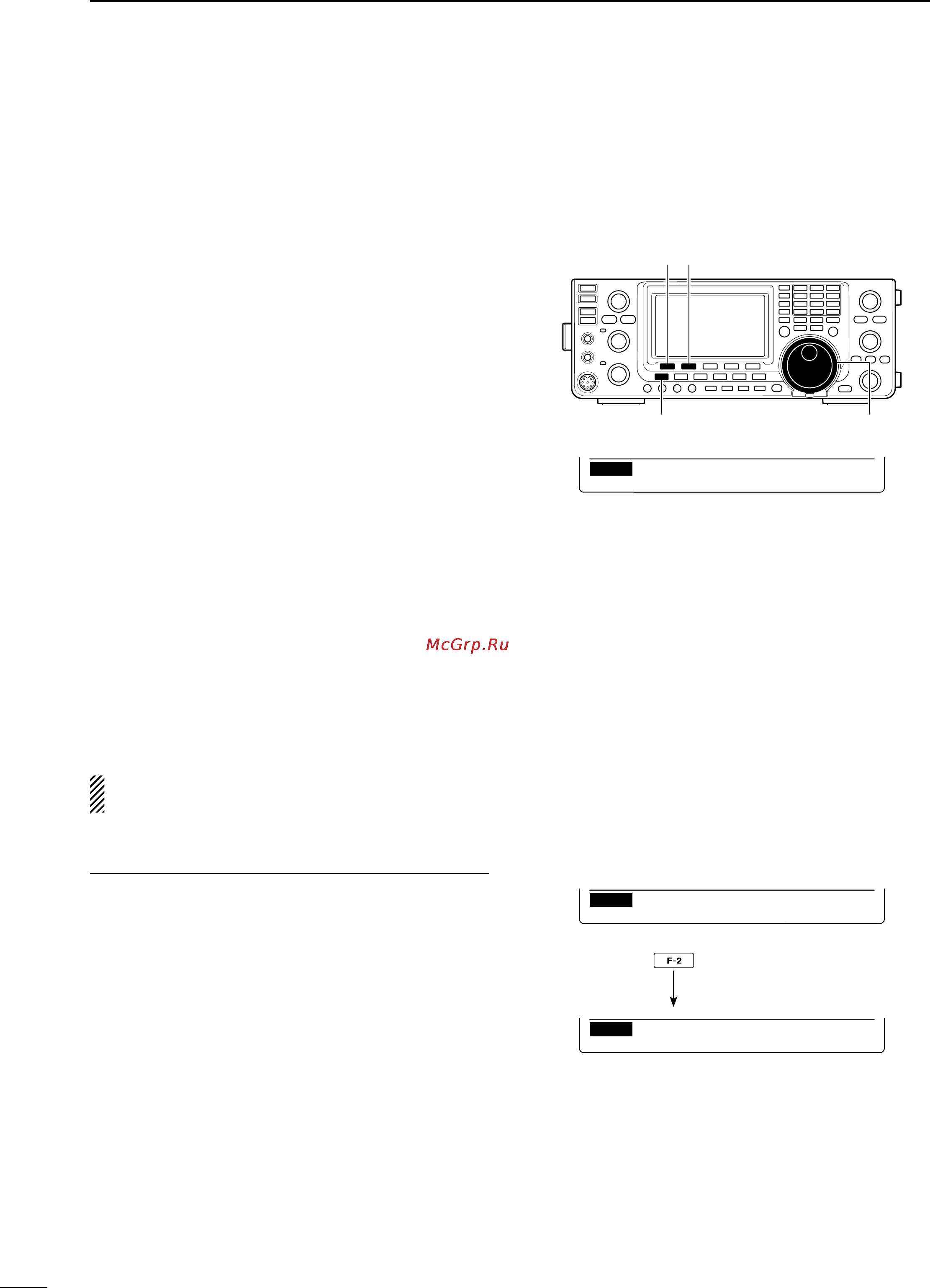

BASIC OPERATION
■ Frequency setting (Continued)
D Band edge warning beep
Youcanhearabeeptonewhenyoutuneintoorout
of an amateur band’s frequency range. A regular beep
sounds when you tune into a range, and an lower tone
error beep sounds when you tune out of a range.
q Hold down [MENU] for 1 second to enter the Set
mode.
w Push [Y](F-1) or [Z](F-2) to select “Band Edge
Beep.”
e Rotate [MAIN DIAL] to select the desired band edge
warning beep setting.
•OFF :BandedgebeepisOFF.
•ON(Default) :When you tune into or out of
the default amateur band’s fre-
quency range, a beep sounds.
(default)
•ON(User) :When you tune into or out of
a user programmed amateur
band’s frequency range, a beep
sounds.
•ON(User)&TX:When you tune into or out of
a user programmed amateur
band’s frequency range, a beep
sounds. Also transmission is in-
hibited outside the programmed
range.
•Hold down[F-3] for1second toreset to thedefault
value.
r Push [MENU] to save, and exit the Set mode.
The beep output level can be set in the “Beep Level”
item of the Set mode. (p. 161)
About the user band edge frequencies
When“ON(User)”or“ON(User)&TX”isselectedin
the “Band Edge Beep” item, a total of 30 band edge
frequencies can be programmed in the “User Band
Edge” item. See the next page for details.
If “OFF” or “ON (Default)” is selected, the “User Band
Edge” item does not appear in the Set mode.
[∫][√]
[MAIN DIAL][MENU]
ON (Default)
Ù
6
Ú ON(Default)
SET Band Edge Beep
ON (User) selection
Ù 6 Ú ON(User)
SET Band Edge Beep
[User Band Edge] item
Ù 7 Ú DEF EDT
SET User Band Edge
Push
