155
12
SATELLITE OPERATION
■ Satellite memory
The IC-9100 has 20 satellite memory channels (CH 00
to 19) to memorize both uplink and downlink frequen-
cies, operating modes and other data.
D Satellite memory selection
q Push [SATELLITE] to enter the satellite mode.
w Push [VFO/MEMO] to select the satellite memory
mode.
•“MEMO”andthememorychannelnumberaredisplayed
beside the uplink frequency (SUB band) display.
e Rotate [M-CH] to select a satellite mode Memory
channel.
D Satellite memory programming
q Push [SATELLITE] to enter the satellite mode.
w Push [VFO/MEMO] to select the satellite memory
mode.
e Rotate [M-CH] to select the desired Memory chan-
nel.
r Select the desired downlink frequency in the MAIN
band, and uplink frequency in the SUB band, as
well as the operating mode.
t Hold down [MW] for 1 second to program the con-
tents into the Memory channel.
•Threebeepssoundwhenthememory programming has
completed.
NOTE: Tracking selection, normal or reverse, is not
programmed in the satellite memory channels.

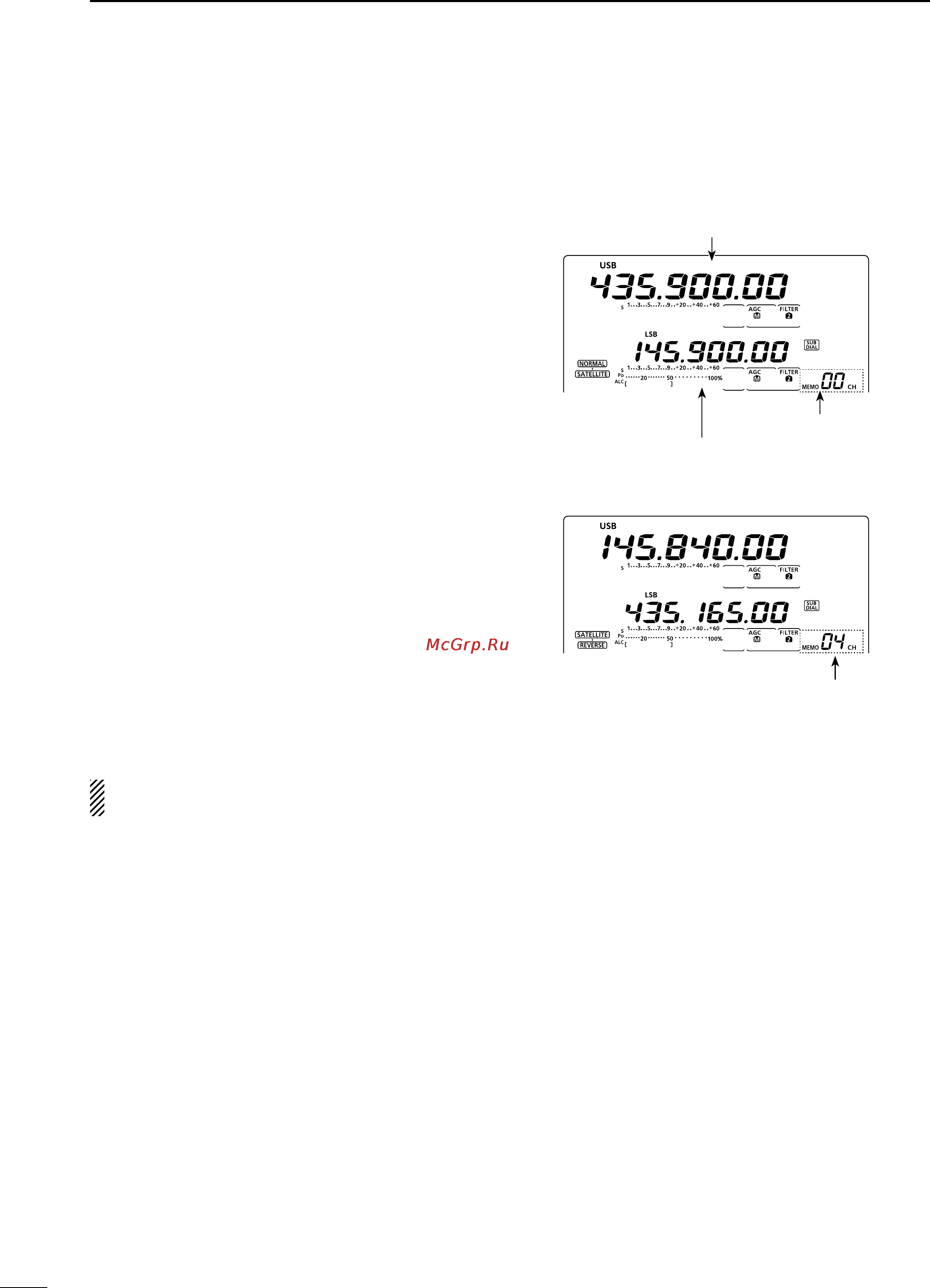

AGC DUP COMP TBW SCP
M1
AGC DUP COMP TBW SCP
M1
Satellite memory channel
Select the desired satellite
memory channel
Downlink (Receive) frequency
Uplink (Transmit) frequency
