GPS/GPS-A OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

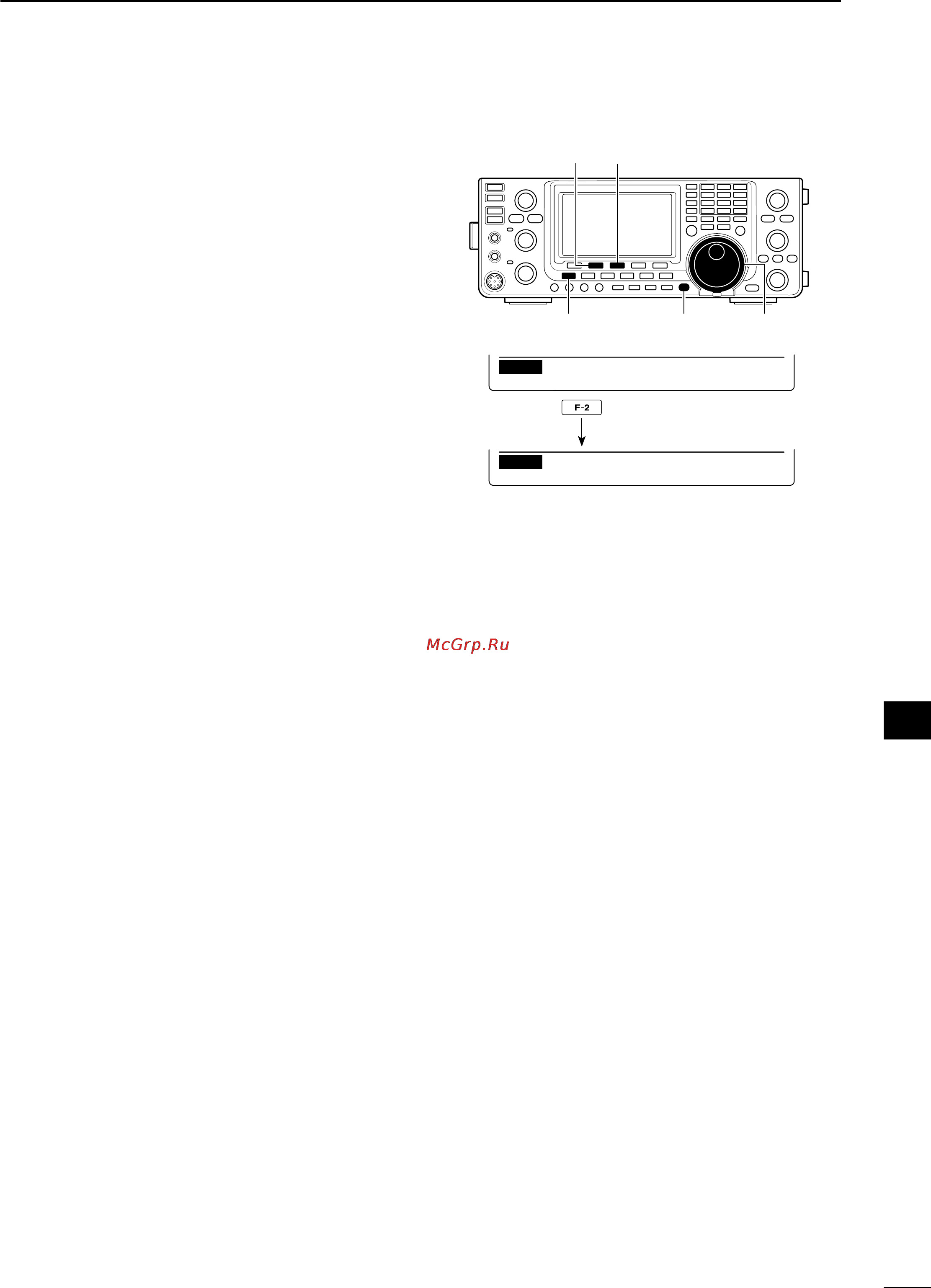

D Received GPS message display
q Hold down [CALL/GPS] for 1 second to display the
“GPS” screen.
w Push [MSG](F-3) to display the “MSG” screen (GPS
Message).
e Push [RXM](F-2) to display the “RXM” screen (RX
message).
•Messages of up to 36 characters can be displayed.
When the received GPS message includes more than
36 characters, push [F-1] to display the rest of the mes-
sage.
r Push [MENU] to return to the “MSG” screen (GPS
Message).
t Push [MENU] to return to the “GPS” screen.
[MSG]
[CALL/GPS] [MAIN DIAL][MENU]
[RXM]
RXMTXM
MSG
GPS Message
RXM
HELLO
Push
