PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
#4#5
#5 #3 #2
$1
#8
#7
#6
$0
#9
#3#2
#4
#7
#6
$1
#8
#9

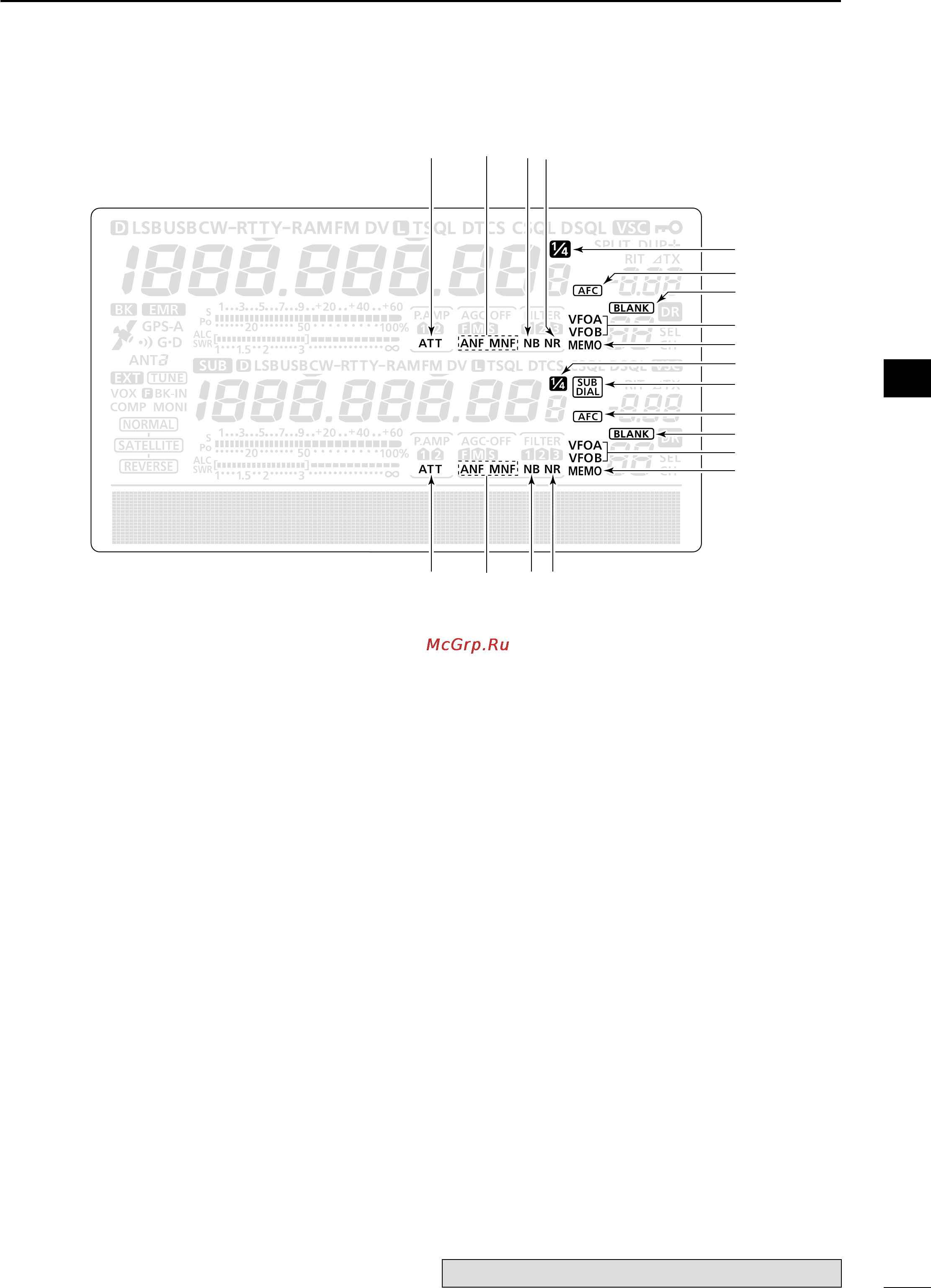

#2 NOISE REDUCTION ICON (p. 77)
Appears when the Noise Reduction function is
turned ON.
#3 NOISE BLANKER ICON (p. 76)
Appears when the Noise Blanker function is turned
ON.
#4 NOTCH ICONS (p. 77)
(Mode: SSB/CW/RTTY/AM)
➥“MNF” appears when the Manual Notch function
is turned ON.
(Mode: SSB/AM/FM)
➥“ANF” appears when the Automatic Notch func-
tion is turned ON.
#5 ATTENUATOR ICON (p. 71)
Appears when the Attenuator function is turned
ON.
#6 MEMORY ICON (pp. 34, 139)
Appears when the memory mode is selected.
#7 VFO ICONS (p. 34)
Displays whether VFO A or VFO B is selected.
#8 BLANK MEMORY ICON (p. 139)
Appears when the selected memory channel is
blank.
#9 AFC ICON (p. 69)
(Mode: FM/DV)
Appears when the AFC (Automatic Frequency Con-
trol) function is turned ON.
$0 SUB DIAL ICON (p. 33)
Appears when the SUB Dial function is turned ON.
$1
1
⁄4 TUNING DIAL SPEED ICON (p. 39)
(Mode: SSB-D/CW/RTTY)
Appears when the tuning dial speed is set so that
one rotation is equal to
1
⁄4 of the normal rotation.
•Thisfunction isavailableonly whenthequicktuning
function is turned OFF.
The optional UT-121 is required for DV mode operation.
