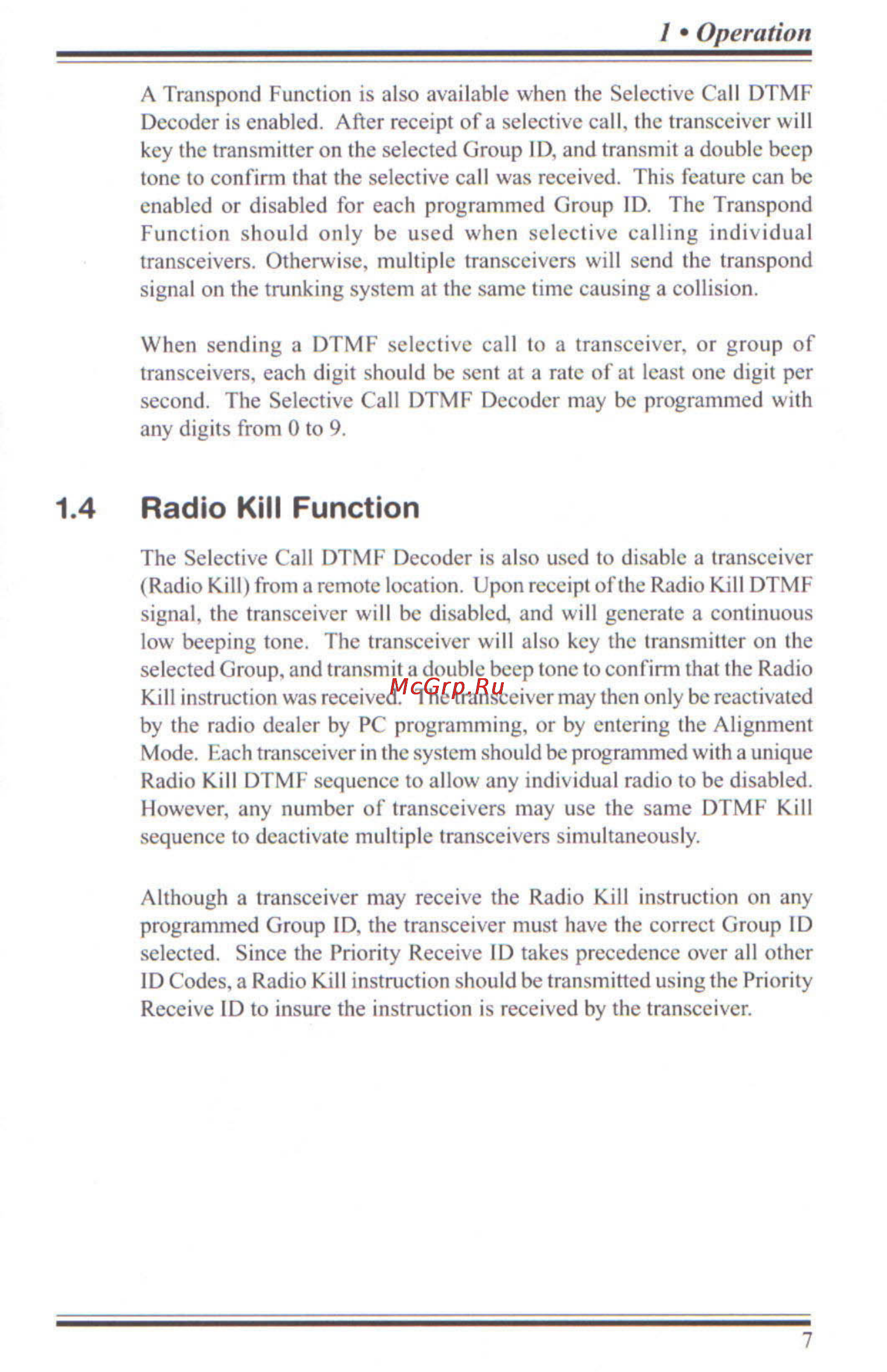

1 Operation Transpond Function is also available when the Selective Call DTMF Decoder is enabled After receipt of a selective call the transceiver will key the transmitter on the selected Group ID and transmit a double beep tone to confirm that the selective call was received This feature can be enabled or disabled for each programmed Group ID The Transpond Function should only be used when selective calling individual transceivers Otherwise multiple transceivers will send the transpond signal on the trunking system at the same time causing a collision When sending a DTMF selective call to a transceiver or group of transceivers each digit should be sent at a rate of at least one digit per second The Selective Call DTMF Decoder may be programmed with any digits from 0 to 9 1 4 Radio Kill Function The Selective Call DTMF Decoder is also used to disable a transceiver Radio Kill from a remote location Upon receipt of the Radio Kill DTMF signal the transceiver will be disabled and will generate a continuous low beeping tone The transceiver will also key the transmitter on the selected Group and transmit a double beep tone to confirm that the Radio Kill instruction was received The transceiver may then only be reactivated by the radio dealer by PC programming or by entering the Alignment Mode Each transceiver in the system should be programmed with a unique Radio Kill DTMF sequence to allow any individual radio to be disabled However any number of transceivers may use the same DTMF Kill sequence to deactivate multiple transceivers simultaneously Although a transceiver may receive the Radio Kill instruction on any programmed Group ID the transceiver must have the correct Group ID selected Since the Priority Receive ID takes precedence over all other ID Codes a Radio Kill instruction should be transmitted using the Priority Receive ID to insure the instruction is received by the transceiver 7
