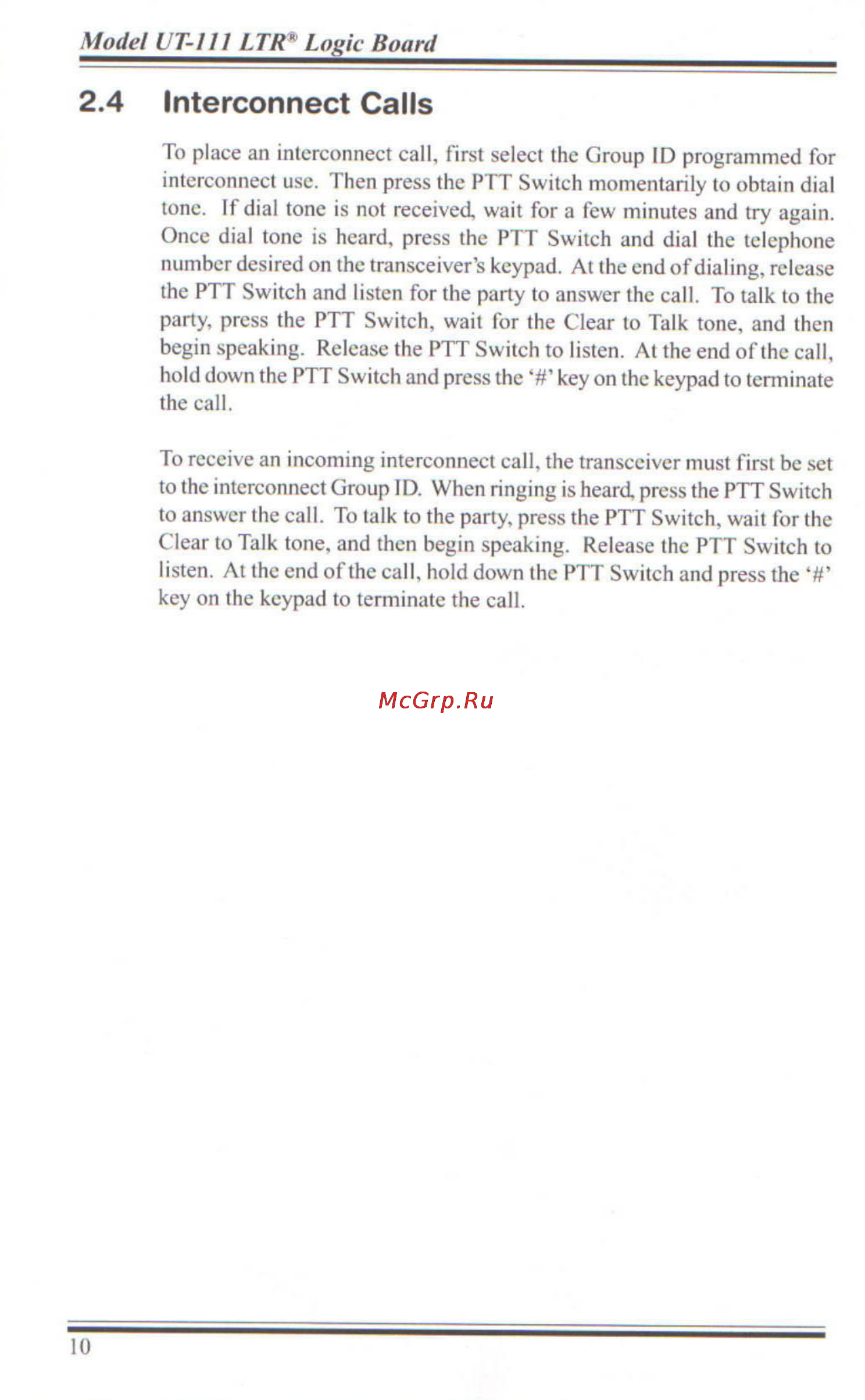

Model UT 111 LTR Logic Board 2 4 Interconnect Calls To place an interconnect call first select the Group ID programmed for interconnect use Then press the PTT Switch momentarily to obtain dial tone If dial tone is not received wait for a few minutes and try again Once dial tone is heard press the PTT Switch and dial the telephone number desired on the transceiver s keypad At the end of dialing release the PTT Switch and listen for the party to answer the call To talk to the party press the PTT Switch wait for the Clear to Talk tone and then begin speaking Release the PTT Switch to listen At the end of the call hold down the PTT Switch and press the key on the keypad to terminate the call To receive an incoming interconnect call the transceiver must first be set to the interconnect Group ID When ringing is heard press the PTT Switch to answer the call To talk to the party press the PTT Switch wait for the Clear to Talk tone and then begin speaking Release the PTT Switch to listen At the end of the call hold down the PTT Switch and press the key on the keypad to terminate the call 10
