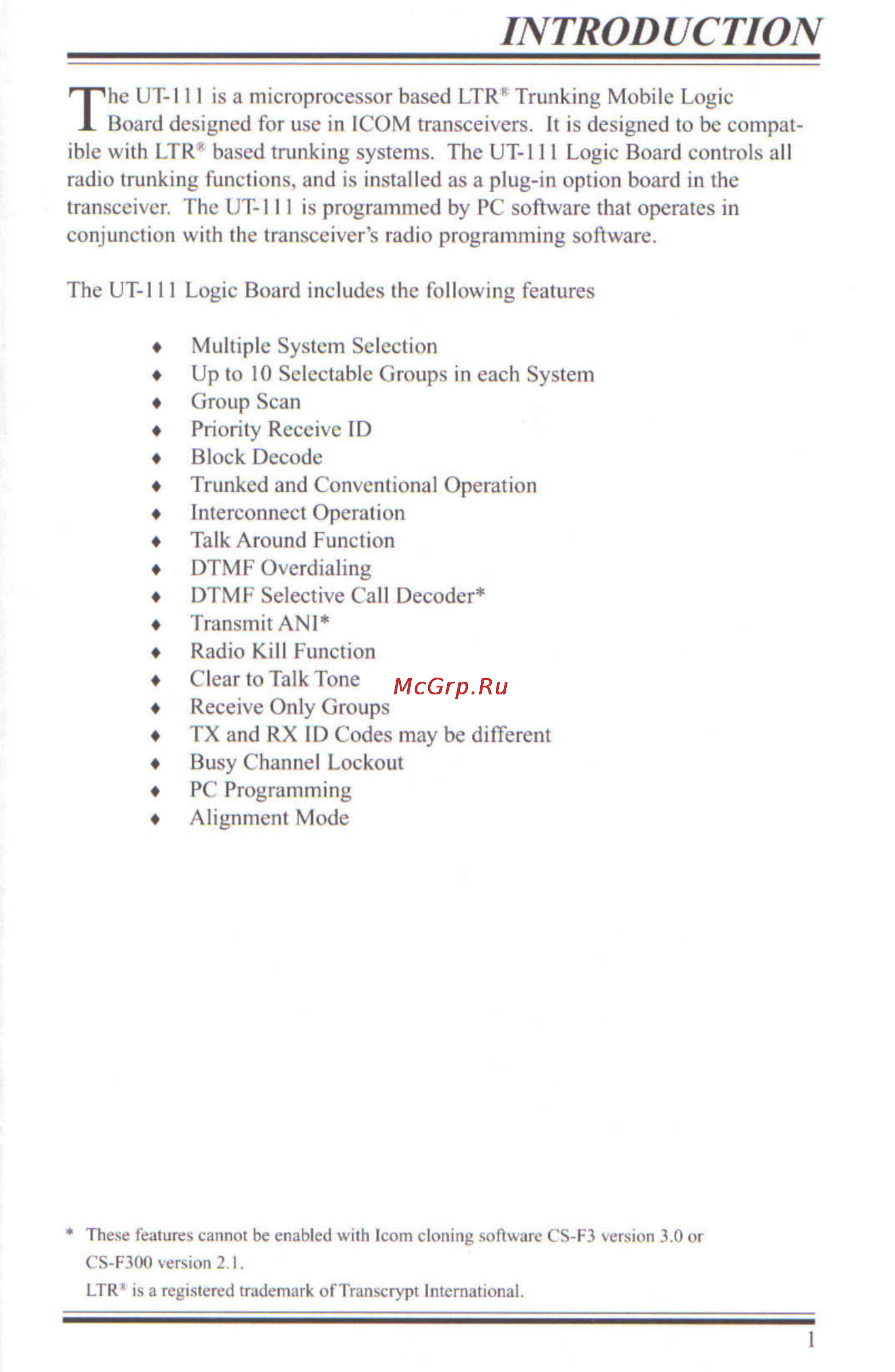

INTRODUCTION he UT 111 is a microprocessor based LTR1 Trunking Mobile Logic Board designed for use in ICOM transceivers It is designed to be compat ible with LTR based trunking systems The UT 111 Logic Board controls all radio trunking functions and is installed as a plug in option board in the transceiver The UT 111 is programmed by PC software that operates in conjunction with the transceiver s radio programming software T The UT 111 Logic Board includes the following features Multiple System Selection Up to 10 Selectable Groups in each System Group Scan Priority Receive ID Block Decode Trunked and Conventional Operation Interconnect Operation Talk Around Function DTMF Overdialing DTMF Selective Call Decoder Transmit AN1 Radio Kill Function Clear to Talk Tone Receive Only Groups TX and RX ID Codes may be different Busy Channel Lockout PC Programming Alignment Mode These features cannot be enabled with Icom cloning software CS F3 version 3 0 or CS F300 version 2 1 LTR is a registered trademark of Transcrypt International 1
