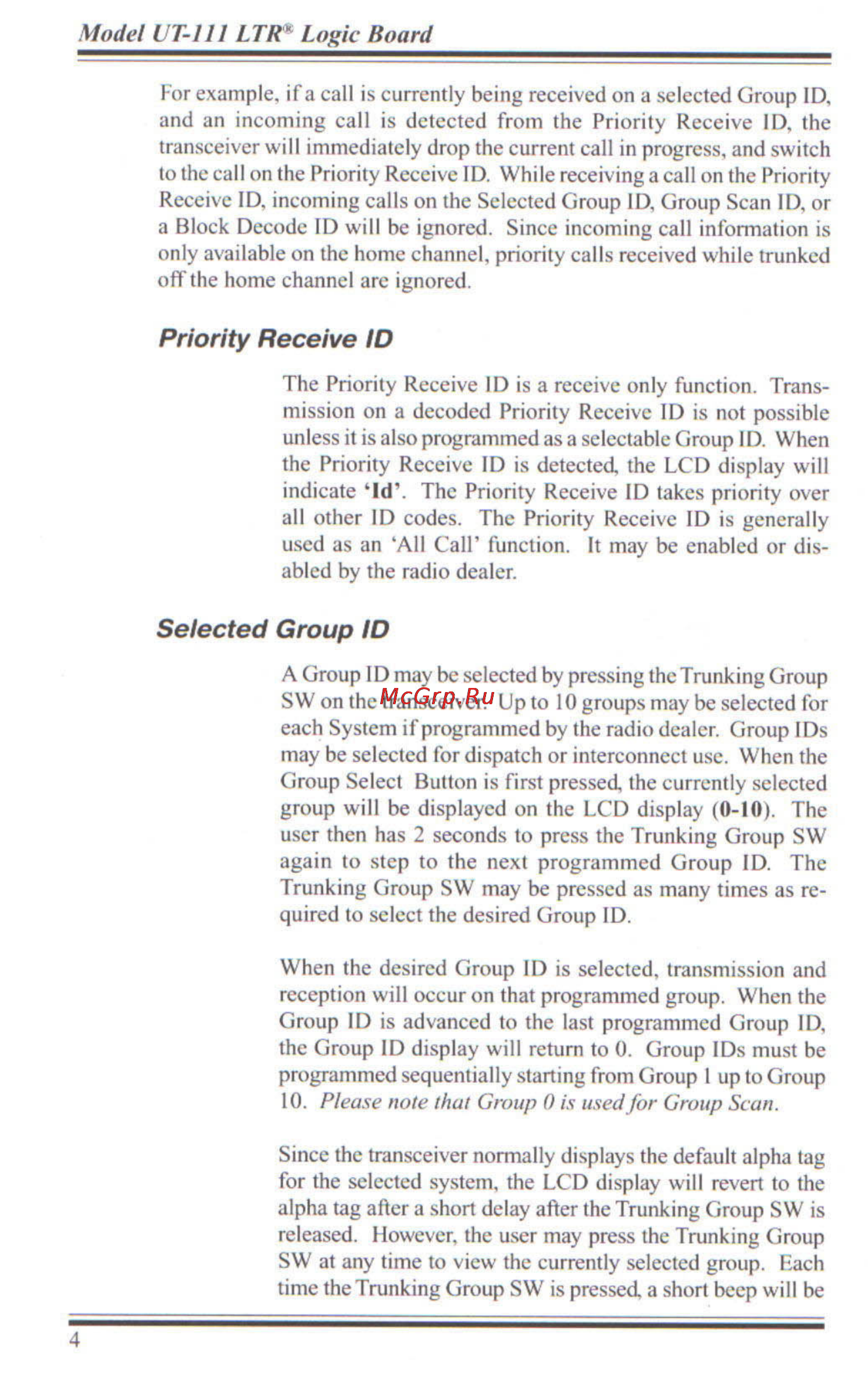

Model UT 111 LTR Logic Board For example if a call is currently being received on a selected Group ID and an incoming call is detected from the Priority Receive ID the transceiver will immediately drop the current call in progress and switch to the call on the Priority Receive ID While receiving a call on the Priority Receive ID incoming calls on the Selected Group ID Group Scan ID or a Block Decode ID will be ignored Since incoming call information is only available on the home channel priority calls received while trunked off the home channel are ignored Priority Receive ID The Priority Receive ID is a receive only function Trans mission on a decoded Priority Receive ID is not possible unless it is also programmed as a selectable Group ID When the Priority Receive ID is detected the LCD display will indicate Id The Priority Receive ID takes priority over all other ID codes The Priority Receive ID is generally used as an All Call function It may be enabled or dis abled by the radio dealer Selected Group ID A Group ID may be selected by pressing the Trunking Group SW on the transceiver Up to 10 groups may be selected for each System if programmed by the radio dealer Group IDs may be selected for dispatch or interconnect use When the Group Select Button is first pressed the currently selected group will be displayed on the LCD display 0 10 The user then has 2 seconds to press the Trunking Group SW again to step to the next programmed Group ID The Trunking Group SW may be pressed as many times as re quired to select the desired Group ID When the desired Group ID is selected transmission and reception will occur on that programmed group When the Group ID is advanced to the last programmed Group ID the Group ID display will return to 0 Group IDs must be programmed sequentially starting from Group I up to Group 10 Please note that Group 0 is used for Group Scan Since the transceiver normally displays the default alpha tag for the selected system the LCD display will revert to the alpha tag after a short delay after the Trunking Group SW is released However the user may press the Trunking Group SW at any time to view the currently selected group Each time the Trunking Group SW is pressed a short beep will be 4
