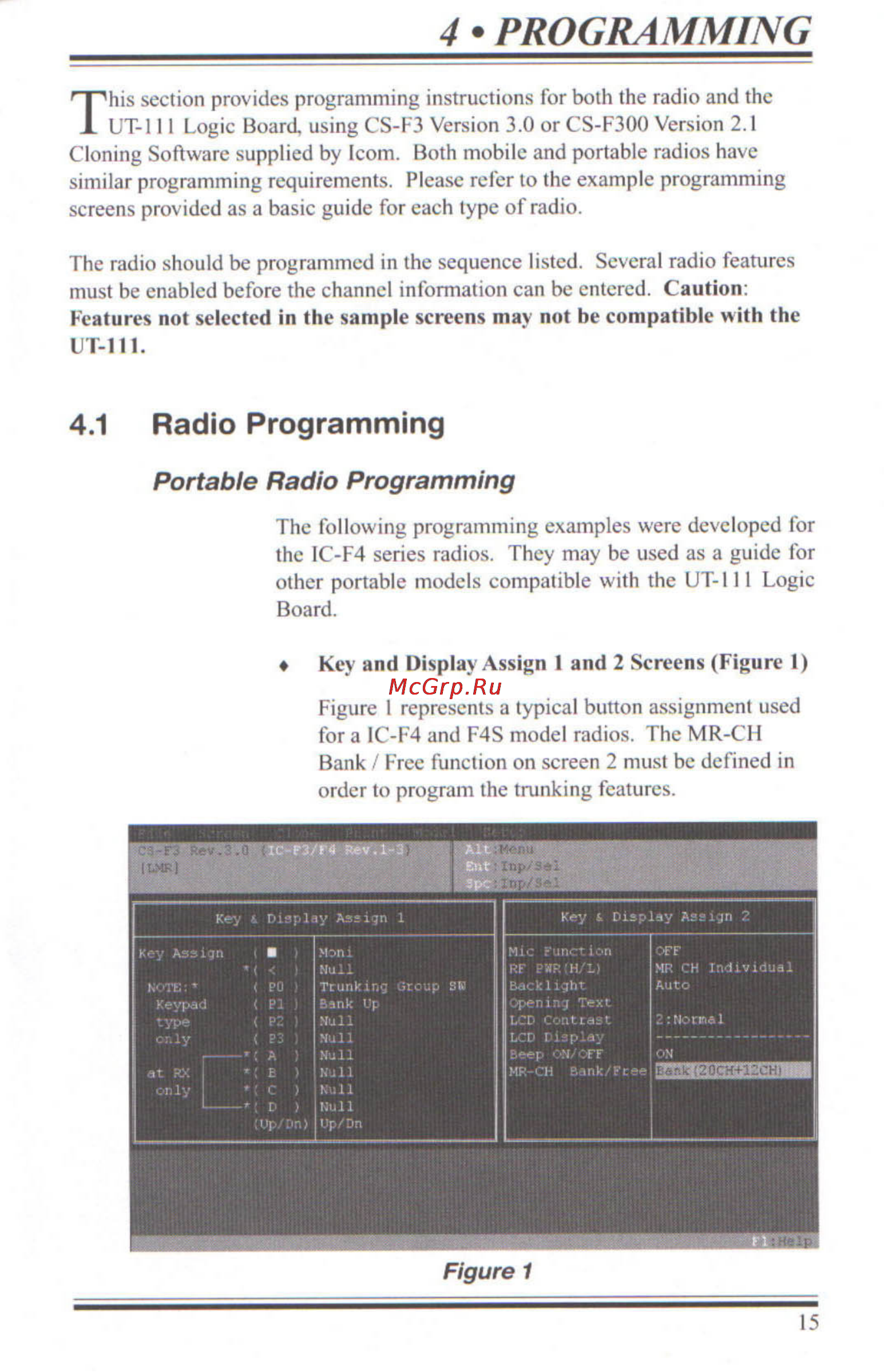

4 PROGRAMMING his section provides programming instructions for both the radio and the UT 111 Logic Board using CS F3 Version 3 0 or CS F300 Version 2 1 Cloning Software supplied by com Both mobile and portable radios have similar programming requirements Please refer to the example programming screens provided as a basic guide for each type of radio T The radio should be programmed in the sequence listed Several radio features must be enabled before the channel information can be entered Caution Features not selected in the sample screens may not be compatible with the UT 111 4 1 Radio Programming Portable Radio Programming The following programming examples were developed for the 1C F4 series radios They may be used as a guide for other portable models compatible with the UT l 11 Logic Board Key and Display Assign 1 and 2 Screens Figure I Figure I represents a typical button assignment used for a IC F4 and F4S model radios The MR CH Bank Free function on screen 2 must be defined in order to program the trunking features I IC P3 H Rev 1 3 Alt Ent Key Í Display Assign 2 Key i Display Assign 1 Key Assign NOTE PO Keypad Pl J type 2 only P3 1 A at RX E only C D Up Dn Moni Null Trunking Group sw Bank Up Null Null Null Null Null Null Up Dn Mic Function RF R H L Backlight Opening Text LCD Contrast LCD Display Beep ON OFF MR CH Bank Freej OFF MR CH Individual Auto 2 Normal c N ____________________ Figure 1 15
