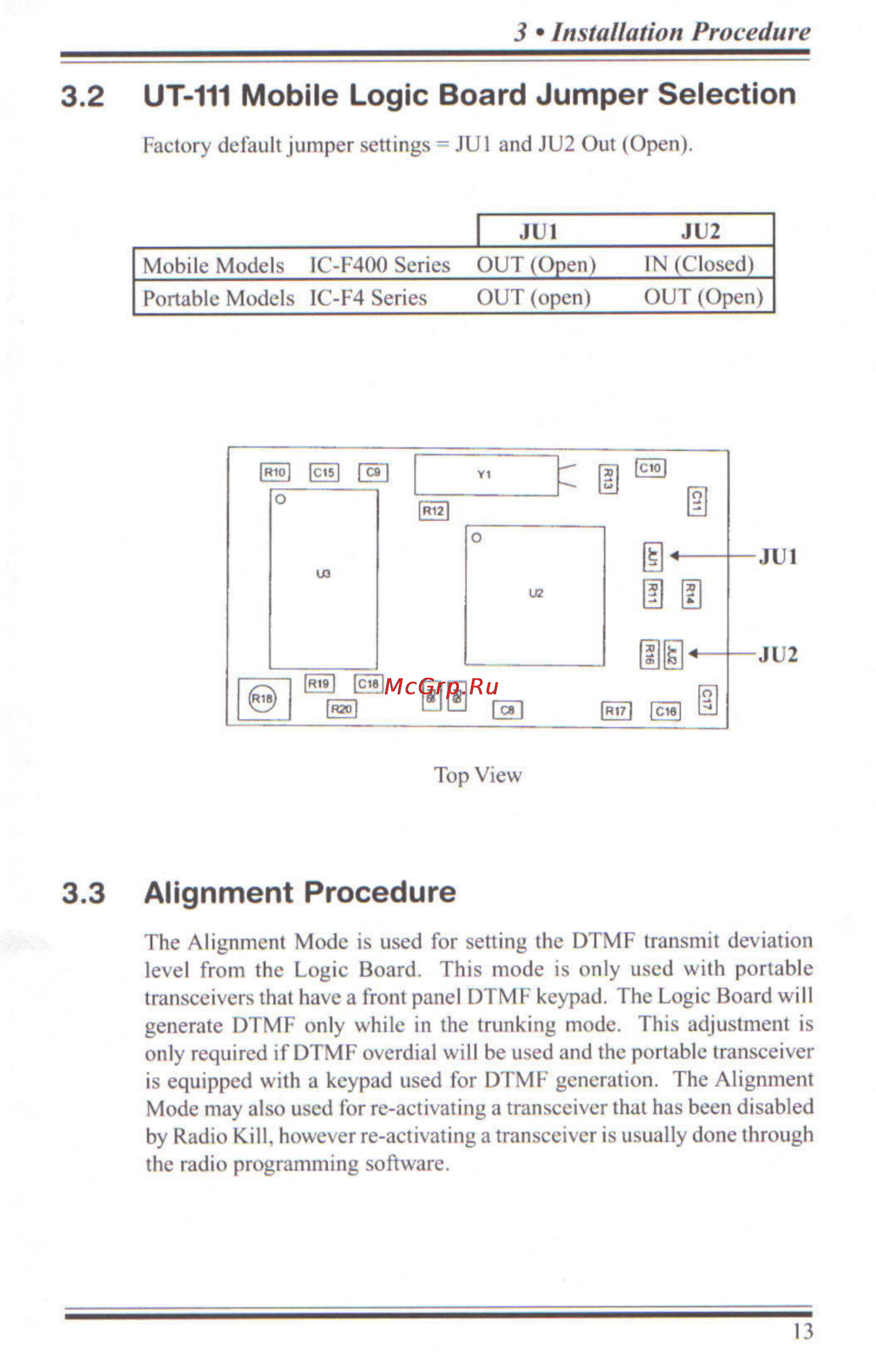

3 Installation Procedure 3 2 UT 111 Mobile Logic Board Jumper Selection Factory default jumper settings JU I and JU2 Out Open Top View 3 3 Alignment Procedure The Alignment Mode is used for setting the DTMF transmit deviation level from the Logic Board This mode is only used with portable transceivers that have a front panel DTMF keypad The Logic Board will generate DTMF only while in the trunking mode This adjustment is only required if DTMF overdial will be used and the portable transceiver is equipped with a keypad used for DTMF generation The Alignment Mode may also used for re activating a transceiver that has been disabled by Radio Kill however re activating a transceiver is usually done through the radio programming software 13
