Icom UT-111 [24/30] Programming

Содержание

• Icom inc 1
• Ut 111 1
• Contents 2
• Installation 1 2
• Introduction 2
• Operating modes 2
• Operation 3 2
• Programming 15 2
• Appendix a 25 3
• Ut 111 logic board programming 0 3
• Introduction 4
• Channel bank selection 6
• Operation 6
• Priority id codes 6
• Model ut 111 ltr logic board 7
• Priority receive id 7
• Selected group id 7
• Group scan id 8
• Operation 8
• Receive only groups id 8
• Block decode id 9
• Model ut lll ltr logic board 9
• Selective call dtmf decoder 9
• Operation 10
• Radio kill function 10
• Dtmf encoder 11
• Model ut 111 ltr logic board 11
• Transmit ani 11
• Busy channel lockout 12
• Opera ting modes 12
• Originating a dispatch call 12
• Receiving a dispatch call 12
• Interconnect calls 13
• Model ut 111 ltr logic board 13
• Figure 3 1 installation into the ic f3 f4 transceiver 14
• Installation into the ic f3 f4 series transceivers 14
• Installation procedure 14
• Alignment procedure 16
• Installation procedure 16
• Ut 111 mobile logic board jumper selection 16
• Model ut 111 ltr logic hoard 17
• Figure 1 18
• Portable radio programming 18
• Programming 18
• Radio programming 18
• All keys and display assignments arc made using the arrow keys to move the highlight to the desired key function and press enter a list of allowable functions appears note that some lists extend beyond the screen and will scroll to reveal other functions 19
• Figure 2 19
• Figure 2 represents a typical channel assignment there are several areas in this screen which require special attention in order for the ut 111 logic board to operate the trunking function must be enabled 19
• In addition one key must be assigned as the trunking group sw button so that a user can select a group finally one key must be assigned as bank up to allow the user to select the bank 19
• In the example the bank 20ch 12ch has been selected to support a 20 channel system this screen represents a configuration which has been tested for proper operation if you enable radio functions other than those shown extensive testing should be done to determine if the function selected is compatible with the ut 111 logic board 19
• Memory channel screen figure 2 19
• Model ut l ii ltr logic board 19
• ______________ 1 19
• Mobile radio programming 20
• Programming 20
• Figure 3 21
• Model ut 111 ltr logic board 21
• Figure 4 22
• Programming 22
• Figure 5 23
• Global features programming figure 5 23
• Model ut 111 ltr logic board 23
• Ut 111 logic board programming 23
• Programming 24
• Default settings for cs f3 for vhf radio the default file is f3 stl for uhf radio the default file is f4 stl 25
• Default settings for cs f300 for vhf radio the default is f300 for uhf radio the default is f400 25
• Figure 6 25
• Model ut 111 ltr logic board 25
• Note default settings for data polarity and data delay can be entered using the stl files provided with the cloning software select file load and enter to list the available files highlight the desired file and press enter 25
• Refer to figure 6 to view an example of the programming described in this section 25
• System features programming figure 6 25
• Programming 26
• Group codes 1 through 10 programming 27
• Model ut lll ltr logic board 27
• Appendix a 28
• Global features 28
• Orksheet 28
• Programming worksheet 28
• Rogrammin 28
• Home repeater 1 20 ________________ 29
• Mobile logic board 29
• Model ut 1i1 smartrun 29
• Priority receive id 1 250 29
• Receive block decode lower id 1 250 29
• Receive block decode upper id 1 250 29
• System data 29
• ___ ___ 29
• _________________system 1 area number 0 1 ___________________ 29
• Count on us 30
• Icom inc 30

Похожие устройства

• Ardo TLN 106 LW Инструкция по эксплуатации
• Xerox Travel Scanner 100 Инструкция по эксплуатации
• Icom IC-2GXAT Инструкция по эксплуатации
• Ardo TLN 106 LA Инструкция по эксплуатации
• Trendnet TPL-402E2K Инструкция по эксплуатации
• Icom IC-2SA Инструкция по эксплуатации
• Ardo TLN 106 LB Инструкция по эксплуатации
• Seagate STAK200 Инструкция по эксплуатации
• Icom IC-3SA Инструкция по эксплуатации
• Ardo WDN 1264 SW Инструкция по эксплуатации
• Logitech C270 Coral Fan Инструкция по эксплуатации
• Icom IC-703 Инструкция по эксплуатации
• Ardo WDN 1495 LW Инструкция по эксплуатации
• Samsung Galaxy Mini 2 GT-S6500 Yellow Инструкция по эксплуатации
• Icom IC-706MKIIG Инструкция по эксплуатации
• Ardo MWB23BX Инструкция по эксплуатации
• Nokia Lumia 610 Magenta Инструкция по эксплуатации
• Icom IC-746 Инструкция по эксплуатации
• Ardo MWB23FG Инструкция по эксплуатации
• Samsung Galaxy Ace 2 GT-I8160 Onyx Black Инструкция по эксплуатации

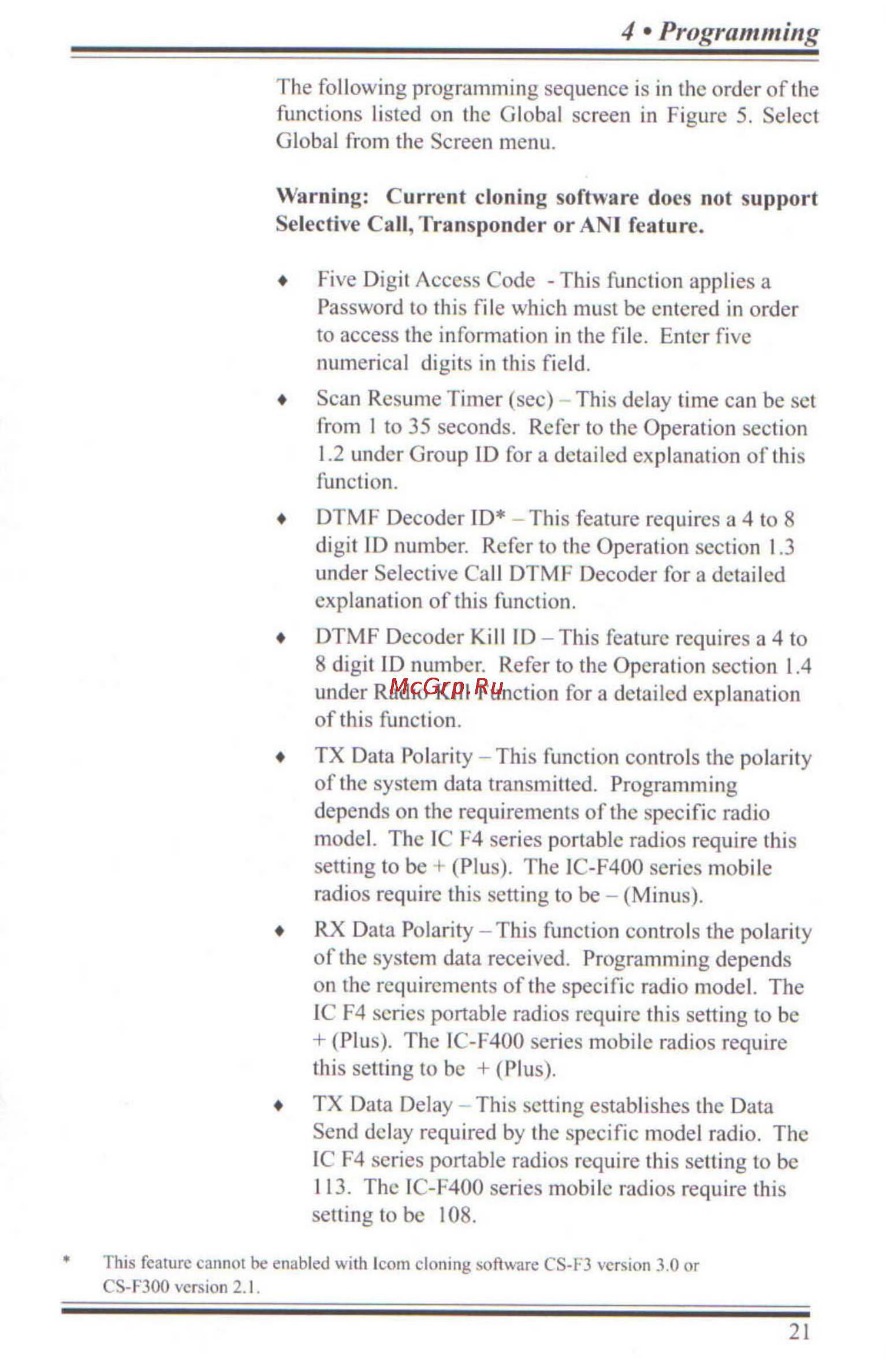

4 Programming The following programming sequence is in the order of the functions listed on the Global screen in Figure 5 Select Global from the Screen menu Warning Current cloning software does not support Selective Call Transponder or ANI feature Five Digit Access Code This function applies a Password to this file which must be entered in order to access the information in the file Enter five numerical digits in this field Scan Resume Timer sec This delay time can be set from I to 35 seconds Refer to the Operation section 1 2 under Group ID for a detailed explanation of this function DTMF Decoder ID This feature requires a 4 to 8 digit ID number Refer to the Operation section 1 3 under Selective Call DTMF Decoder for a detailed explanation of this function DTMF Decoder Kill ID This feature requires a 4 to 8 digit ID number Refer to the Operation section 1 4 under Radio Kill Function for a detailed explanation of this function TX Data Polarity This function controls the polarity of the system data transmitted Programming depends on the requirements of the specific radio model The IC F4 series portable radios require this setting to be Plus The 1C F400 series mobile radios require this setting to be Minus RX Data Polarity This function controls the polarity of the system data received Programming depends on the requirements of the specific radio model The IC F4 scries portable radios require this setting to be Plus The IC F400 series mobile radios require this setting to be Plus TX Data Delay This setting establishes the Data Send delay required by the specific model radio The IC F4 scries portable radios require this setting to be 113 The IC F400 series mobile radios require this setting to be 108 This feature cannot he enabled with Icom cloning software CS F3 version 3 0 or CS F300 version 2 1 21
