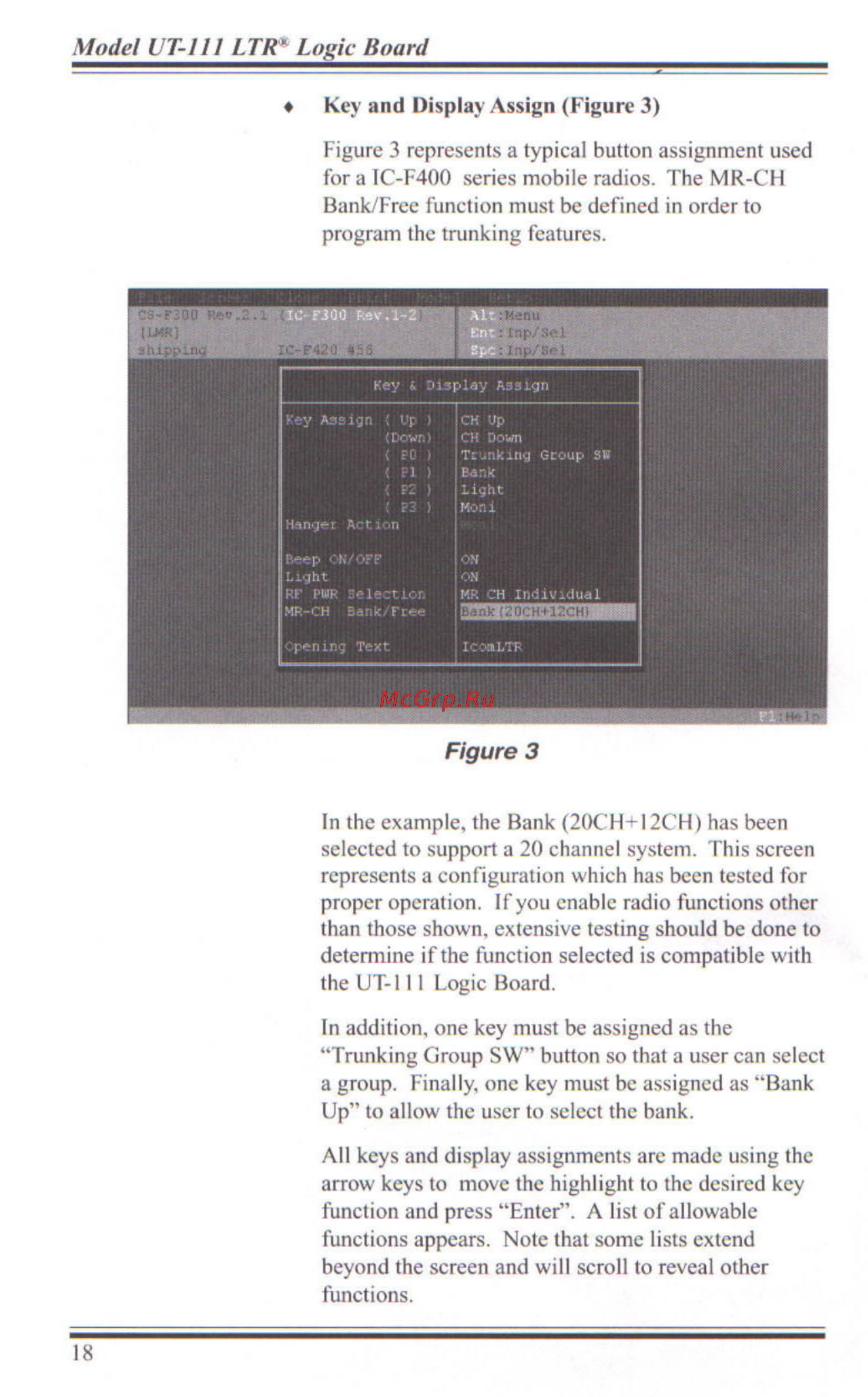

Model UT 111 LTR Logic Board Key and Display Assign Figure 3 Figure 3 represents a typical button assignment used for a IC F400 series mobile radios The MR CH Bank Free function must be defined in order to program the trunking features Figure 3 In the example the Bank 20CH 12CH has been selected to support a 20 channel system This screen represents a configuration which has been tested for proper operation If you enable radio functions other than those shown extensive testing should be done to determine if the function selected is compatible with the UT 111 Logic Board In addition one key must be assigned as the Trunking Group SW button so that a user can select a group Finally one key must be assigned as Bank Up to allow the user to select the bank All keys and display assignments are made using the arrow keys to move the highlight to the desired key function and press Enter A list of allowable functions appears Note that some lists extend beyond the screen and will scroll to reveal other functions 18
