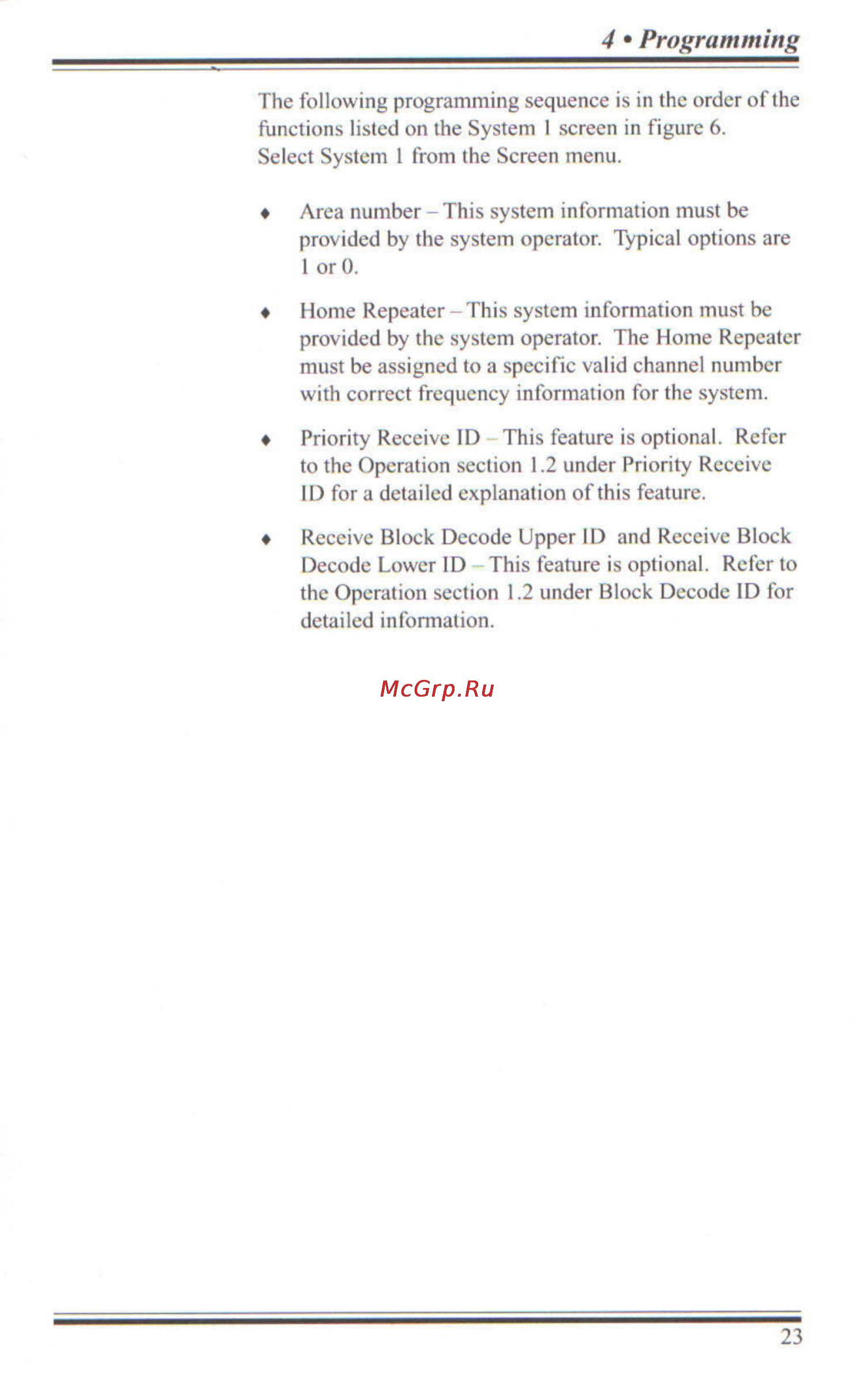

4 Programming The following programming sequence is in the order of the functions listed on the System I screen in figure 6 Select System 1 from the Screen menu Area number This system information must be provided by the system operator Typical options are 1 or 0 Home Repeater This system information must be provided by the system operator The Home Repeater must be assigned to a specific valid channel number with correct frequency information for the system Priority Receive ID This feature is optional Refer to the Operation section 1 2 under Priority Receive ID for a detailed explanation of this feature Receive Block Decode Upper ID and Receive Block Decode Lower ID This feature is optional Refer to the Operation section 1 2 under Block Decode ID for detailed information 23
