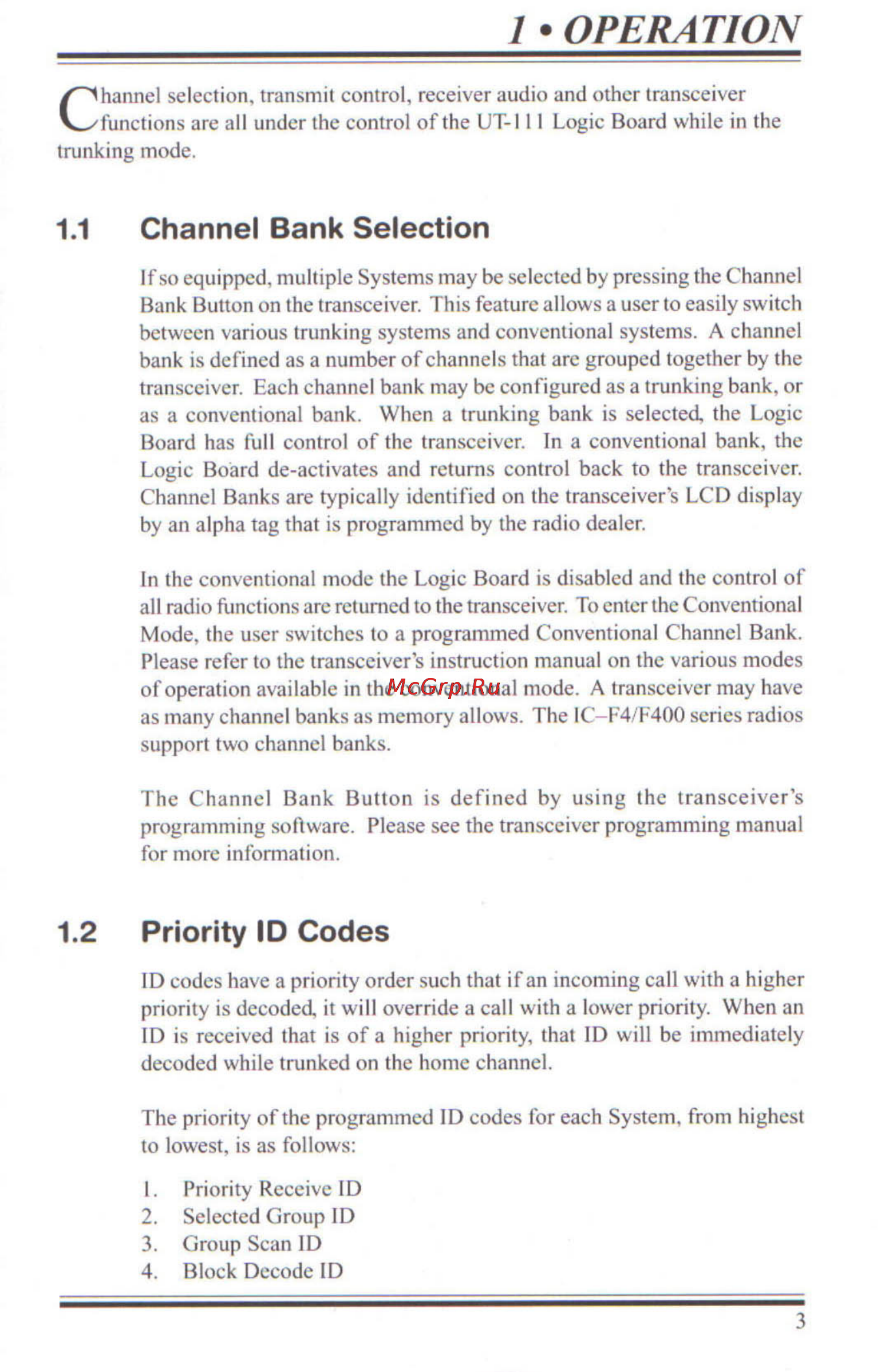

1 OPERATION C hannel selection transmit control receiver audio and other transceiver functions are all under the control of the UT 11 I Logic Board while in the trunking mode 1 1 Channel Bank Selection If so equipped multiple Systems may be selected by pressing the Channel Bank Button on the transceiver This feature allows a user to easily switch between various trunking systems and conventional systems A channel bank is defined as a number of channels that are grouped together by the transceiver Each channel bank may be configured as a trunking bank or as a conventional bank When a trunking bank is selected the Logic Board has full control of the transceiver In a conventional bank the Logic Board de activates and returns control back to the transceiver Channel Banks are typically identified on the transceiver s LCD display by an alpha tag that is programmed by the radio dealer In the conventional mode the Logic Board is disabled and the control of all radio functions arc returned to the transceiver To enter the Conventional Mode the user switches to a programmed Conventional Channel Bank Please refer to the transceiver s instruction manual on the various modes of operation available in the conventional mode A transceiver may have as many channel banks as memory allows The IC F4 F400 series radios support two channel banks The Channel Bank Button is defined by using the transceiver s programming software Please see the transceiver programming manual for more information 1 2 Priority ID Codes ID codes have a priority order such that if an incoming call with a higher priority is decoded it will override a call with a lower priority When an ID is received that is of a higher priority that ID will be immediately decoded while trunked on the home channel The priority of the programmed ID codes for each System from highest to lowest is as follows I Priority Receive ID 2 Selected Group ID 3 Group Scan ID 4 Block Decode ID 3
