Icom UT-111 [17/30] Model ut 111 ltr logic hoard

Содержание

• Icom inc 1
• Ut 111 1
• Contents 2
• Installation 1 2
• Introduction 2
• Operating modes 2
• Operation 3 2
• Programming 15 2
• Appendix a 25 3
• Ut 111 logic board programming 0 3
• Introduction 4
• Channel bank selection 6
• Operation 6
• Priority id codes 6
• Model ut 111 ltr logic board 7
• Priority receive id 7
• Selected group id 7
• Group scan id 8
• Operation 8
• Receive only groups id 8
• Block decode id 9
• Model ut lll ltr logic board 9
• Selective call dtmf decoder 9
• Operation 10
• Radio kill function 10
• Dtmf encoder 11
• Model ut 111 ltr logic board 11
• Transmit ani 11
• Busy channel lockout 12
• Opera ting modes 12
• Originating a dispatch call 12
• Receiving a dispatch call 12
• Interconnect calls 13
• Model ut 111 ltr logic board 13
• Figure 3 1 installation into the ic f3 f4 transceiver 14
• Installation into the ic f3 f4 series transceivers 14
• Installation procedure 14
• Alignment procedure 16
• Installation procedure 16
• Ut 111 mobile logic board jumper selection 16
• Model ut 111 ltr logic hoard 17
• Figure 1 18
• Portable radio programming 18
• Programming 18
• Radio programming 18
• All keys and display assignments arc made using the arrow keys to move the highlight to the desired key function and press enter a list of allowable functions appears note that some lists extend beyond the screen and will scroll to reveal other functions 19
• Figure 2 19
• Figure 2 represents a typical channel assignment there are several areas in this screen which require special attention in order for the ut 111 logic board to operate the trunking function must be enabled 19
• In addition one key must be assigned as the trunking group sw button so that a user can select a group finally one key must be assigned as bank up to allow the user to select the bank 19
• In the example the bank 20ch 12ch has been selected to support a 20 channel system this screen represents a configuration which has been tested for proper operation if you enable radio functions other than those shown extensive testing should be done to determine if the function selected is compatible with the ut 111 logic board 19
• Memory channel screen figure 2 19
• Model ut l ii ltr logic board 19
• ______________ 1 19
• Mobile radio programming 20
• Programming 20
• Figure 3 21
• Model ut 111 ltr logic board 21
• Figure 4 22
• Programming 22
• Figure 5 23
• Global features programming figure 5 23
• Model ut 111 ltr logic board 23
• Ut 111 logic board programming 23
• Programming 24
• Default settings for cs f3 for vhf radio the default file is f3 stl for uhf radio the default file is f4 stl 25
• Default settings for cs f300 for vhf radio the default is f300 for uhf radio the default is f400 25
• Figure 6 25
• Model ut 111 ltr logic board 25
• Note default settings for data polarity and data delay can be entered using the stl files provided with the cloning software select file load and enter to list the available files highlight the desired file and press enter 25
• Refer to figure 6 to view an example of the programming described in this section 25
• System features programming figure 6 25
• Programming 26
• Group codes 1 through 10 programming 27
• Model ut lll ltr logic board 27
• Appendix a 28
• Global features 28
• Orksheet 28
• Programming worksheet 28
• Rogrammin 28
• Home repeater 1 20 ________________ 29
• Mobile logic board 29
• Model ut 1i1 smartrun 29
• Priority receive id 1 250 29
• Receive block decode lower id 1 250 29
• Receive block decode upper id 1 250 29
• System data 29
• ___ ___ 29
• _________________system 1 area number 0 1 ___________________ 29
• Count on us 30
• Icom inc 30

Похожие устройства

• Ardo TLN 106 LW Инструкция по эксплуатации
• Xerox Travel Scanner 100 Инструкция по эксплуатации
• Icom IC-2GXAT Инструкция по эксплуатации
• Ardo TLN 106 LA Инструкция по эксплуатации
• Trendnet TPL-402E2K Инструкция по эксплуатации
• Icom IC-2SA Инструкция по эксплуатации
• Ardo TLN 106 LB Инструкция по эксплуатации
• Seagate STAK200 Инструкция по эксплуатации
• Icom IC-3SA Инструкция по эксплуатации
• Ardo WDN 1264 SW Инструкция по эксплуатации
• Logitech C270 Coral Fan Инструкция по эксплуатации
• Icom IC-703 Инструкция по эксплуатации
• Ardo WDN 1495 LW Инструкция по эксплуатации
• Samsung Galaxy Mini 2 GT-S6500 Yellow Инструкция по эксплуатации
• Icom IC-706MKIIG Инструкция по эксплуатации
• Ardo MWB23BX Инструкция по эксплуатации
• Nokia Lumia 610 Magenta Инструкция по эксплуатации
• Icom IC-746 Инструкция по эксплуатации
• Ardo MWB23FG Инструкция по эксплуатации
• Samsung Galaxy Ace 2 GT-I8160 Onyx Black Инструкция по эксплуатации

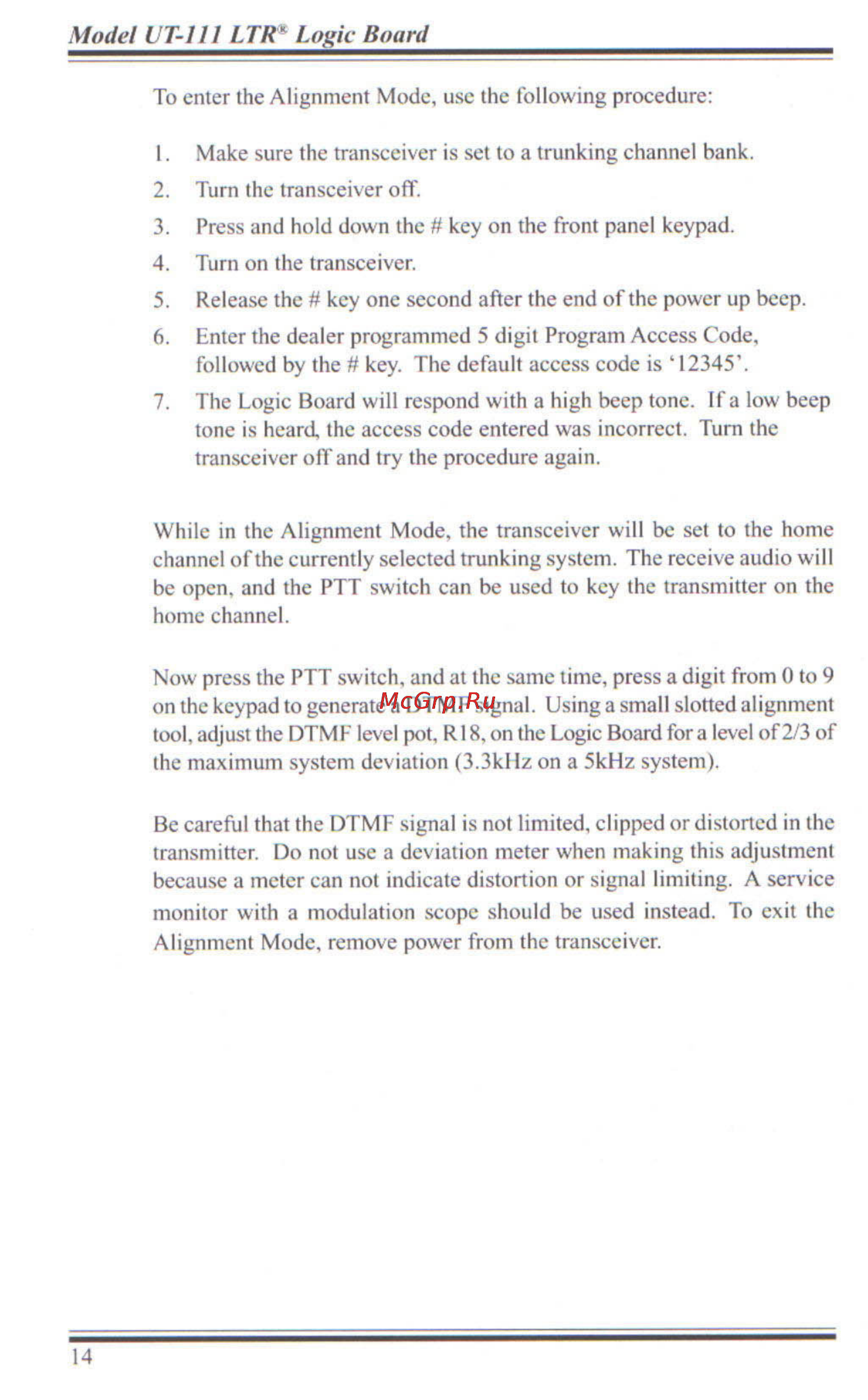

Model UT 111 LTR Logic Hoard To enter the Alignment Mode use the following procedure I Make sure the transceiver is set to a trunking channel bank 2 Turn the transceiver oft 3 Press and hold down the key on the front panel keypad 4 Turn on the transceiver 5 Release the key one second after the end of the power up beep 6 Enter the dealer programmed 5 digit Program Access Code followed by the key The default access code is 12345 7 The Logic Board will respond with a high beep tone If a low beep tone is heard the access code entered was incorrect Tum the transceiver off and try the procedure again While in the Alignment Mode the transceiver will be set to the home channel of the currently selected trunking system The receive audio will be open and the PTT switch can be used to key the transmitter on the home channel Now press the PTT switch and at the same time press a digit from 0 to 9 on the keypad to generate a DTMF signal Using a small slotted alignment tool adjust the DTMF level pot R18 on the Logic Board for a level of 2 3 of the maximum system deviation 3 3kHz on a 5kHz system Be careful that the DTMF signal is not limited clipped or distorted in the transmitter Do not use a deviation meter when making this adjustment because a meter can not indicate distortion or signal limiting A service monitor with a modulation scope should be used instead To exit the Alignment Mode remove power from the transceiver 14
