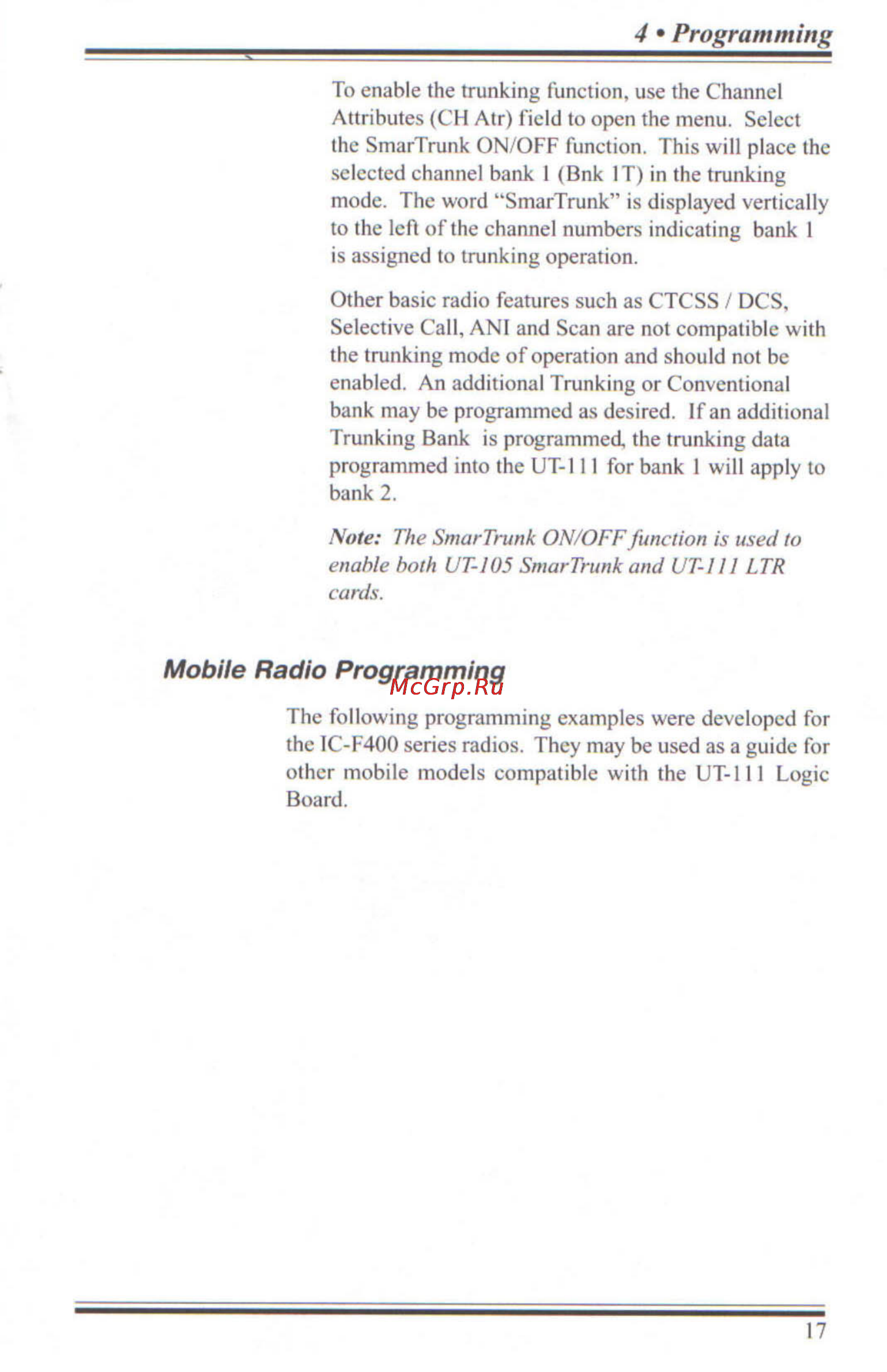

4 Programming To enable the trunking function use the Channel Attributes CH Atr field to open the menu Select the SmarTrunk ON OFF function This will place the selected channel bank 1 Bnk IT in the trunking mode The word SmarTrunk is displayed vertically to the left of the channel numbers indicating bank I is assigned to trunking operation Other basic radio features such as CTCSS I DCS Selective Call ANI and Scan are not compatible with the trunking mode of operation and should not be enabled An additional Trunking or Conventional bank may be programmed as desired If an additional Trunking Bank is programmed the trunking data programmed into the UT 111 for bank I will apply to bank 2 Note The SmarTrunk ON OFFfunction is used to enable both UT 105 SmarTrunk and UT 111 LTR cards Mobile Radio Programming The following programming examples were developed for the IC F400 series radios They may be used as a guide for other mobile models compatible with the UT 111 Logic Board 17
