8 | Electrical installation
Installer reference guide
102
ERLA03DAV3 + EHFH03S18DJ3V
Daikin Altherma 3 R F
4P596806-1A – 2020.05
A
Y17
B
A
B
7 9
X2M
A4P
Y1YC
X1M
ab
a Installation of EKRP1HBAA is required.
b Prewiring between X2M/7+9 and Q1L (=thermal protector backup heater). Do NOT change.
4 Fix the cable with cable ties to the cable tie mountings.
8.3.8 To connect the space cooling/heating ON/OFF output
INFORMATION
Cooling is only applicable in case a conversion kit (EKHVCONV3) is installed.
Wires: (2+1)×0.75mm²
Maximum load: 0.3A, 250VAC
—
1 Open the service cover. See "6.2.2To open the outdoor unit"[453].
2 Open the following (see "6.2.4To open the indoor unit"[454]):
1 Top panel
1
2
3
2 Upper front panel
3 Upper switch box cover

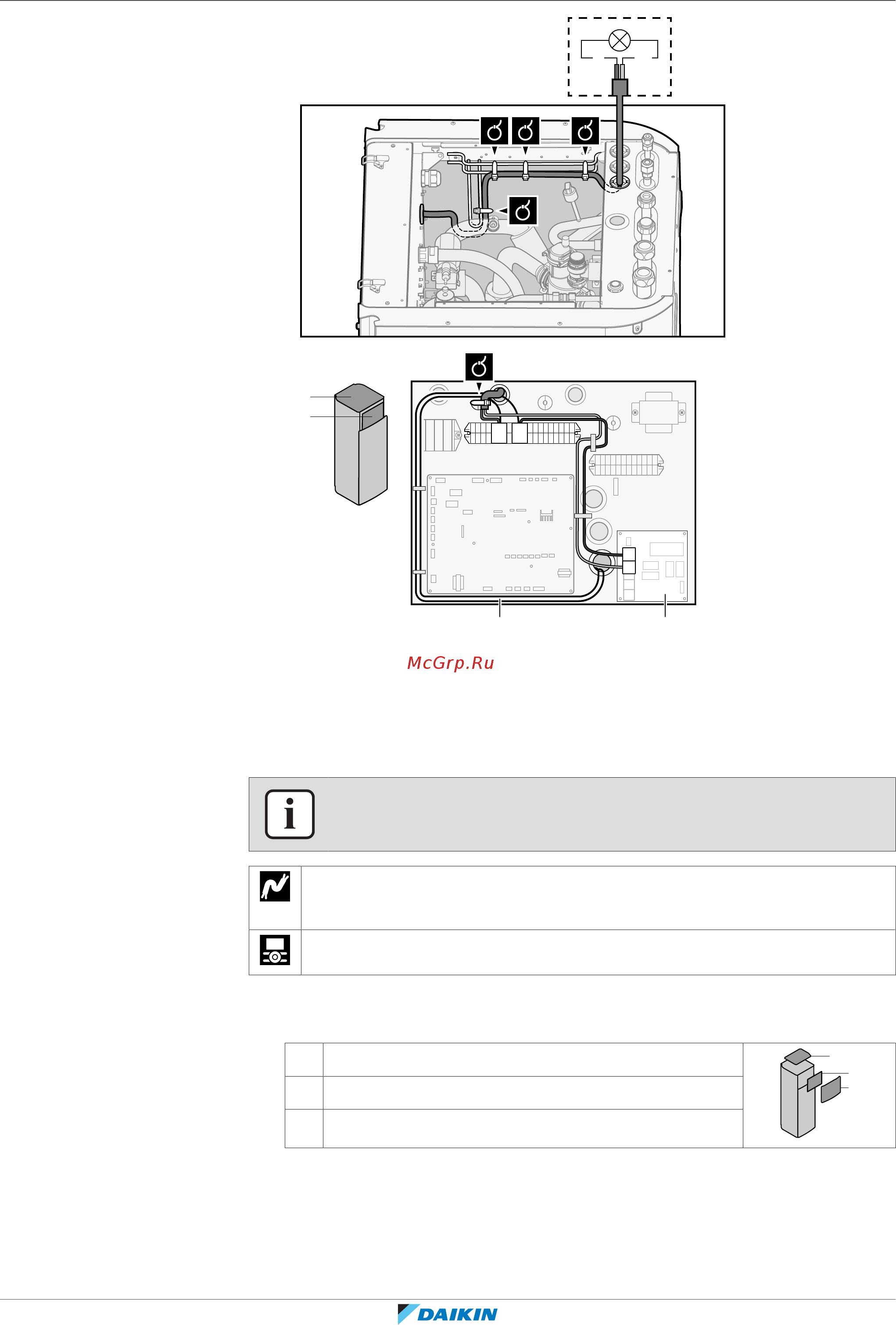

3 Connect the space cooling/heating ON/OFF output cable to the appropriate
terminals as shown in the illustration below.
